Racines

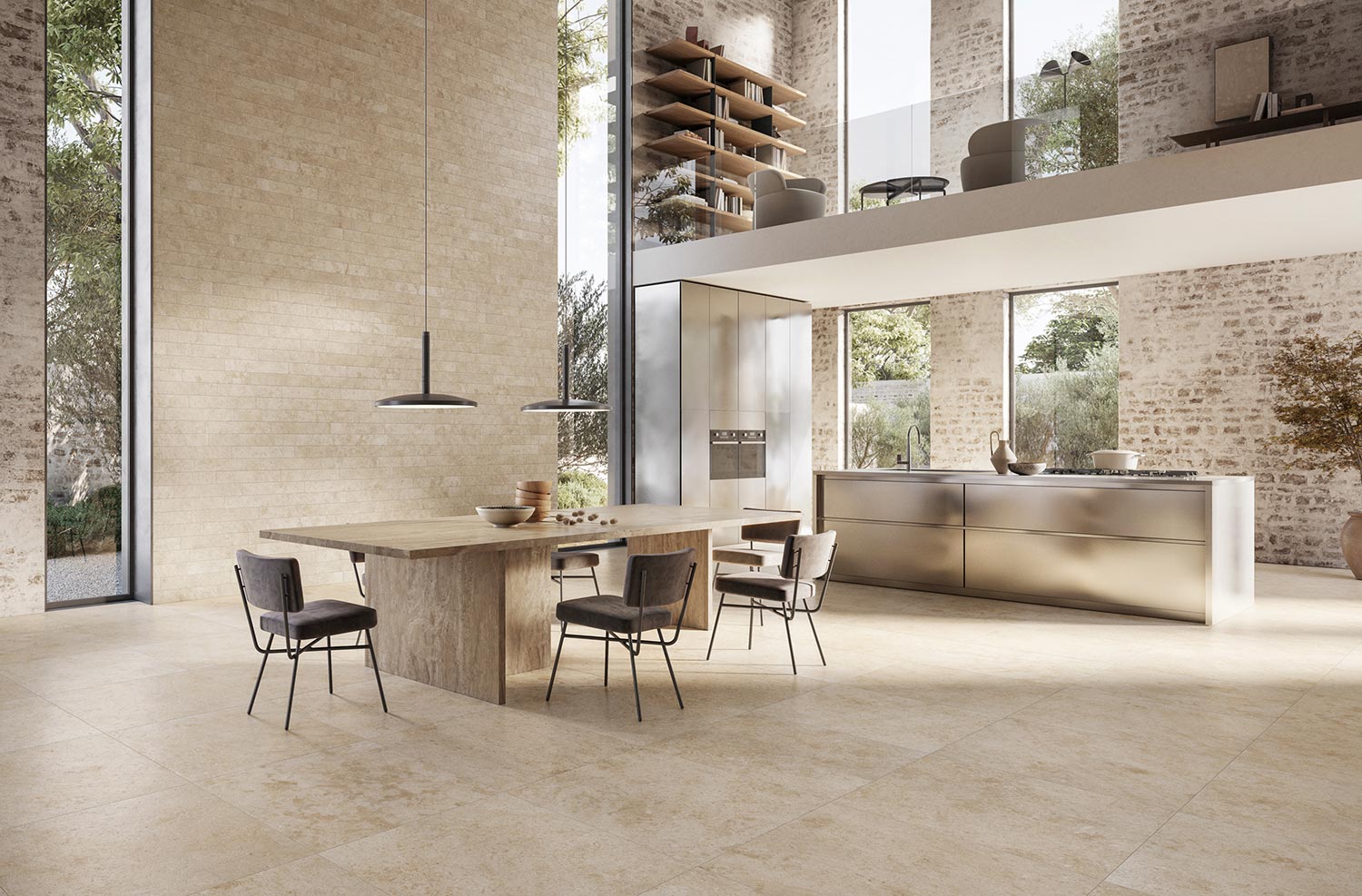

Racines finds its inspiration in two traditional French stones that are stylistically different, yet so close when it comes to their geological nature. The uniqueness of its surface is based on the accurate reproduction that includes all details such as shades, inclusions and other small superficial imperfections. This collection has been designed with a sincere admiration for nature and with respect for the traditional methods of stone processing. This is why this ceramic stone almost appears as a tribute rather than a mere imitation.
-
Effects
- Stone
-
Types
- Interior Floor
- Outdoor Floor
- Wall
-
Technologies
- Coloured body porcelain stoneware
-
Sizes
- 60x90 cm thk. 20 mm
- 80x80 cm thk. 20 mm
- 80x80 cm thk. 9 mm
- 60x60 cm thk. 20 mm
- 60x60 cm thk. 9 mm
- 30x60 cm thk. 9 mm
- 10x60 cm thk. 9 mm
- 20x20 cm thk. 9 mm
- Comp. Mod. thk. 20 mm
- Comp. Mod. thk. 9 mm
-
Available in
-
Colours
-
Certifications
-
Downloads
Tiles
-
Racines Clair Bord Vieilli
20x20 cm
8"x8"rectified J560 r10 - A+B -
Racines Clair
80x80 cm
32"x32"rectified J040 U4 P3 E3 C2 - r10 - A+B 60x60 cm
24"x24"rectified J208 U4 P4 E3 C2 - r10 - A+B 30x60 cm
12"x24"rectified J587 U4 P3 E3 C2 - r10 - A+B 10x60 cm
4"x24"rectified J567 r10 - A+B -
Racines Clair Multi-format Int.
Comp. Mod. rectified J562 r10 - A+B -
Racines Clair structured anti-slip
60x90 cm
24"x36"rectified Outdoor Plus 20mm J036 r11 - A+B+C 80x80 cm
32"x32"rectified Outdoor Plus 20mm J547 r11 - A+B+C 60x60 cm
24"x24"rectified Outdoor Plus 20mm J209 U4 P3 E3 C2 F+ - r11 - A+B+C -
Racines Doré structured anti-slip
60x90 cm
24"x36"rectified Outdoor Plus 20mm J037 r11 - A+B+C 80x80 cm
32"x32"rectified Outdoor Plus 20mm J548 r11 - A+B+C 60x60 cm
24"x24"rectified Outdoor Plus 20mm J210 U4 P3 E3 C2 F+ - r11 - A+B+C -
Racines Clair Multi-format Ext. structured anti-slip
Comp. Mod. rectified Outdoor Plus 20mm J565 r11 - A+B+C -
Racines Doré Multi-format Ext. structured anti-slip
Comp. Mod. rectified Outdoor Plus 20mm J566 r11 - A+B+C

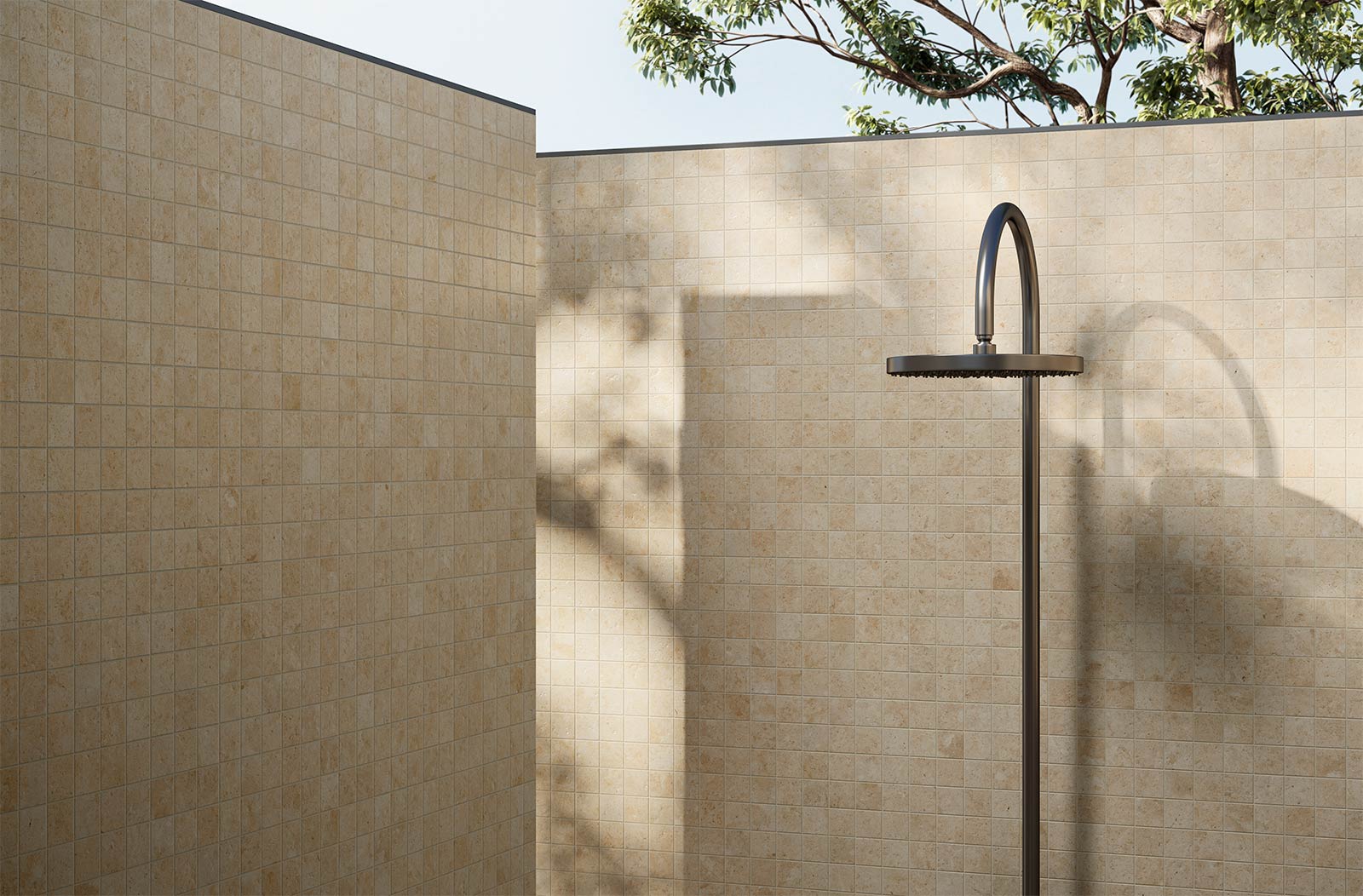

Mosaics
-

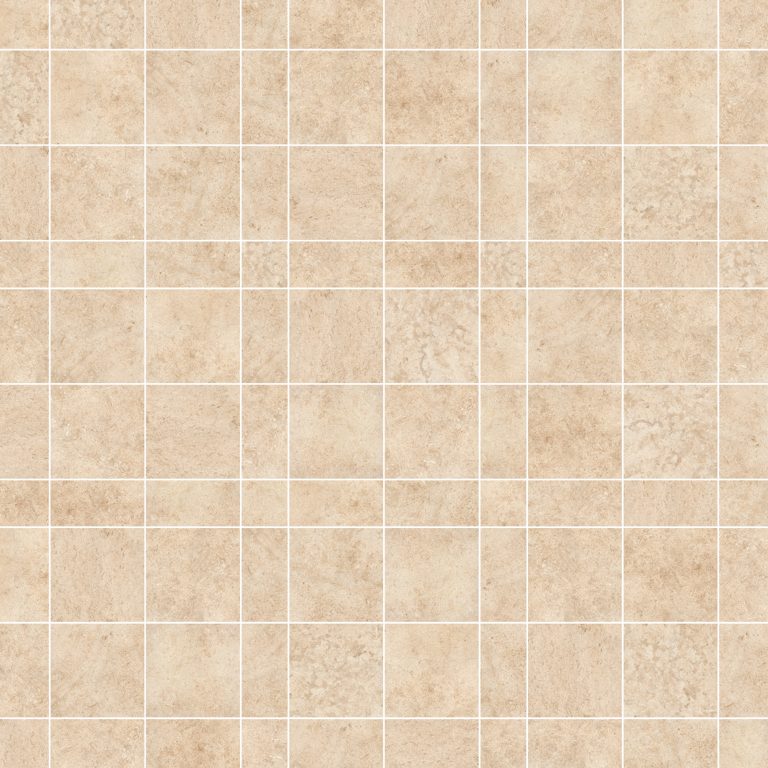

Racines Clair Mos 5x5
30x30 cm
12"x12"rectified J568 r10 - A+B
Modular compositions
Racines th. 9mm (J562)
The three formats composing the module J562 are packaged in single-format boxes containing 4 pcs / box for size 60×60, 6 pcs / box for 30×60 and 6 pcs / box for 30×30. Attention: this modular composition is to pose using joints of 2mm.
Therefore, in order to respect the proportions between the three formats, the minimum order quantity could be higher than the desired one.
The correspondence between the surface of the room to be covered and the minimum order quantity, can be found in the table below:
| Surface to be tiled | sqm | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Minimum quantity to order | sqm | 3,06 | 3,06 | 4,50 | 6,12 | 6,12 | 7,56 | 7,56 | 10,62 | 10,62 | 10,62 |
| Surface to be tiled | sqm | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| Minimum quantity to order | sqm | 12,06 | 13,68 | 15,12 | 15,12 | 15,12 | 18,18 | 18,18 | 19,62 | 21,24 | 21,24 |
| Surface to be tiled | sqm | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 |
| Minimum quantity to order | sqm | 22,68 | 22,68 | 25,74 | 25,74 | 25,74 | 27,18 | 28,80 | 30,24 | 30,24 | 30,24 |
| Surface to be tiled | sqm | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 40 |
| Minimum quantity to order | sqm | 33,30 | 33,30 | 34,74 | 34,74 | 36,36 | 37,80 | 37,80 | 40,86 | 40,86 | 40,86 |
| Surface to be tiled | sqm | 41 | 42 | 43 | 44 | 45 | 46 | 47 | 48 | 49 | 50 |
| Minimum quantity to order | sqm | 42,30 | 43,92 | 45,36 | 45,36 | 45,36 | 48,42 | 48,42 | 49,86 | 49,86 | 51,48 |
| Surface to be tiled | sqm | 51 | 52 | 53 | 54 | 55 | 56 | 57 | 58 | 59 | 60 |
| Minimum quantity to order | sqm | 52,92 | 52,92 | 55,98 | 55,98 | 55,98 | 57,42 | 59,04 | 60,48 | 60,48 | 60,48 |
| Surface to be tiled | sqm | 61 | 62 | 63 | 64 | 65 | 66 | 67 | 68 | 69 | 70 |
| Minimum quantity to order | sqm | 63,54 | 63,54 | 63,54 | 64,98 | 66,60 | 68,04 | 68,04 | 68,04 | 71,10 | 71,10 |
| Surface to be tiled | sqm | 71 | 72 | 73 | 74 | 75 | 76 | 77 | 78 | 79 | 80 |
| Minimum quantity to order | sqm | 72,54 | 74,16 | 74,16 | 75,60 | 75,60 | 78,66 | 78,66 | 78,66 | 80,10 | 81,72 |
| Surface to be tiled | sqm | 81 | 82 | 83 | 84 | 85 | 86 | 87 | 88 | 89 | 90 |
| Minimum quantity to order | sqm | 83,16 | 83,16 | 83,16 | 86,22 | 86,22 | 87,66 | 89,28 | 89,28 | 90,72 | 90,72 |
| Surface to be tiled | sqm | 91 | 92 | 93 | 94 | 95 | 96 | 97 | 98 | 99 | 100 |
| Minimum quantity to order | sqm | 93,78 | 93,78 | 93,78 | 95,22 | 96,84 | 98,28 | 98,28 | 98,28 | 101,34 | 101,34 |

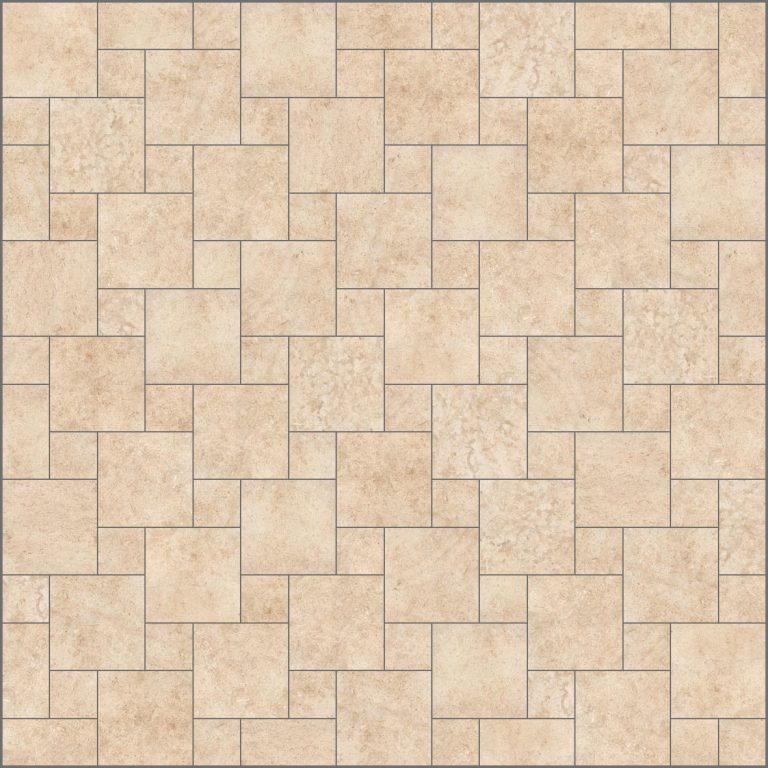

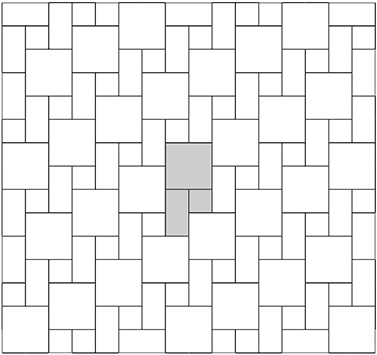

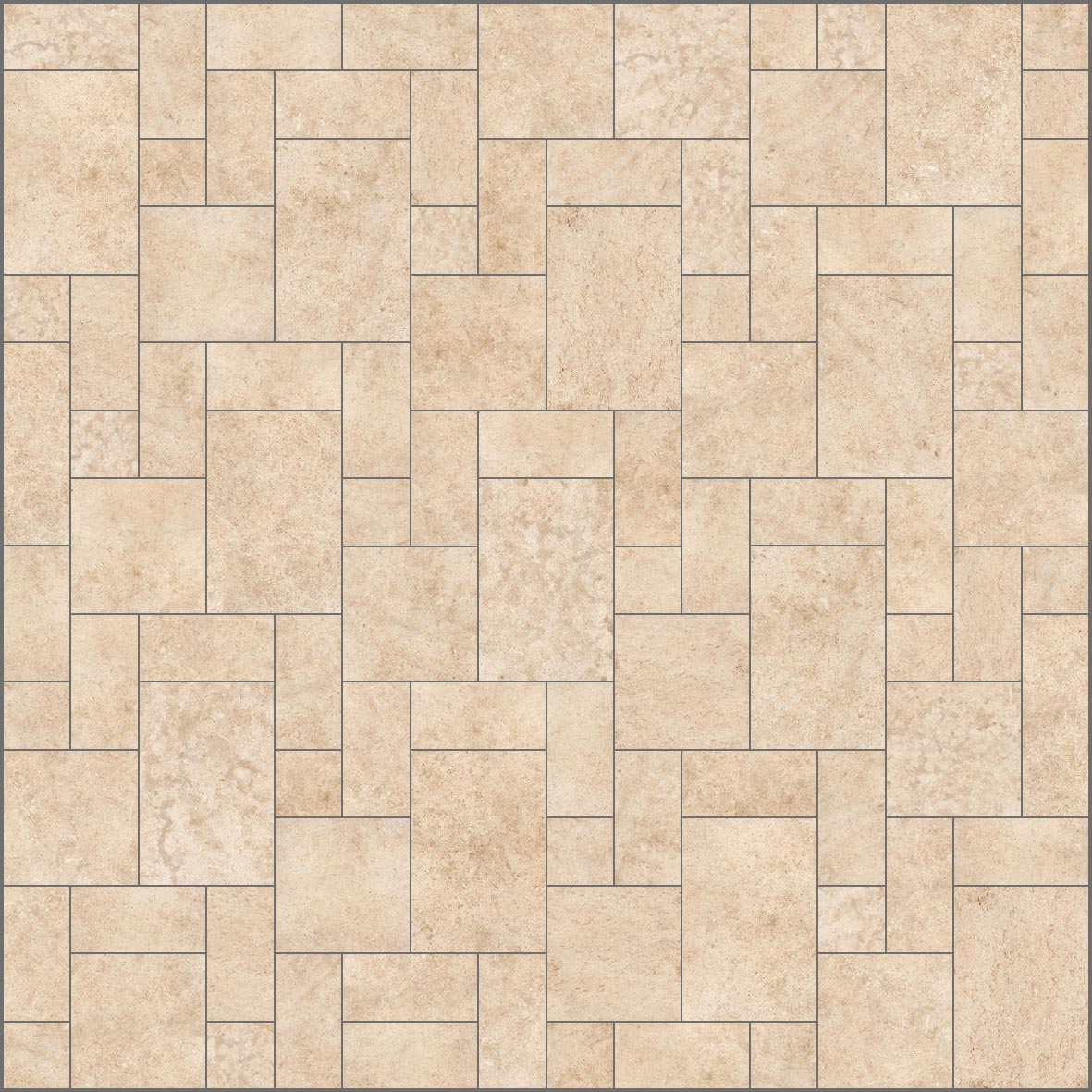

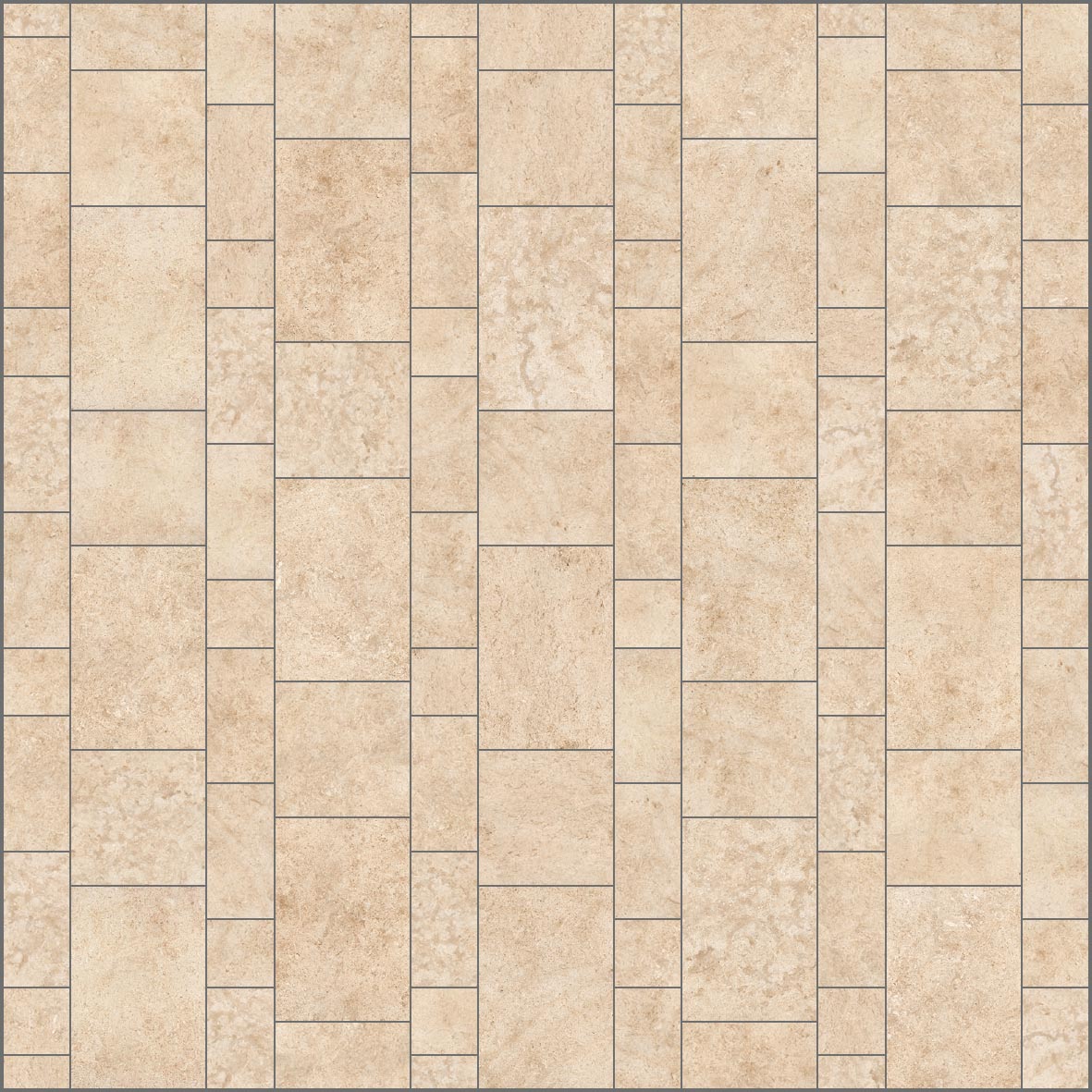

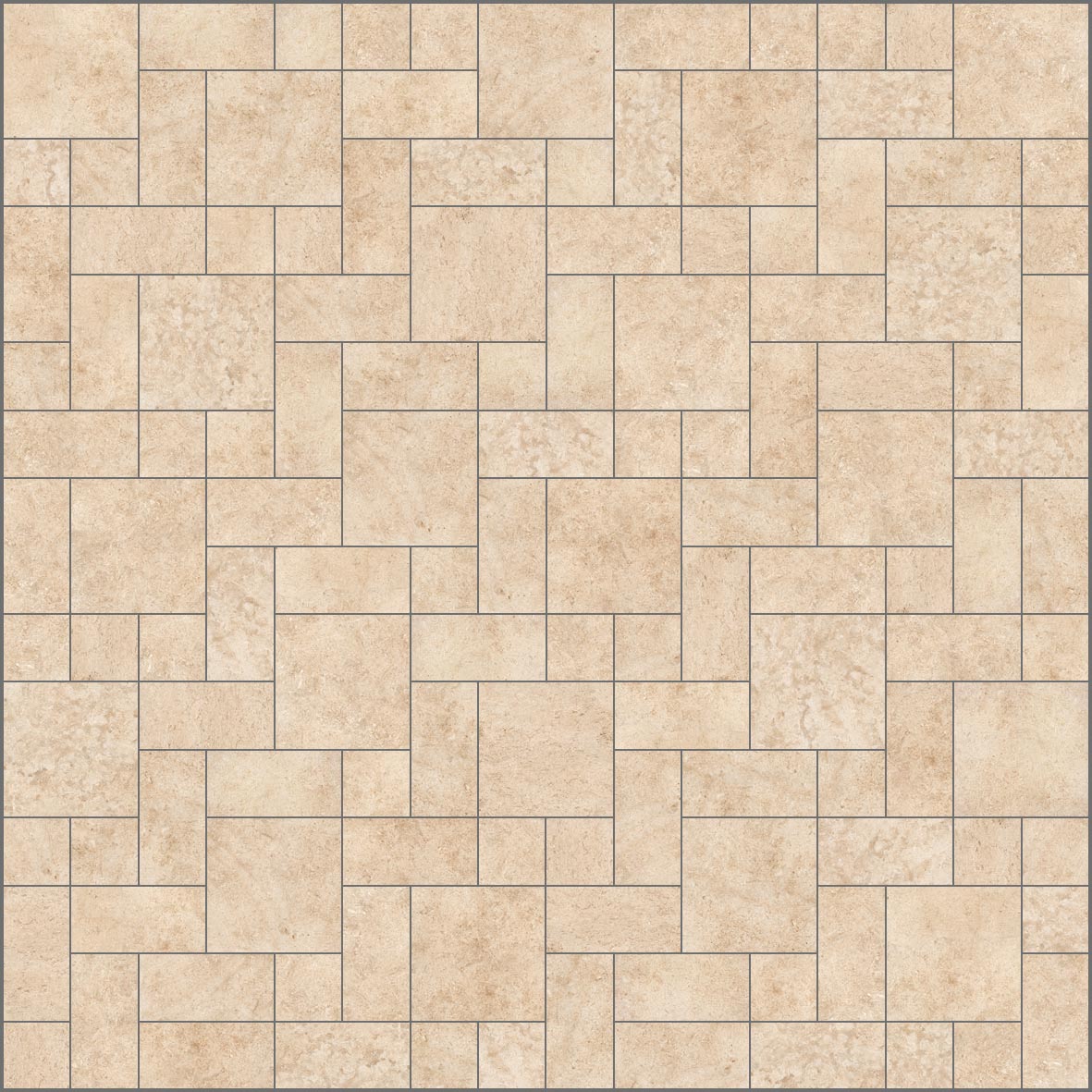

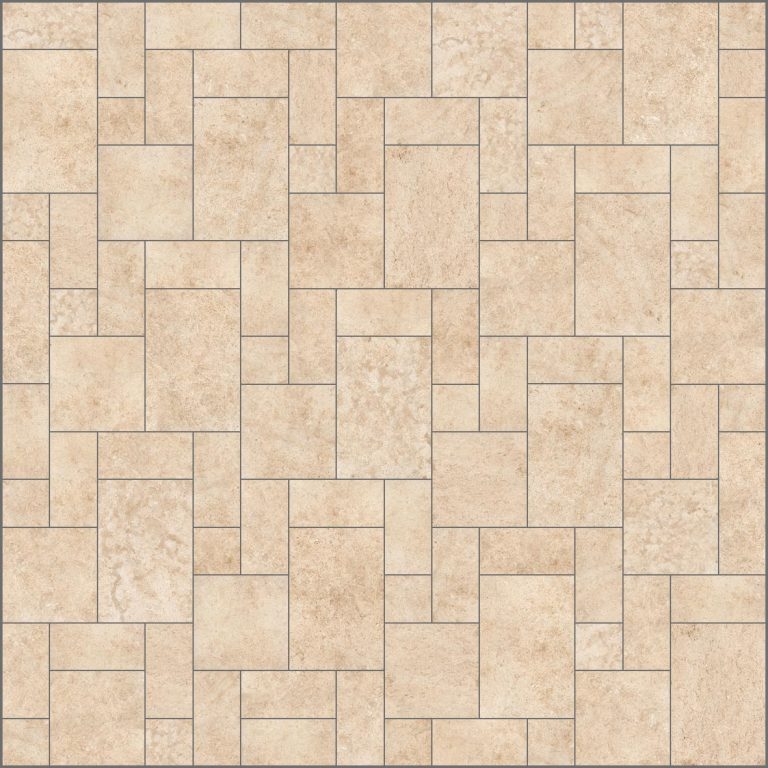

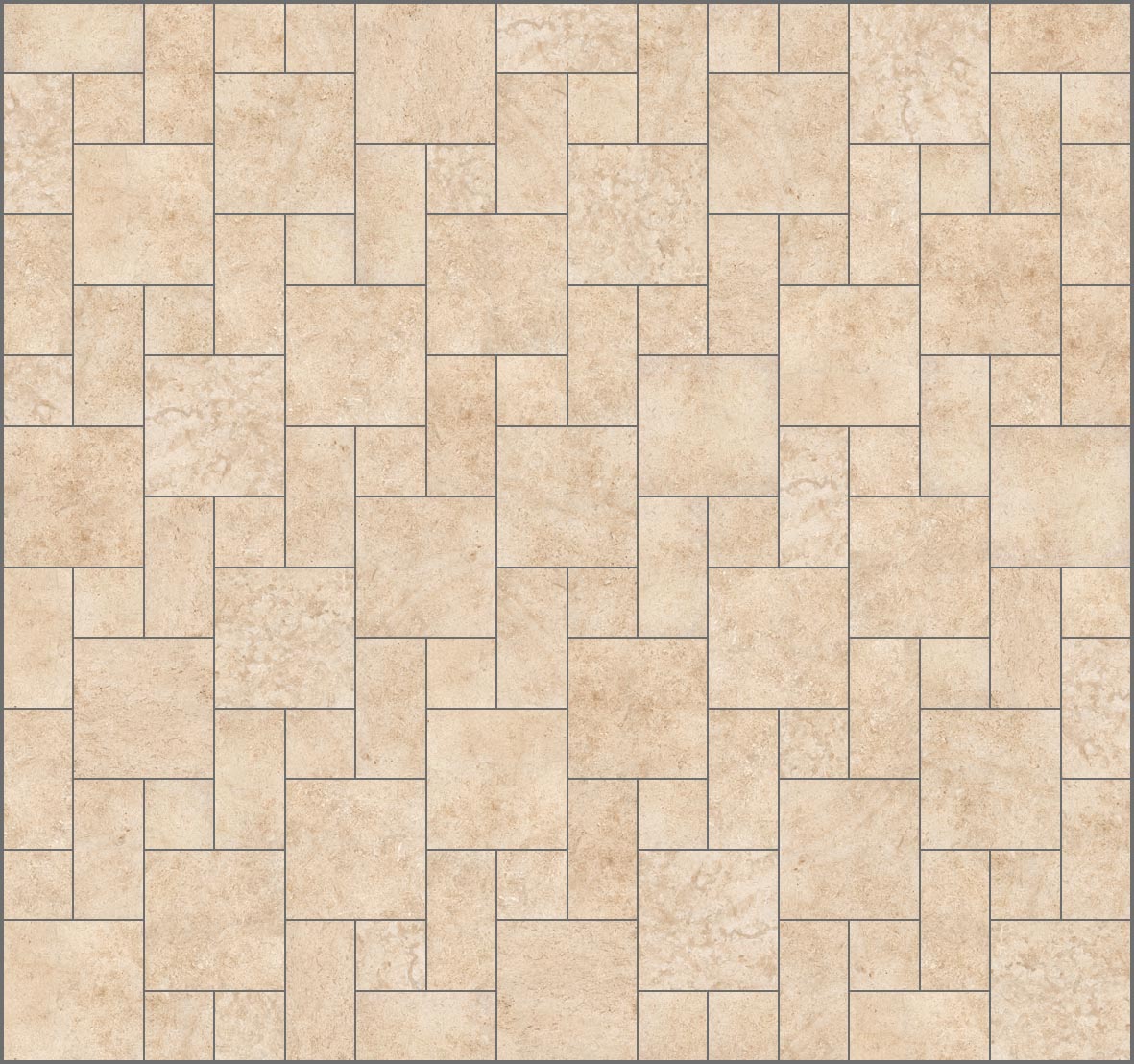

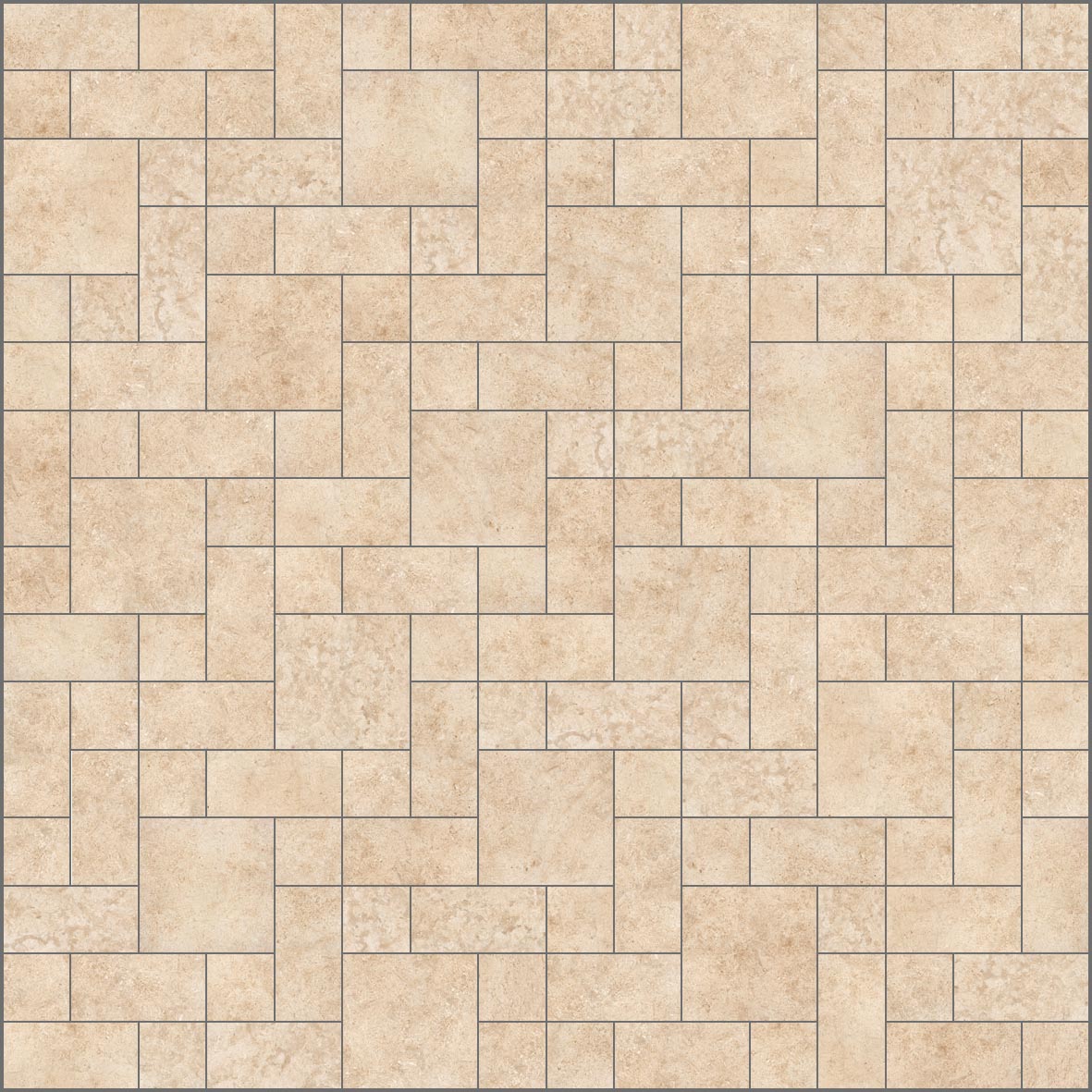

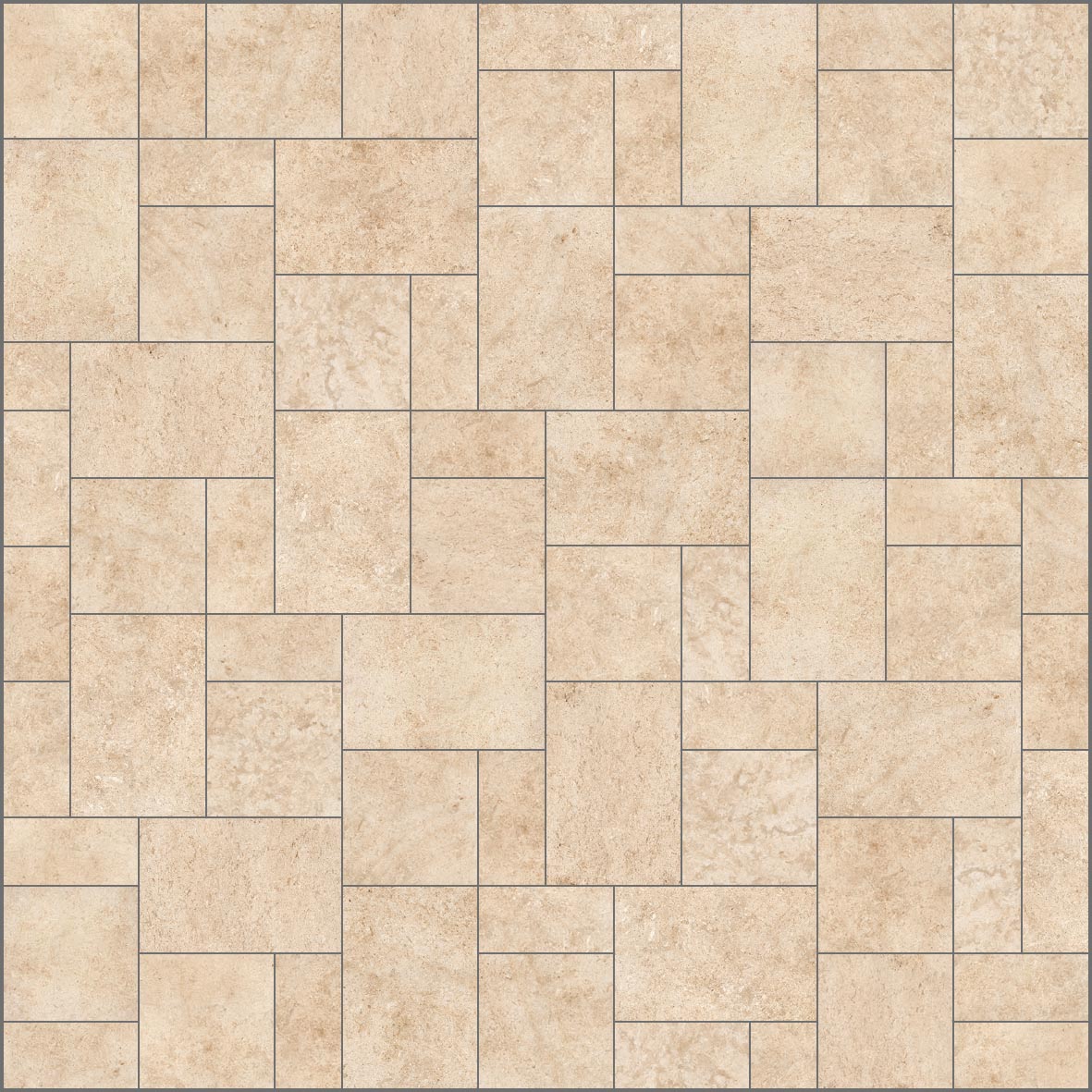

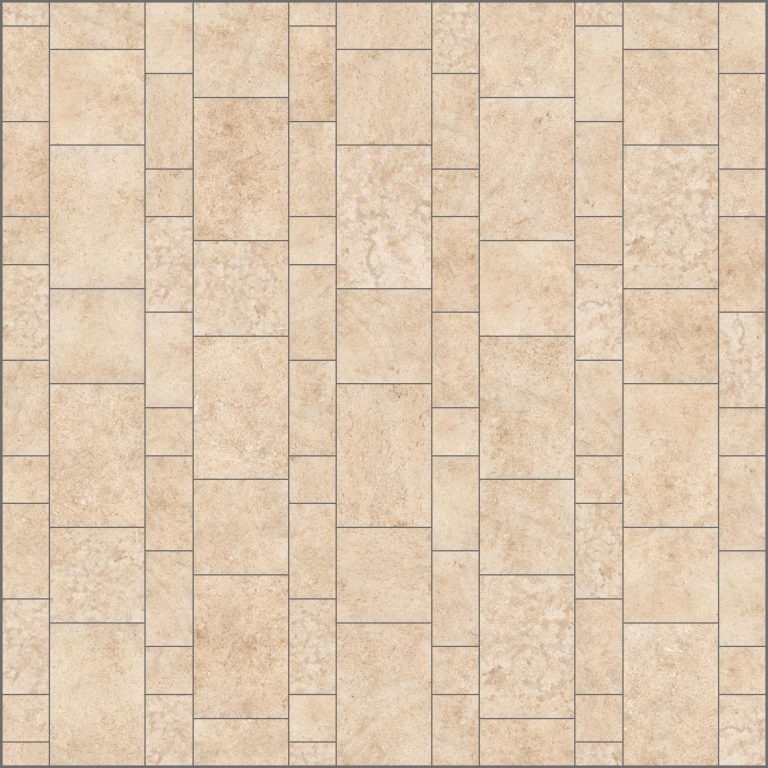

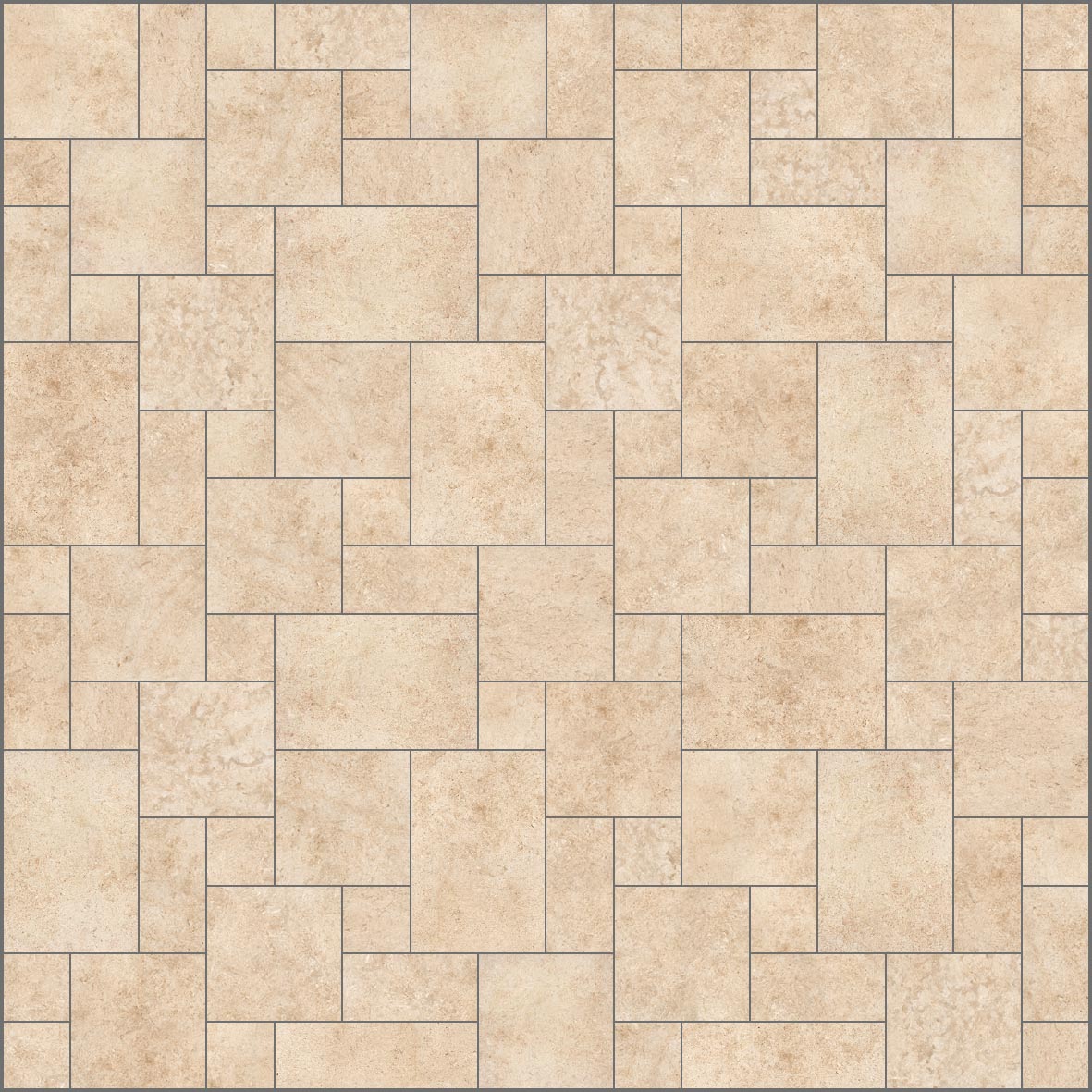

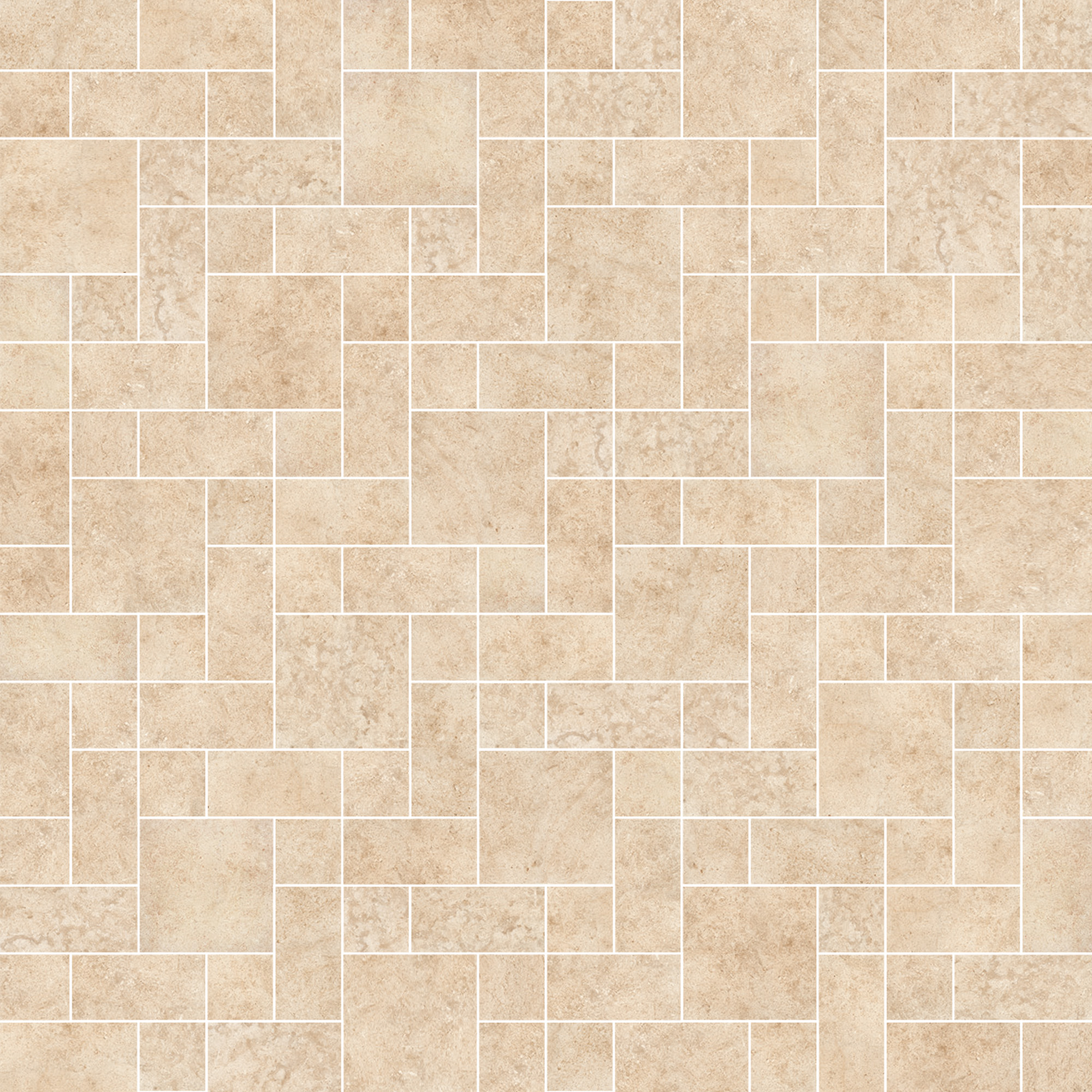

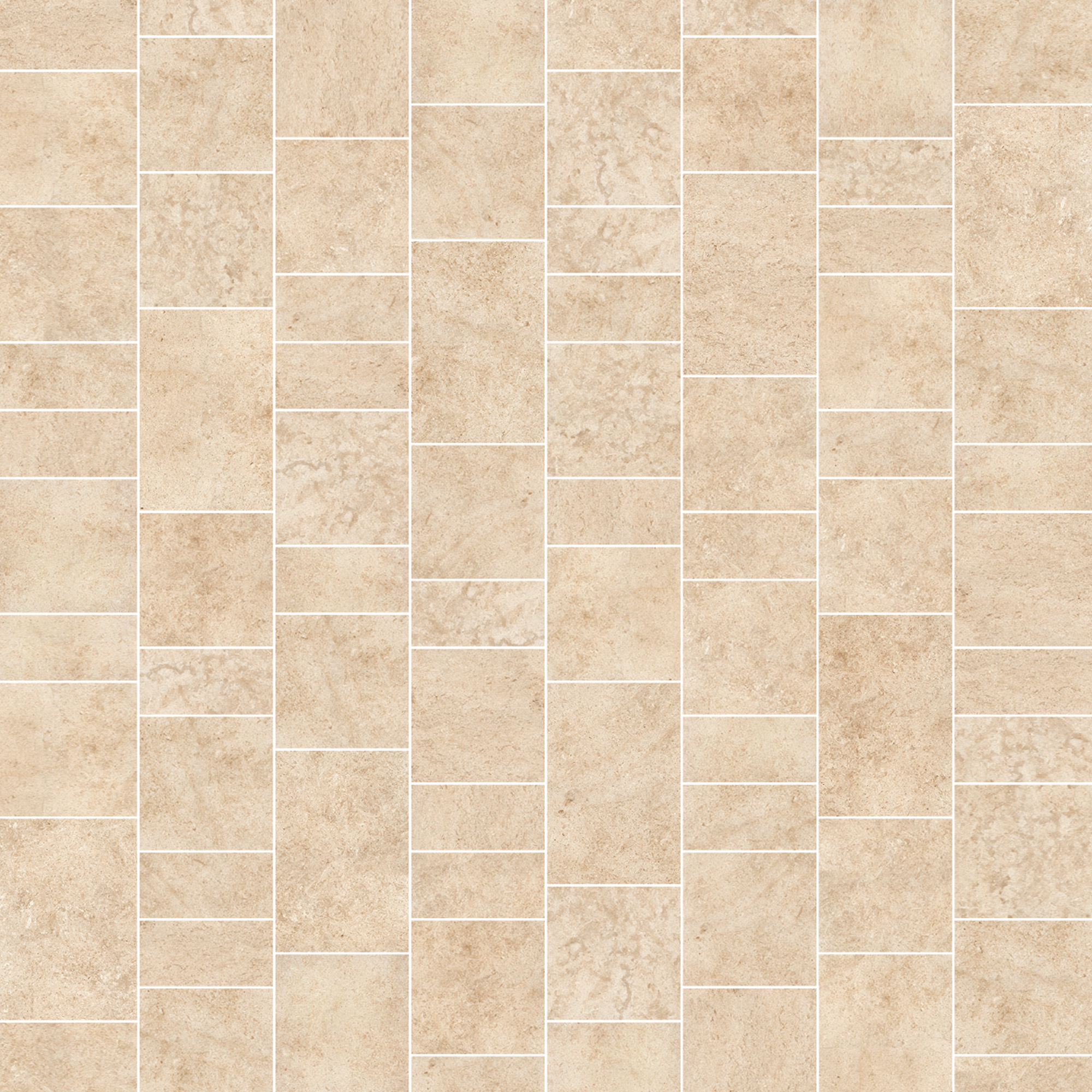

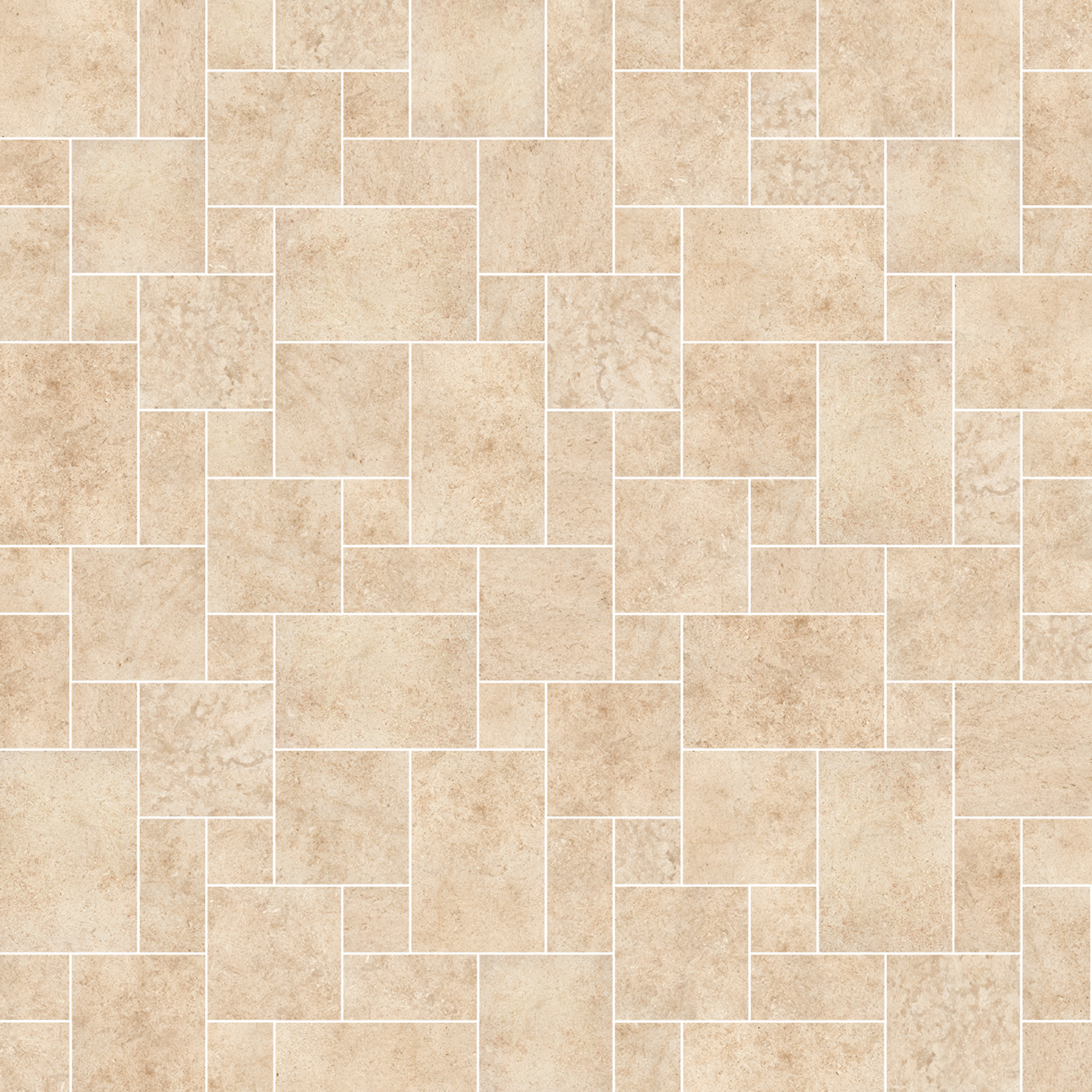

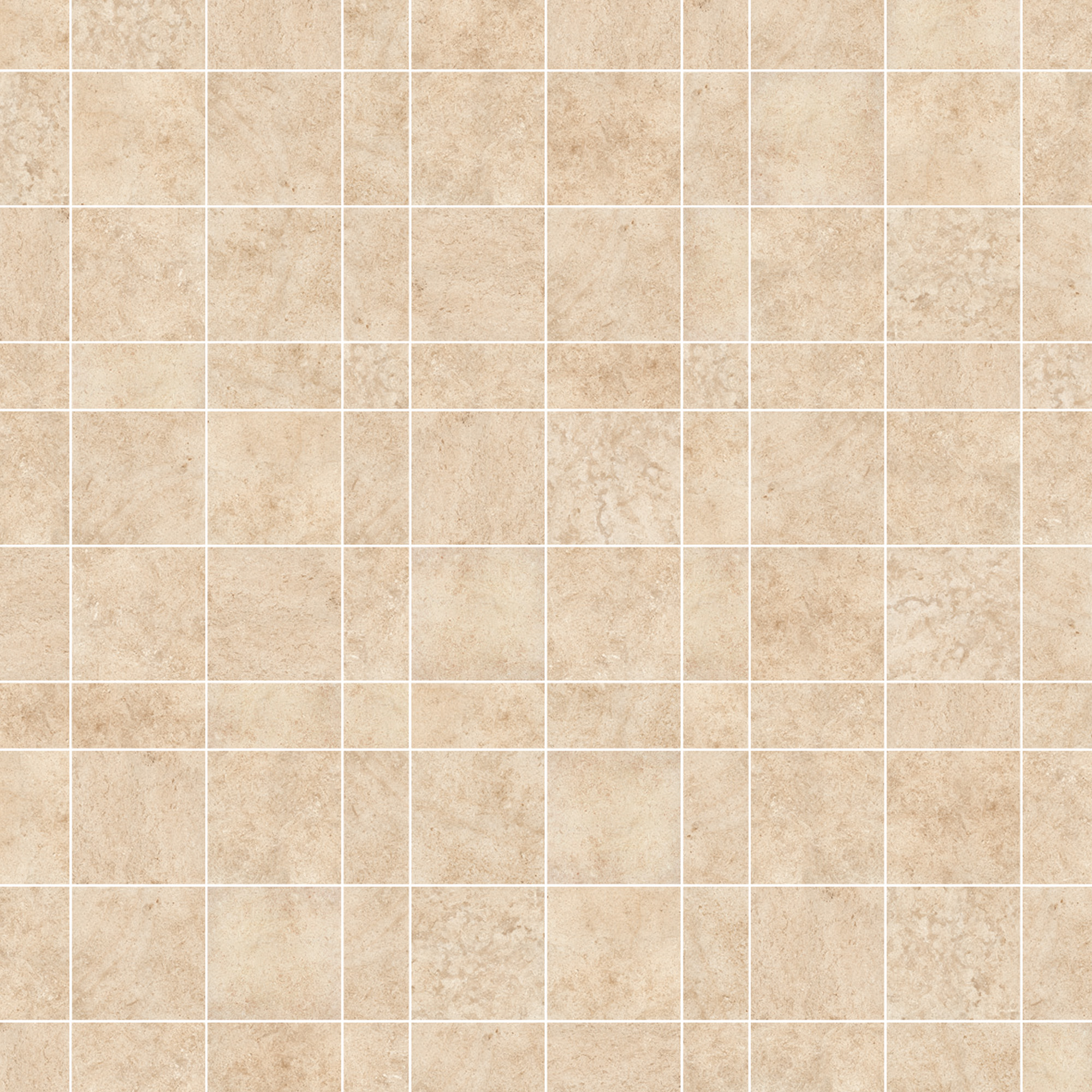

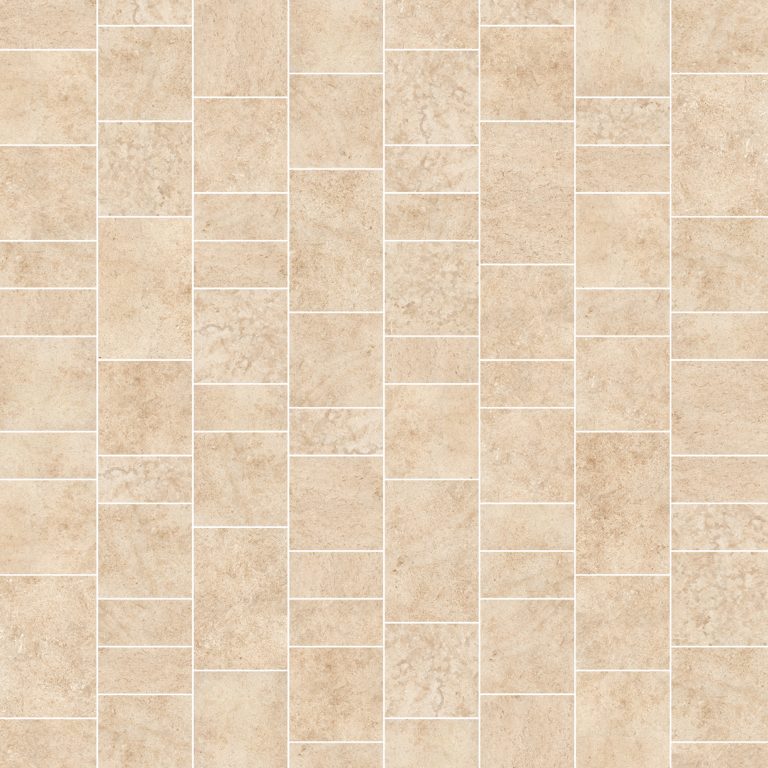

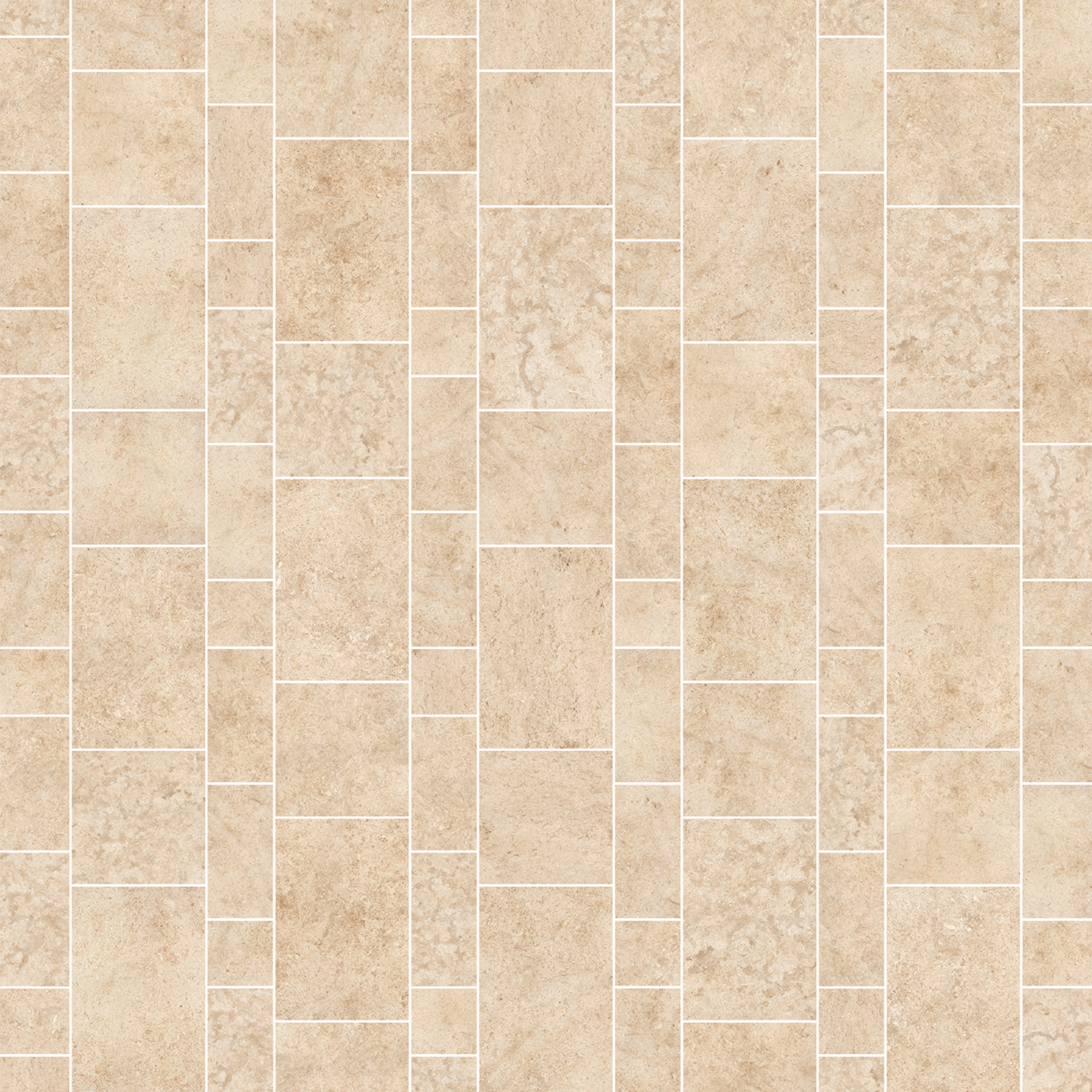

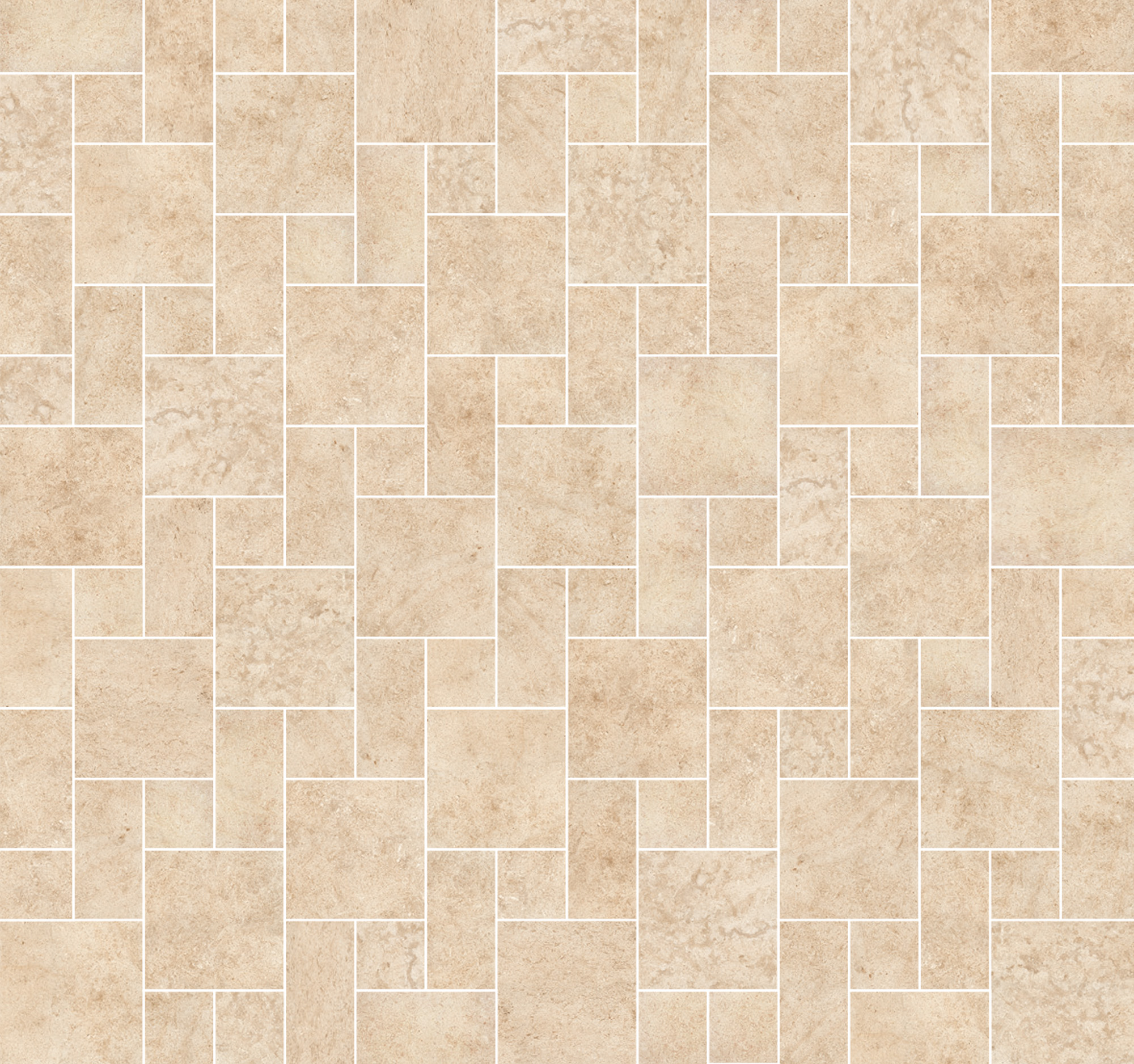

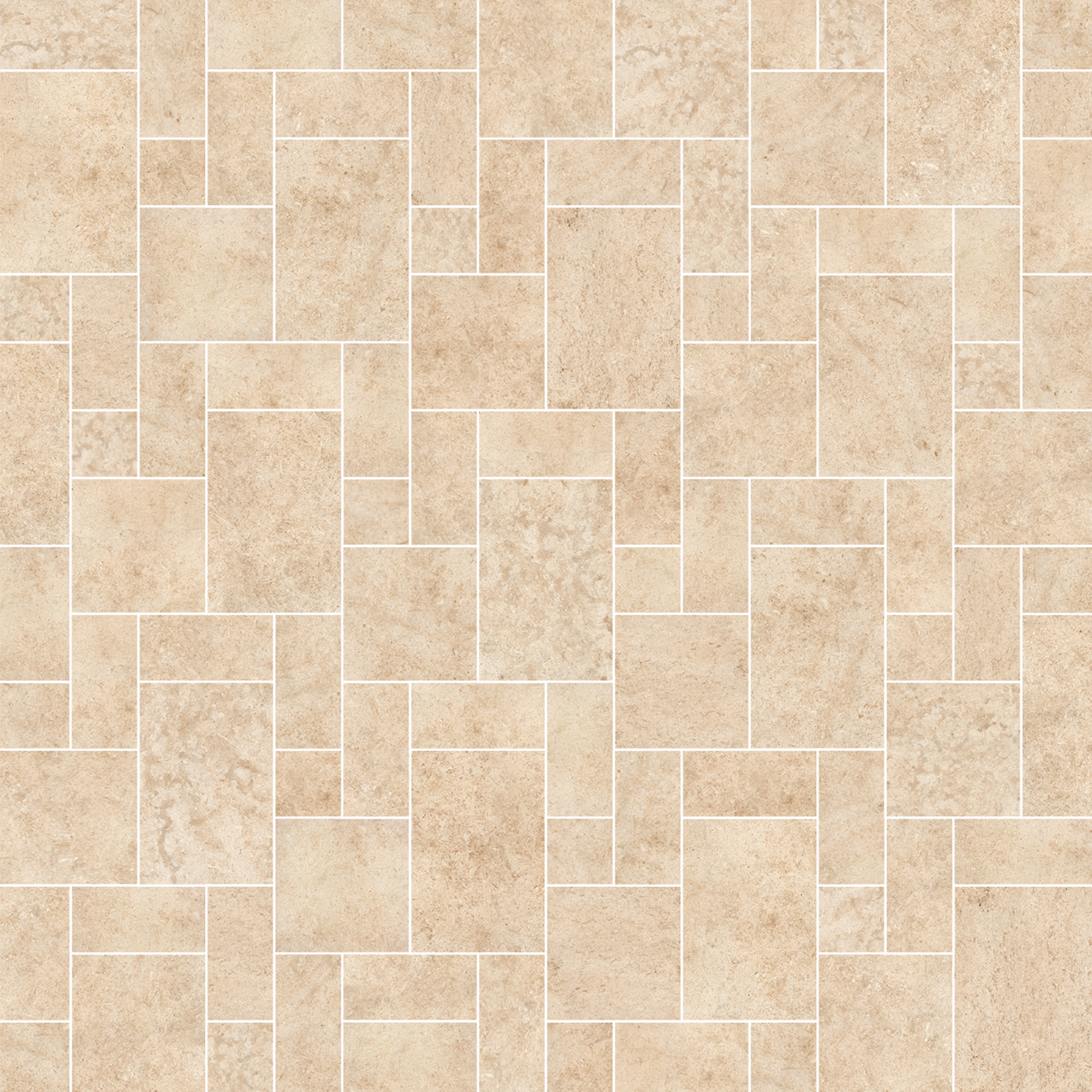

Laying pattern for modular composition, thickness 9 mm (J562) – 60×60, 30×60 and 30×30 cm:
Modular composition
Racines th. 20mm (J565 - J566)
The three formats composing the modules J565 – J566 are packaged in single-format boxes containing 2 pcs / box for size 60×60, 3 pcs / box for 30×60 and 2 pcs / box for 60×90. Attention: this modular composition is to pose using joints of 4mm.
Therefore, in order to respect the proportions between the three formats, the minimum order quantity could be higher than the desired one.
The correspondence between the surface of the room to be covered and the minimum order quantity, can be found in the table below:
| Surface to be tiled | sqm | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Minimum quantity to order | sqm | 2,34 | 2,34 | 4,14 | 4,68 | 6,48 | 6,48 | 8,82 | 8,82 | 10,62 | 11,16 |
| Surface to be tiled | sqm | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| Minimum quantity to order | sqm | 12,96 | 12,96 | 15,30 | 15,30 | 15,30 | 17,10 | 17,64 | 19,44 | 19,44 | 21,78 |
| Surface to be tiled | sqm | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 |
| Minimum quantity to order | sqm | 21,78 | 23,58 | 24,12 | 25,92 | 25,92 | 28,26 | 28,26 | 28,26 | 30,06 | 30,60 |
| Surface to be tiled | sqm | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 40 |
| Minimum quantity to order | sqm | 32,40 | 32,40 | 34,74 | 34,74 | 36,54 | 37,08 | 38,88 | 38,88 | 41,22 | 41,22 |
| Surface to be tiled | sqm | 41 | 42 | 43 | 44 | 45 | 46 | 47 | 48 | 49 | 50 |
| Minimum quantity to order | sqm | 41,22 | 43,02 | 43,56 | 45,36 | 45,36 | 47,70 | 47,70 | 49,50 | 50,04 | 51,84 |
| Surface to be tiled | sqm | 51 | 52 | 53 | 54 | 55 | 56 | 57 | 58 | 59 | 60 |
| Minimum quantity to order | sqm | 51,84 | 54,18 | 54,18 | 54,18 | 55,98 | 56,52 | 58,32 | 58,32 | 60,66 | 60,66 |
| Surface to be tiled | sqm | 61 | 62 | 63 | 64 | 65 | 66 | 67 | 68 | 69 | 70 |
| Minimum quantity to order | sqm | 62,46 | 63,00 | 64,80 | 64,80 | 67,14 | 67,14 | 68,94 | 68,94 | 69,48 | 71,28 |
| Surface to be tiled | sqm | 71 | 72 | 73 | 74 | 75 | 76 | 77 | 78 | 79 | 80 |
| Minimum quantity to order | sqm | 71,28 | 73,62 | 73,62 | 75,42 | 75,96 | 77,76 | 77,76 | 80,10 | 80,10 | 81,90 |
| Surface to be tiled | sqm | 81 | 82 | 83 | 84 | 85 | 86 | 87 | 88 | 89 | 90 |
| Minimum quantity to order | sqm | 81,90 | 82,44 | 84,24 | 84,24 | 86,58 | 86,58 | 88,38 | 88,92 | 90,72 | 90,72 |
| Surface to be tiled | sqm | 91 | 92 | 93 | 94 | 95 | 96 | 97 | 98 | 99 | 100 |
| Minimum quantity to order | sqm | 93,06 | 93,06 | 94,86 | 95,40 | 95,40 | 97,20 | 97,20 | 99,54 | 99,54 | 101,34 |

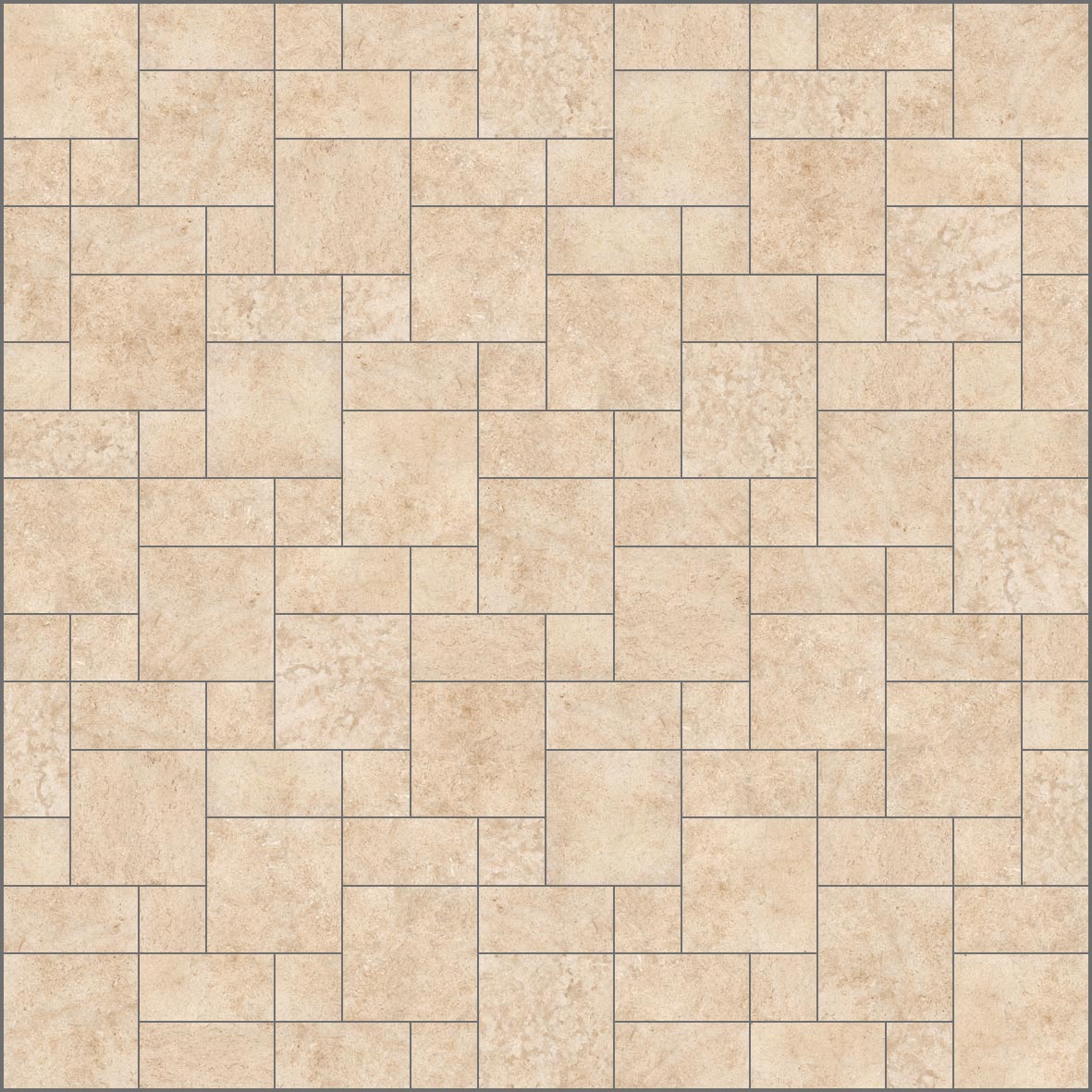

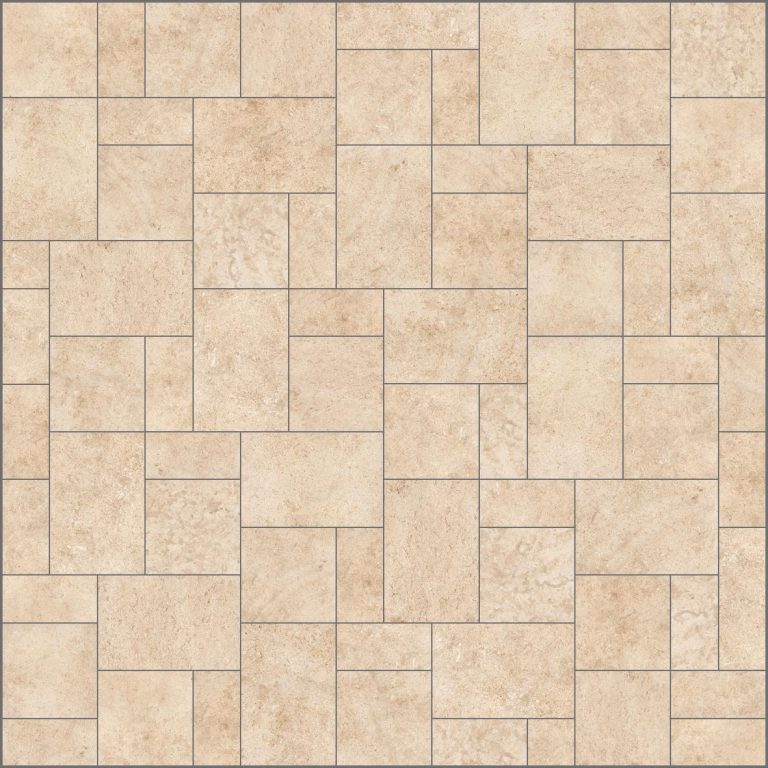

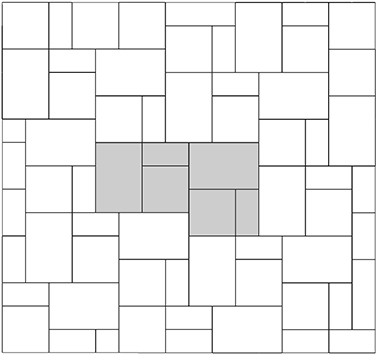

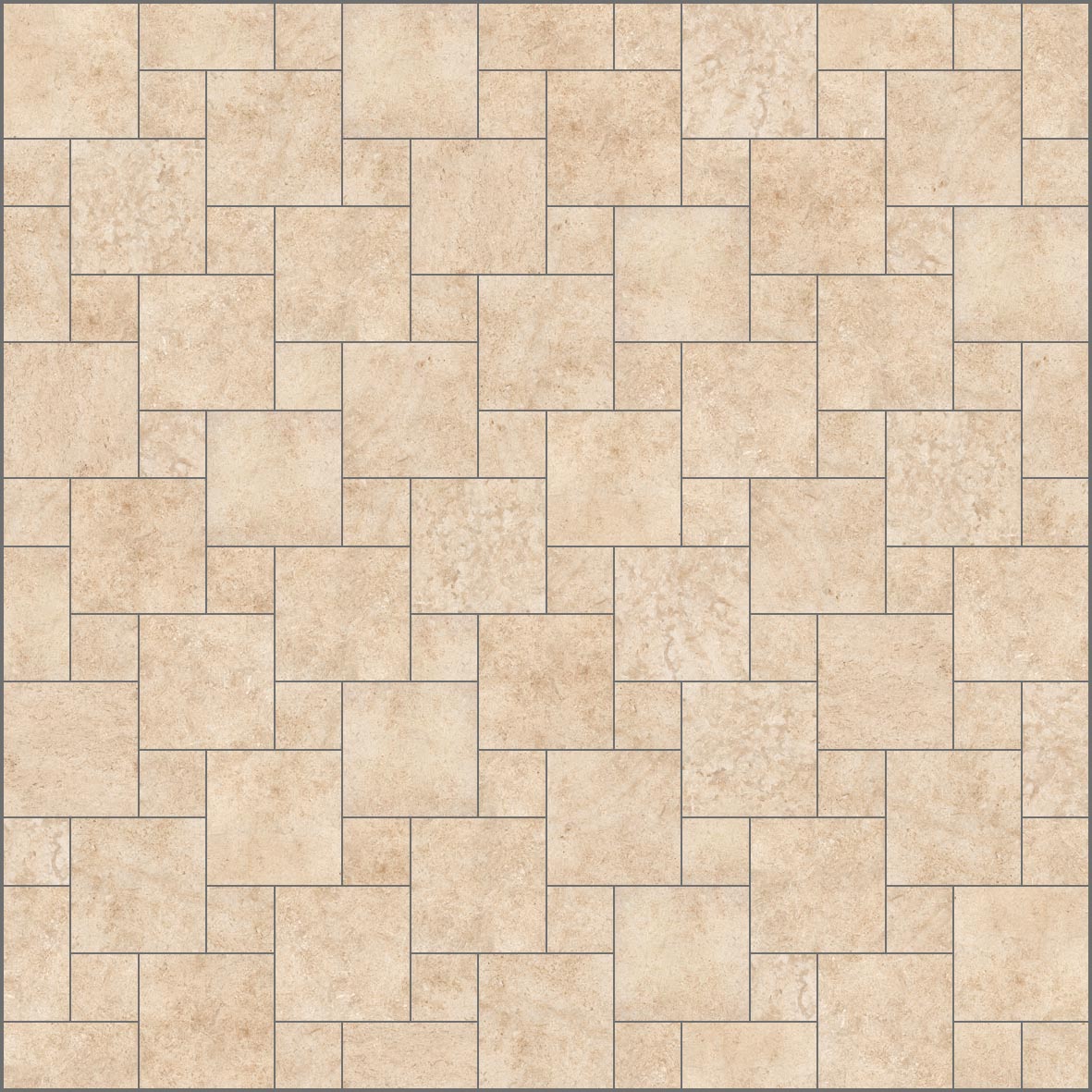

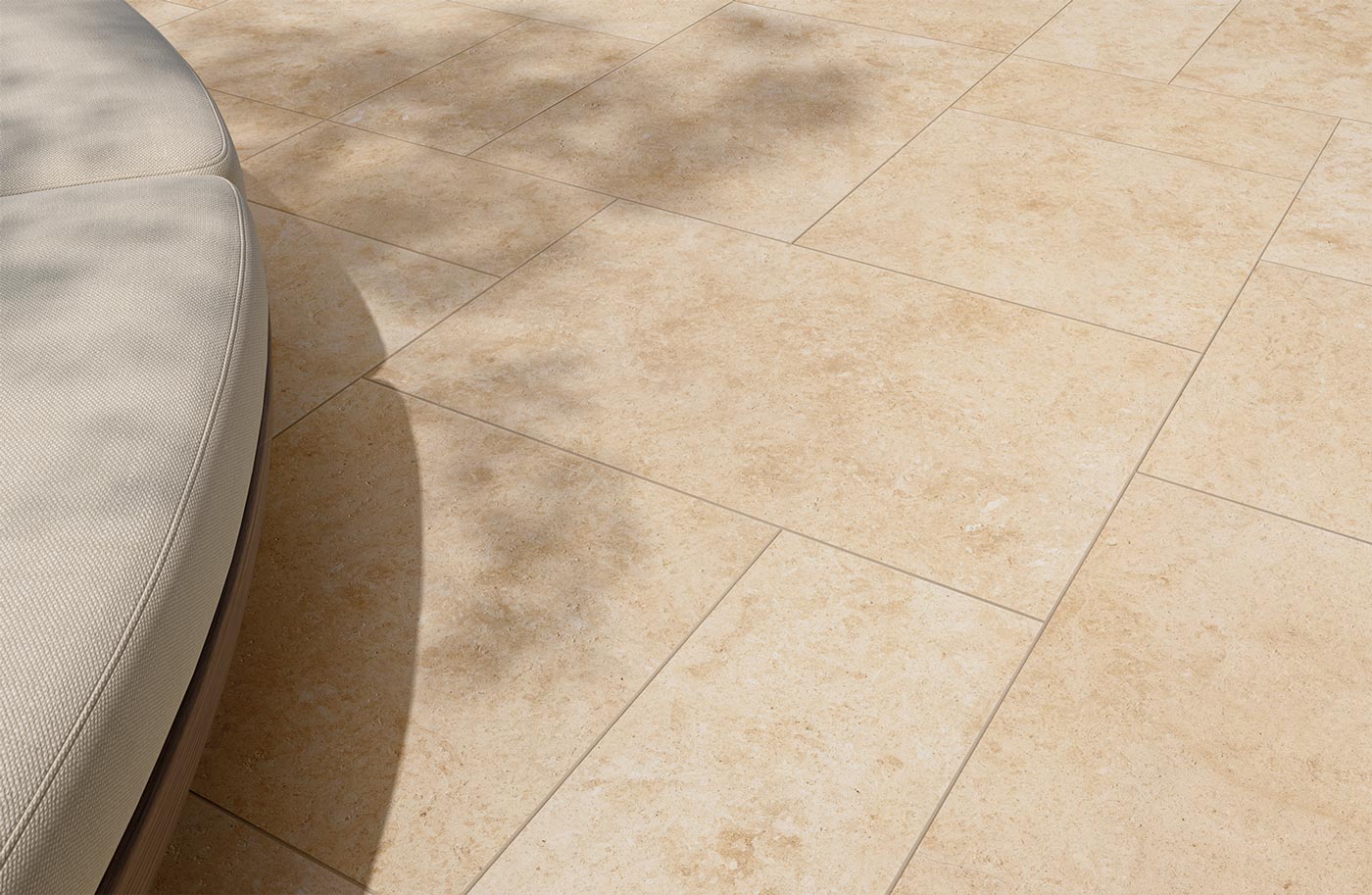

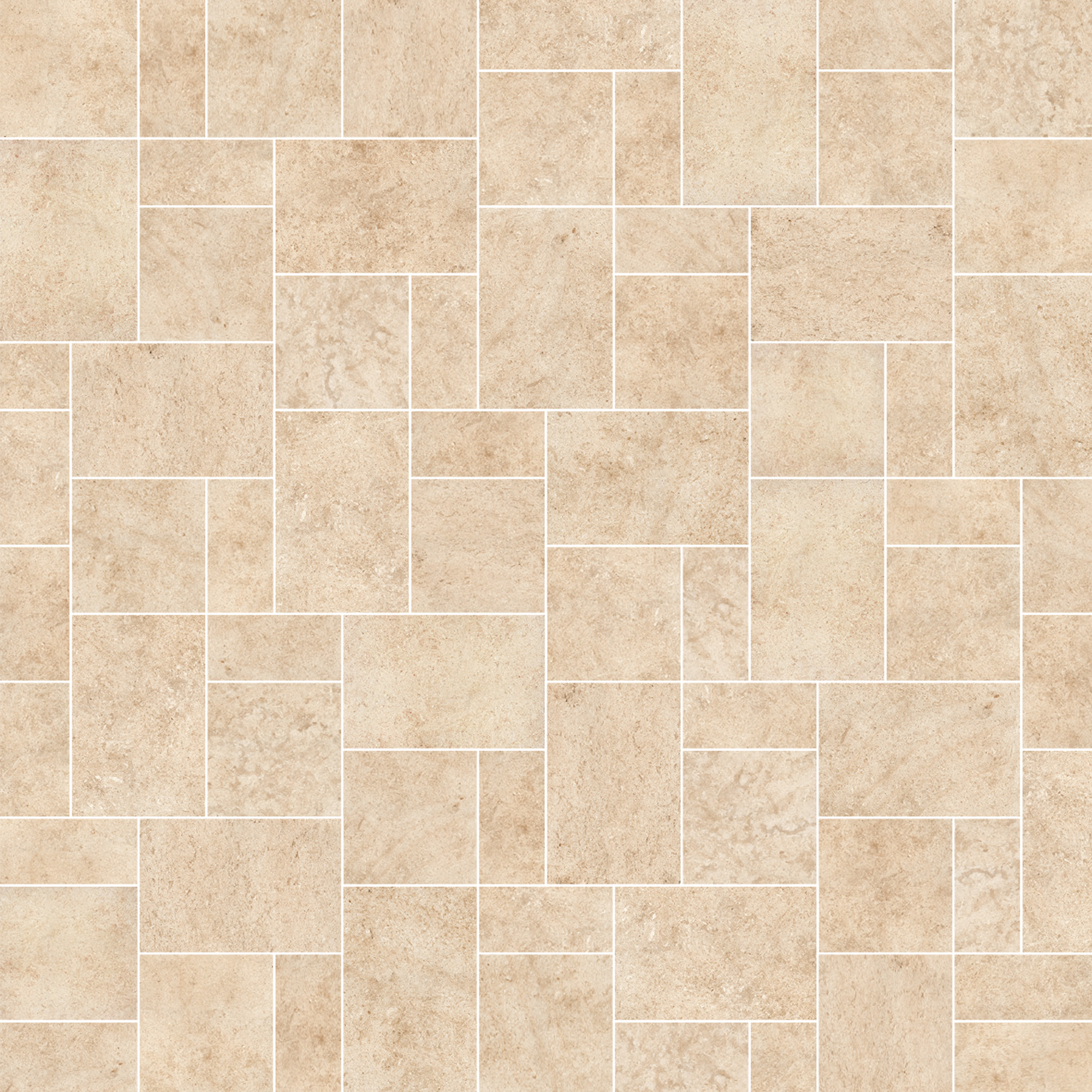

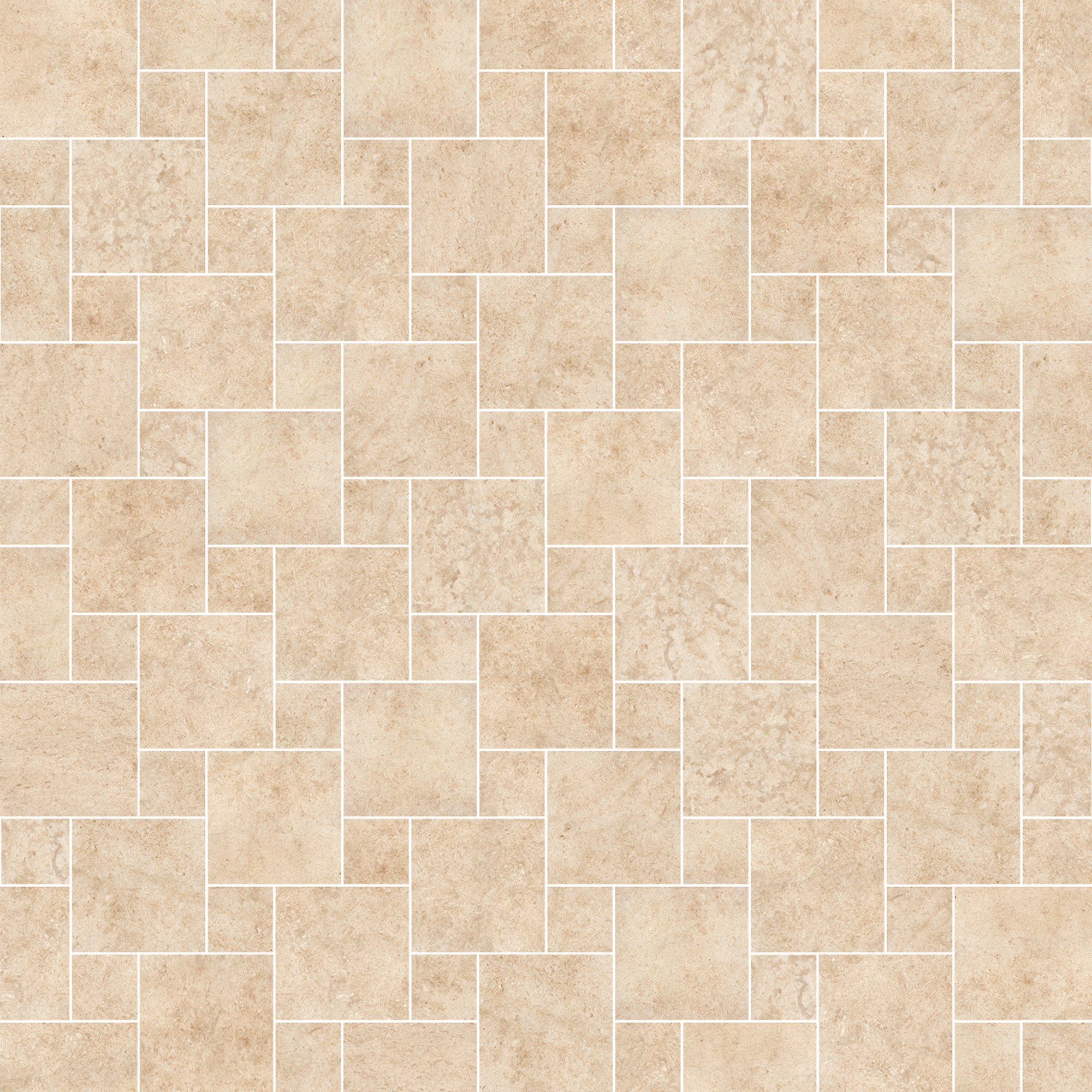

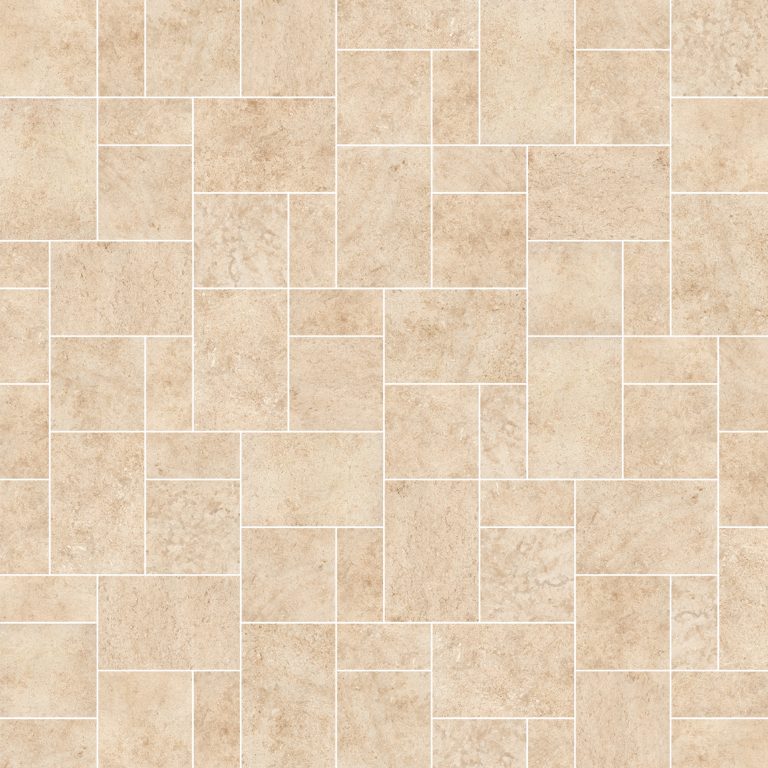

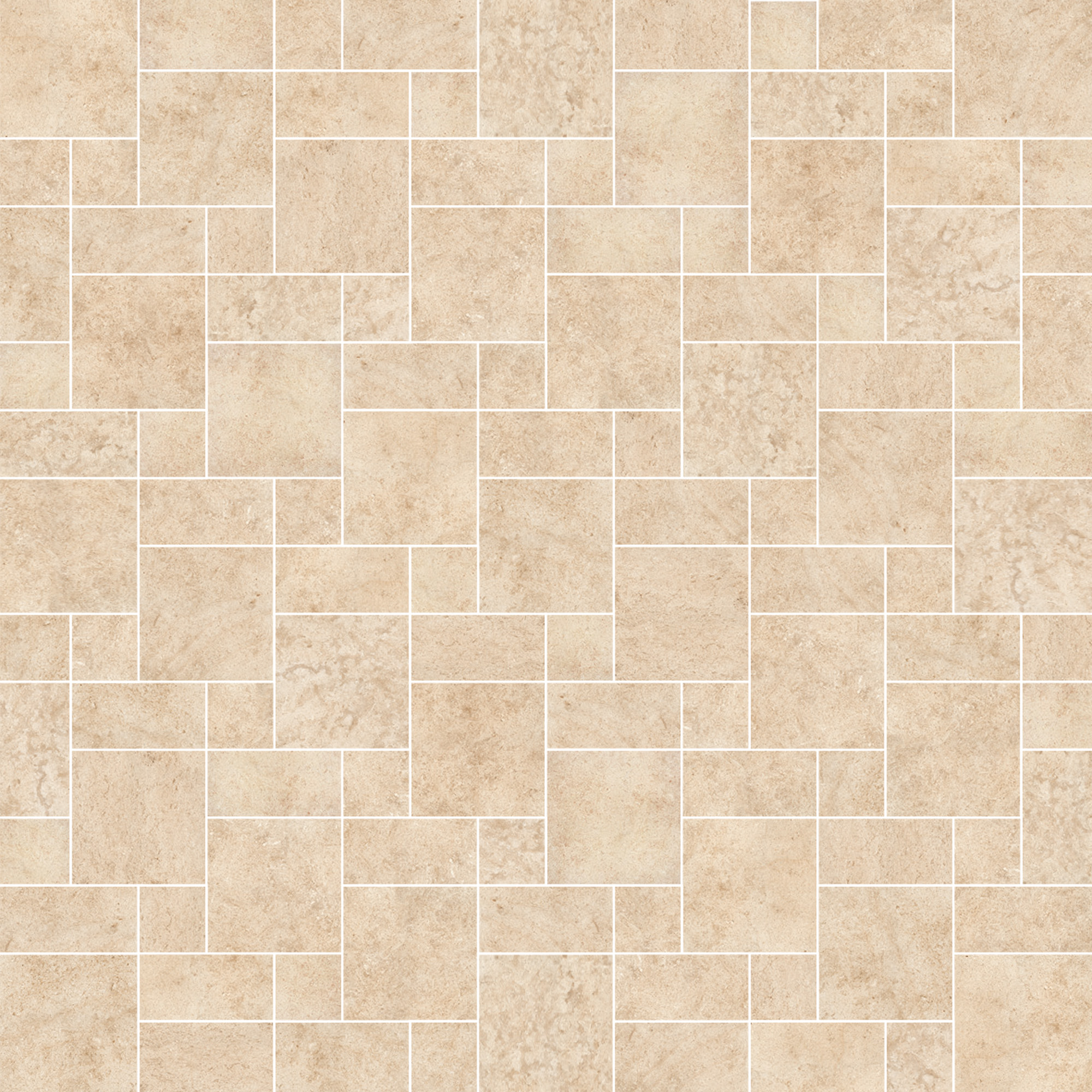

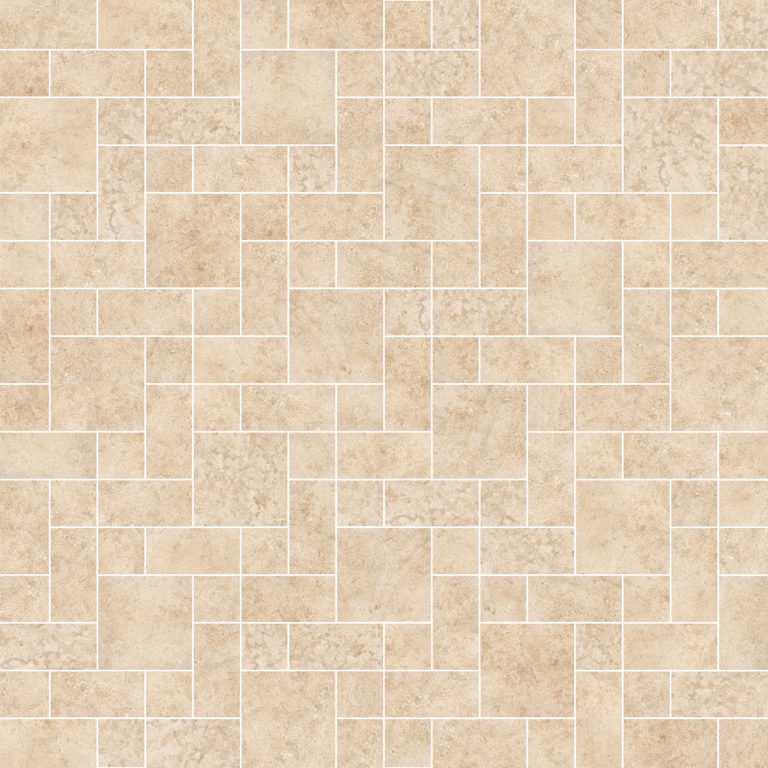

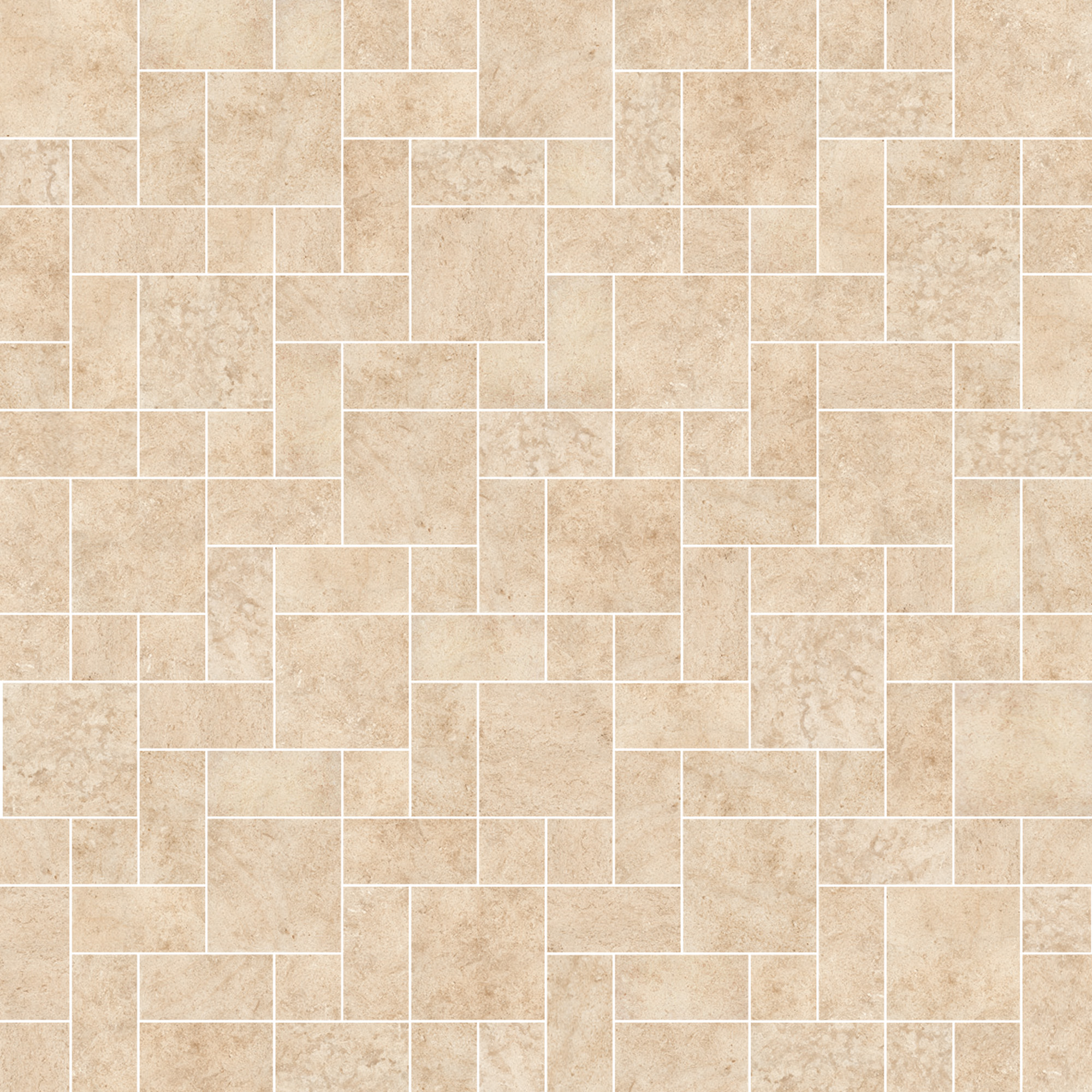

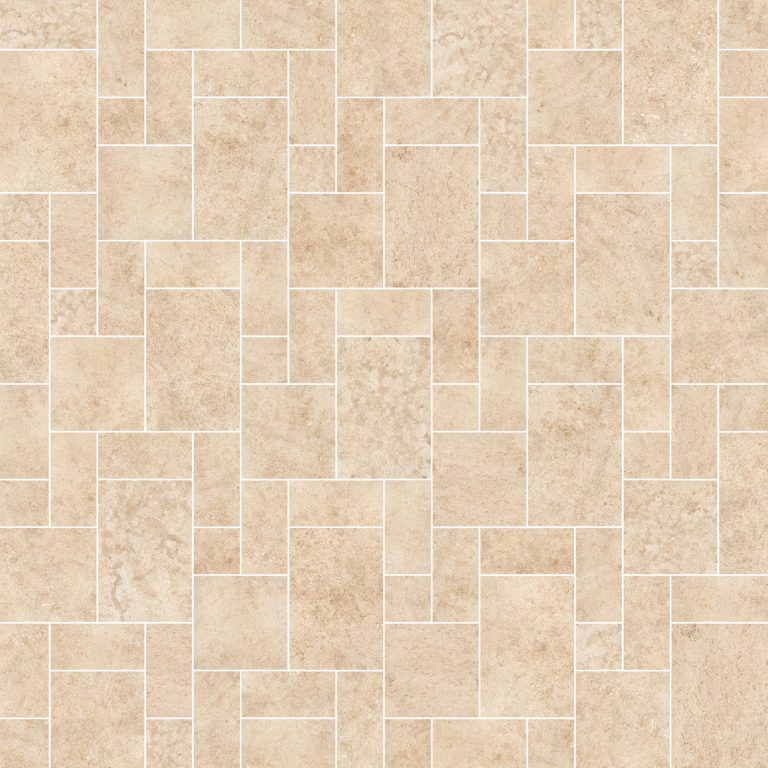

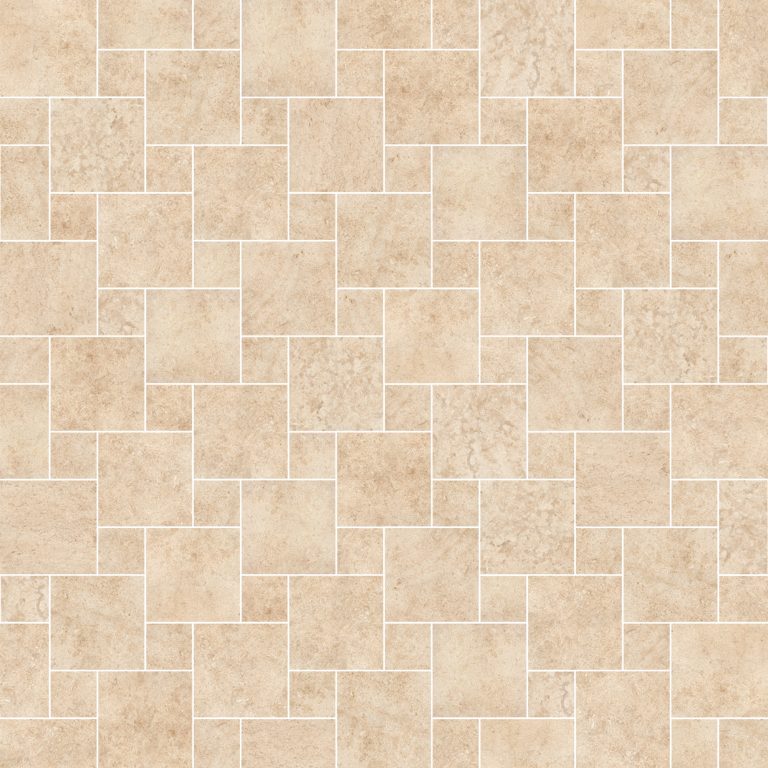

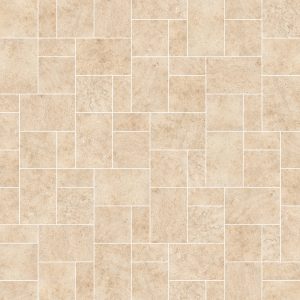

Laying pattern for modular composition Outdoor Plus thickness 20 mm (J565 – J566) – 60×90, 60×60 and 30×60 cm Outdoor Plus:

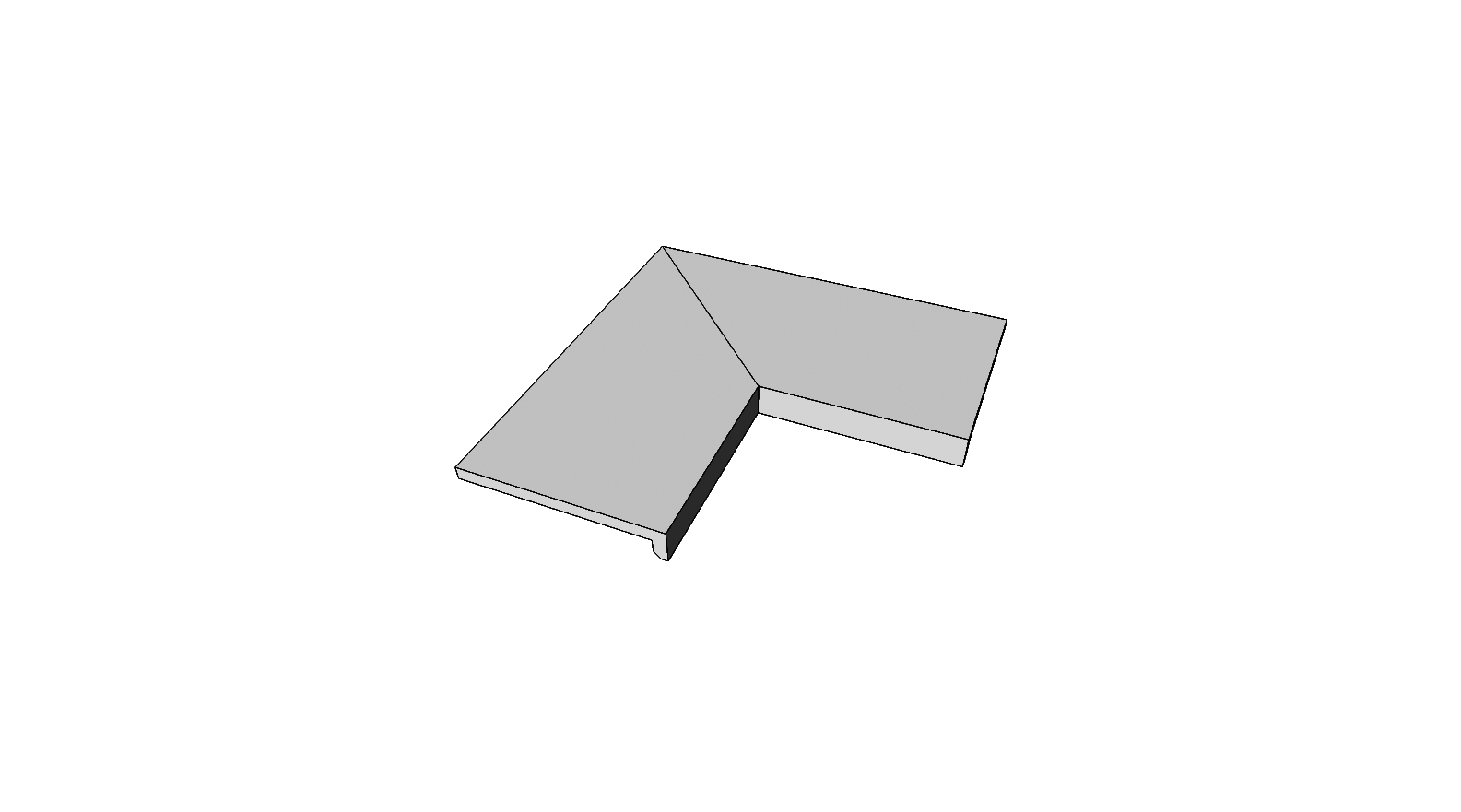

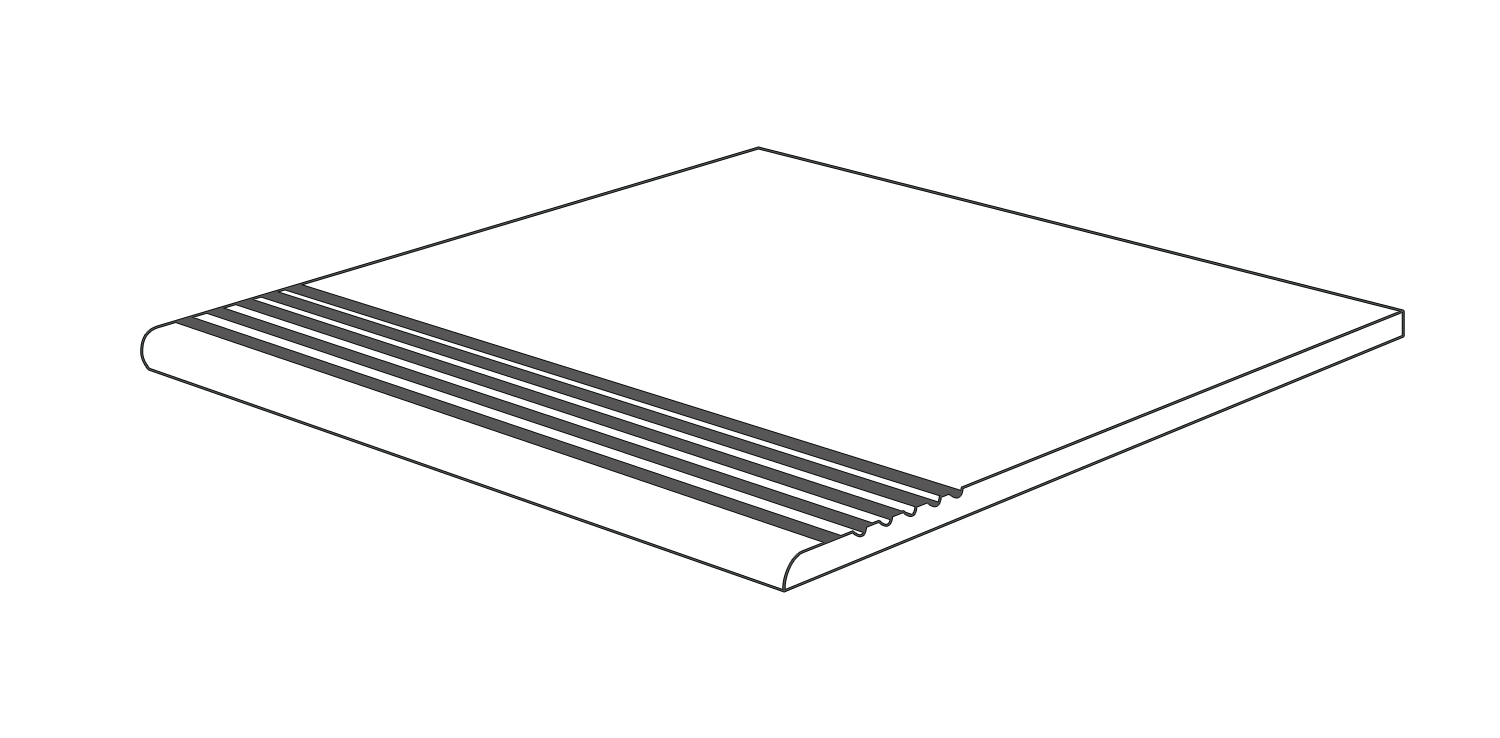

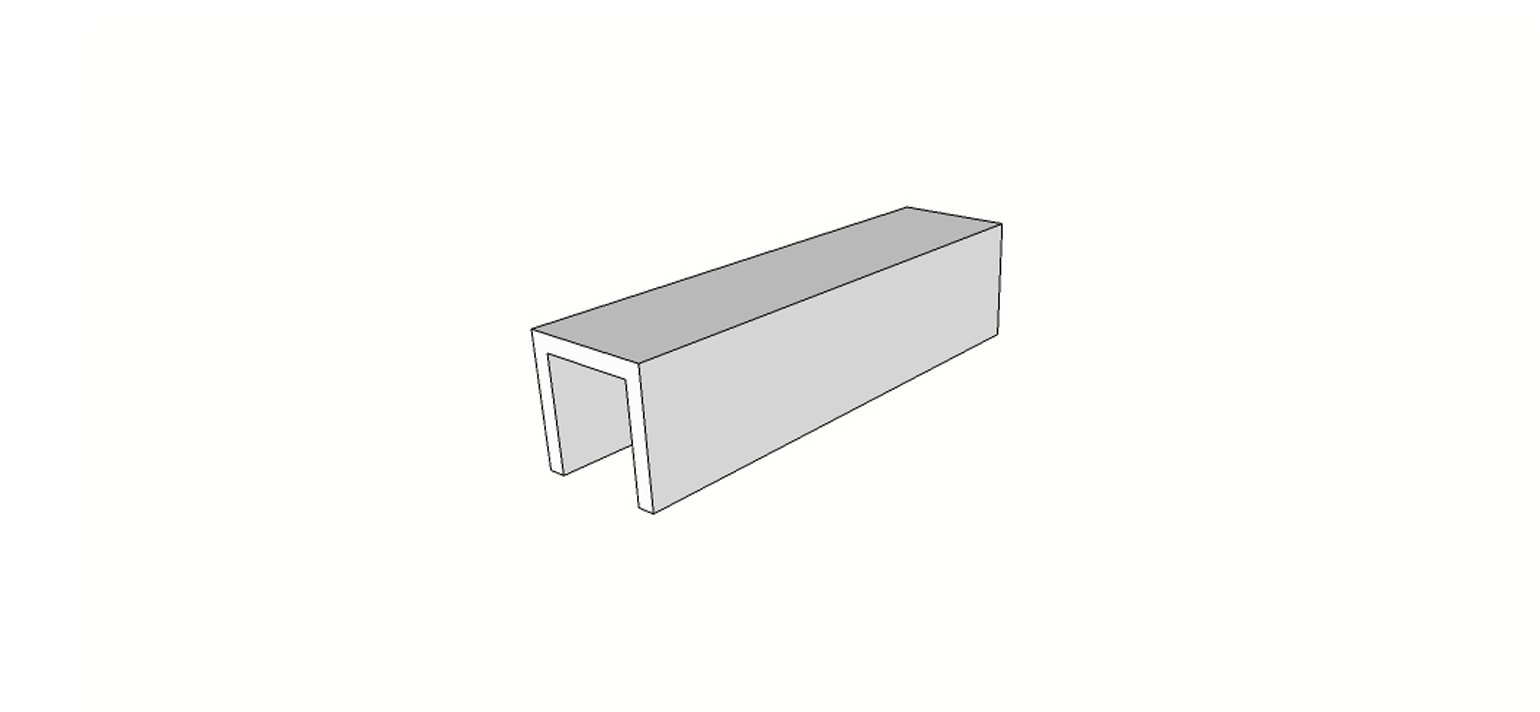

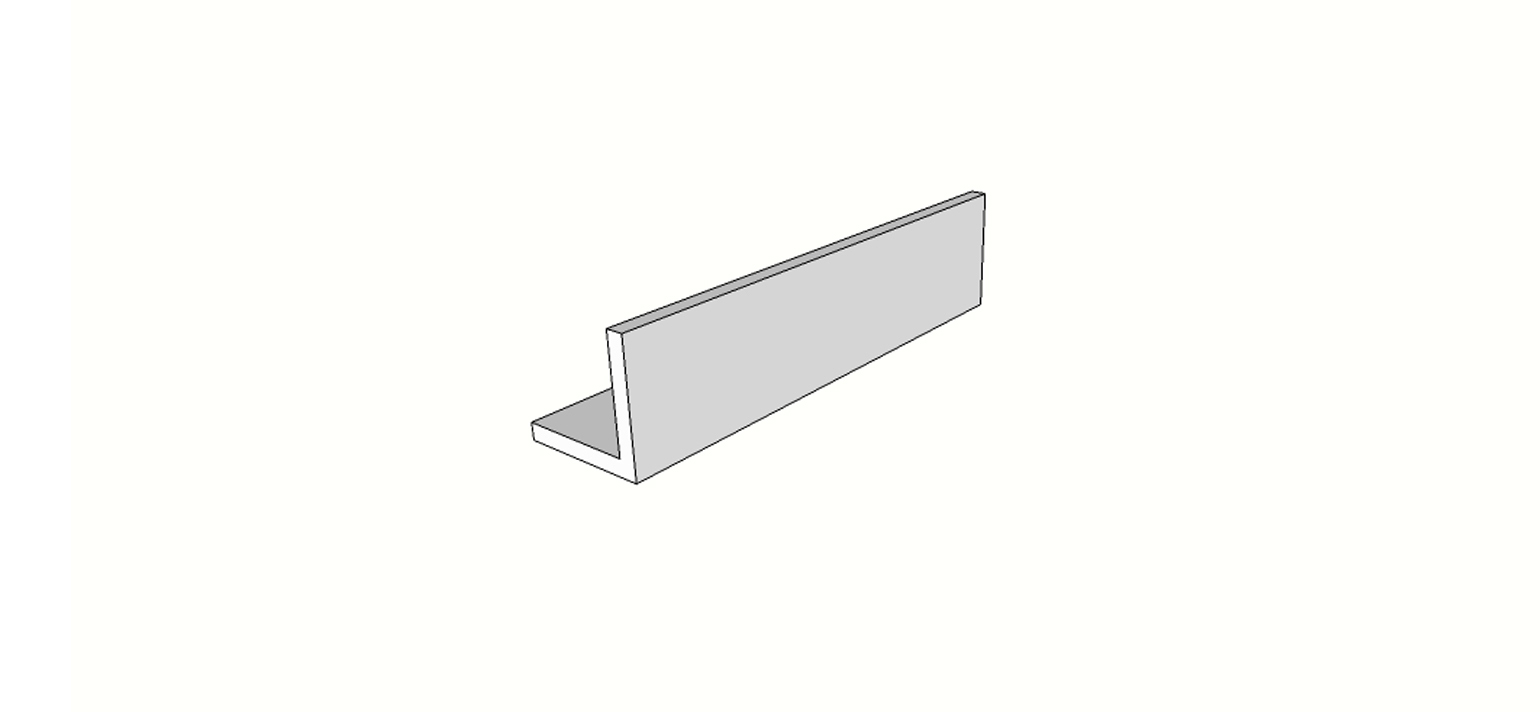

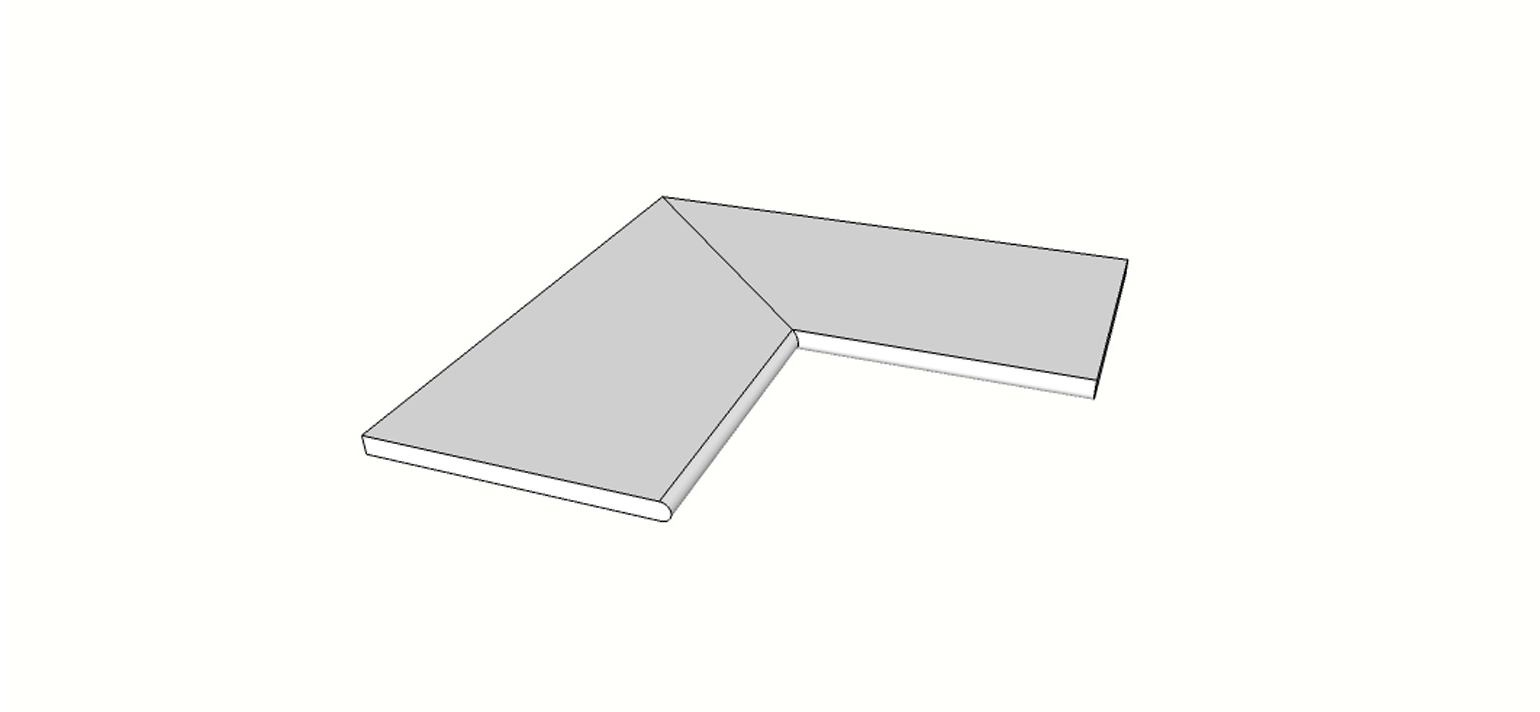

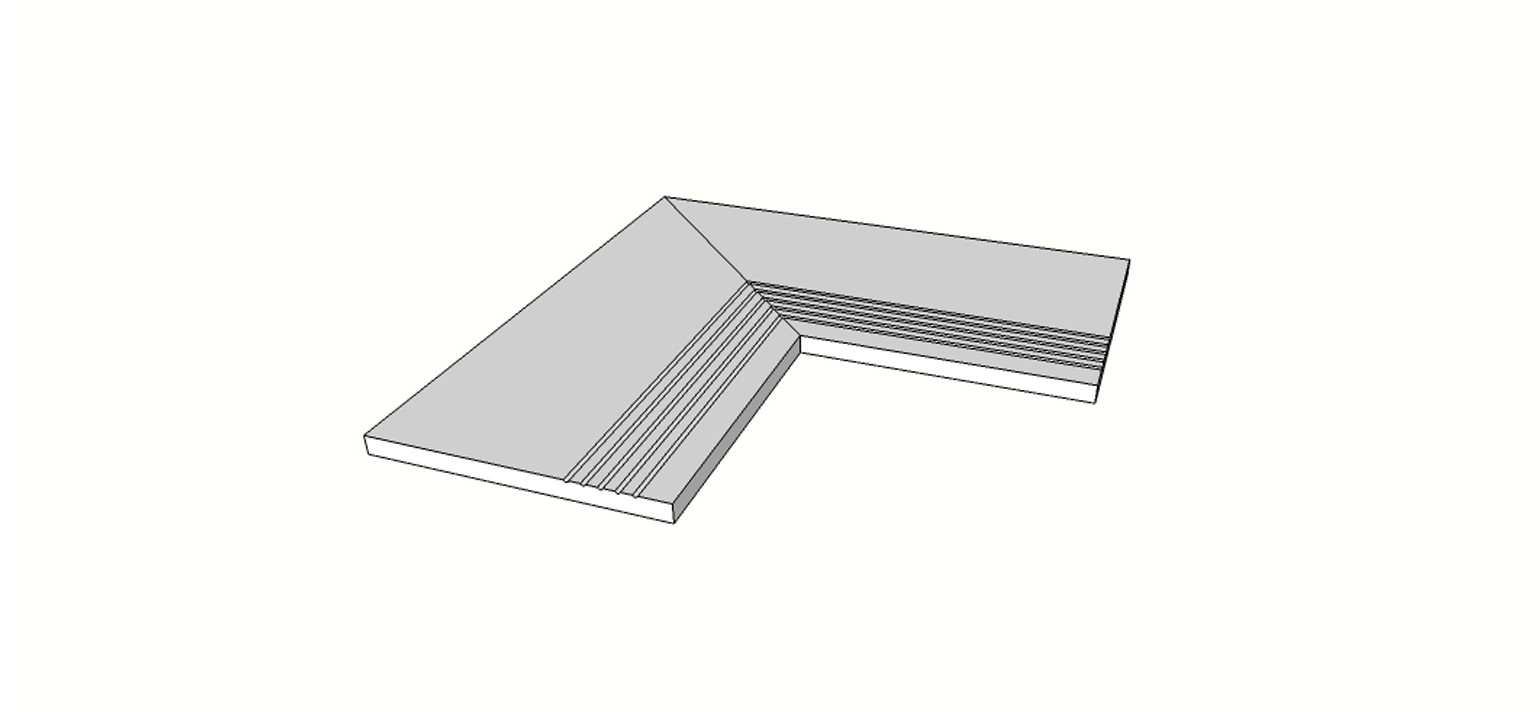

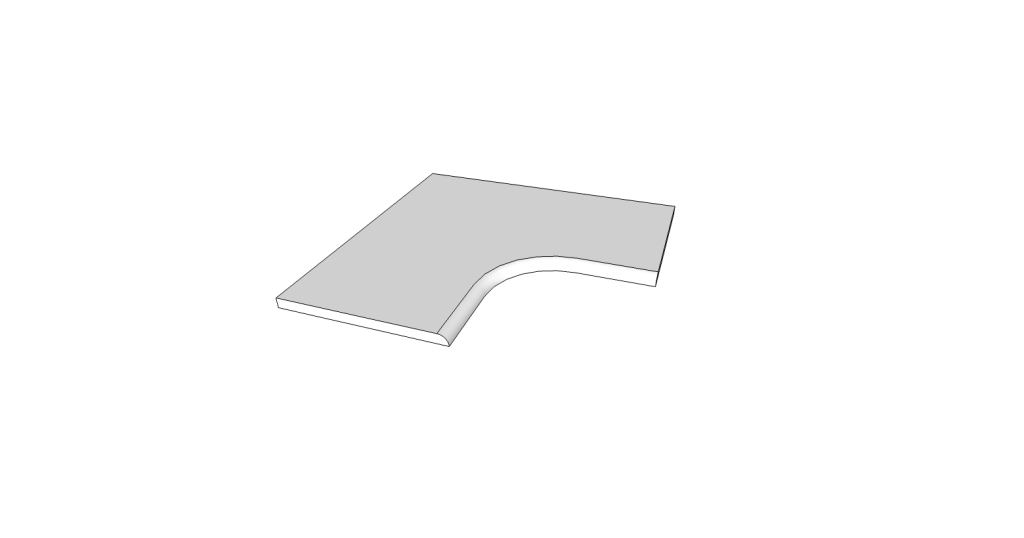

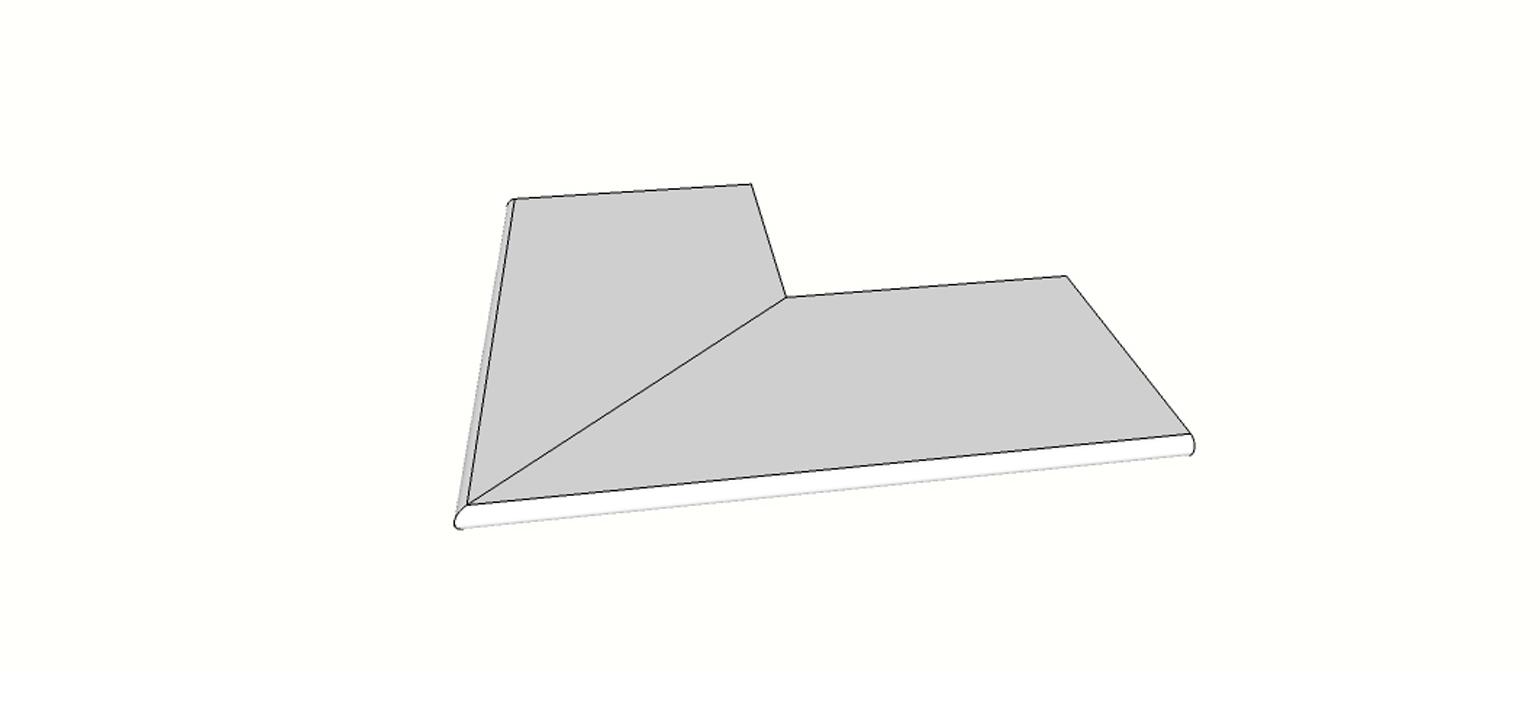

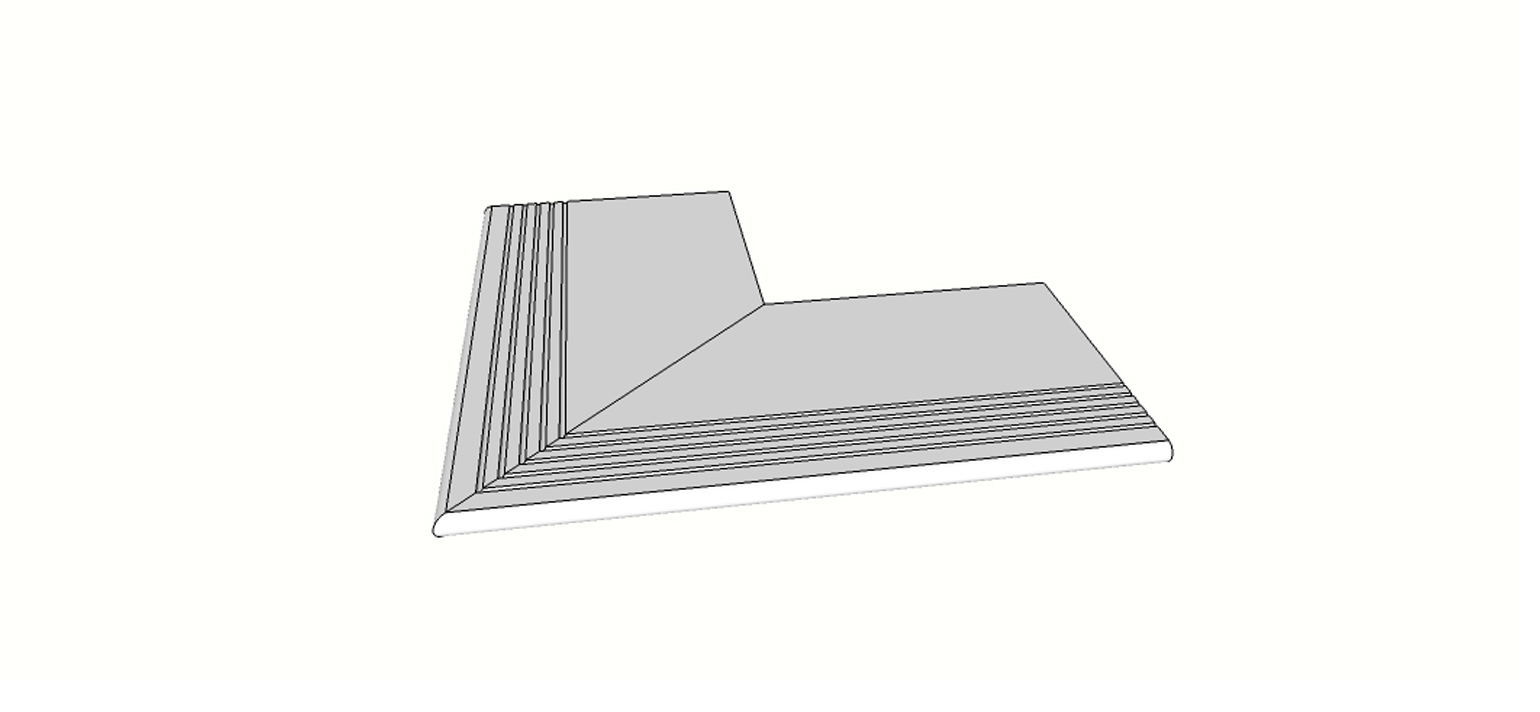

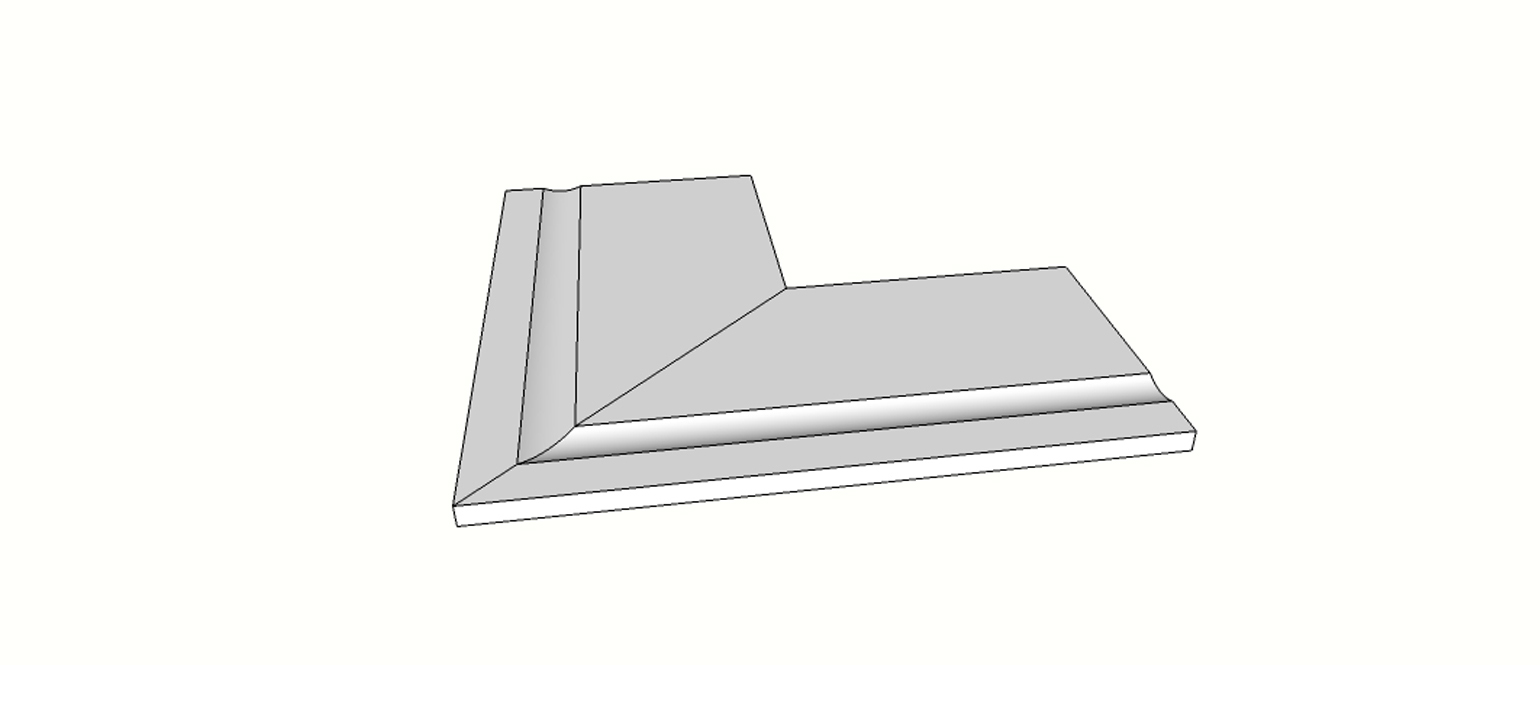

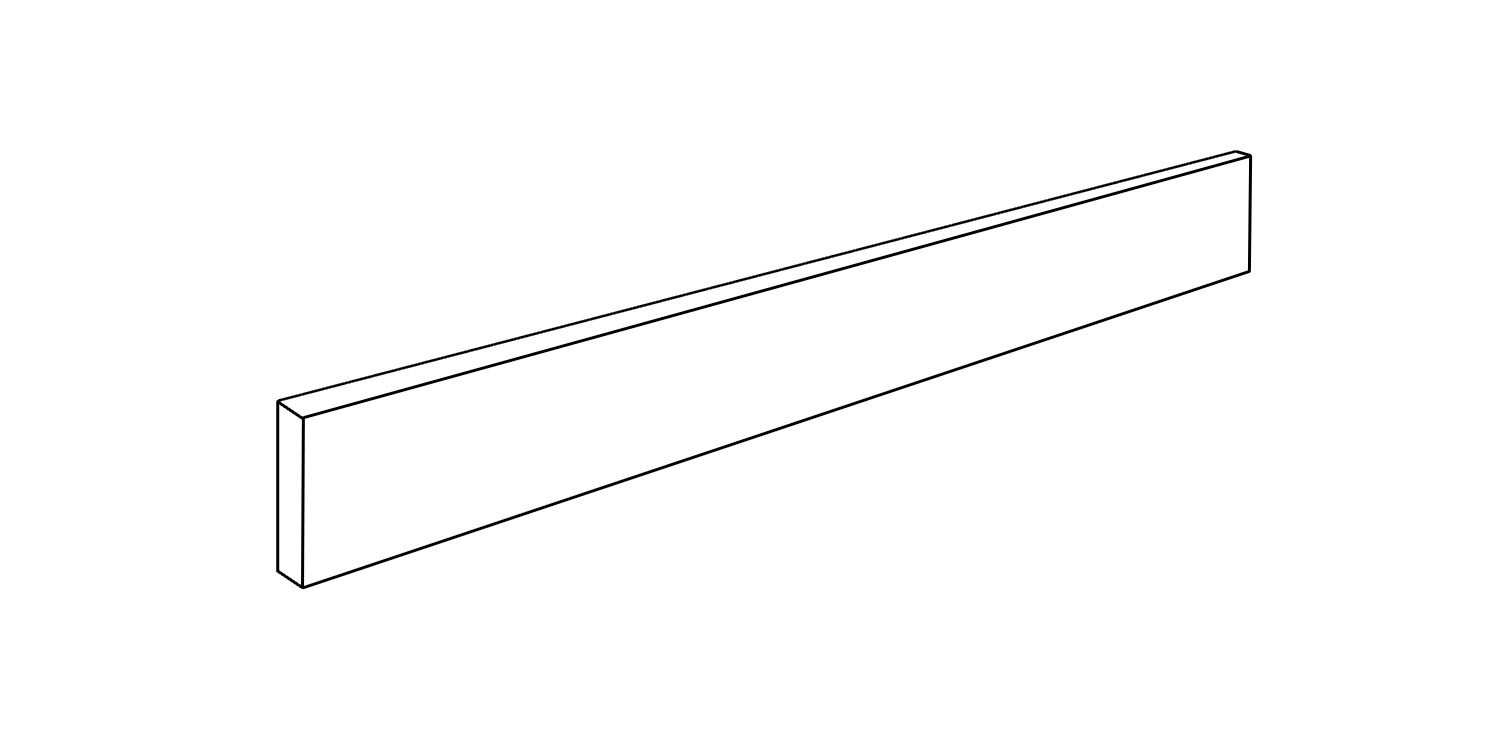

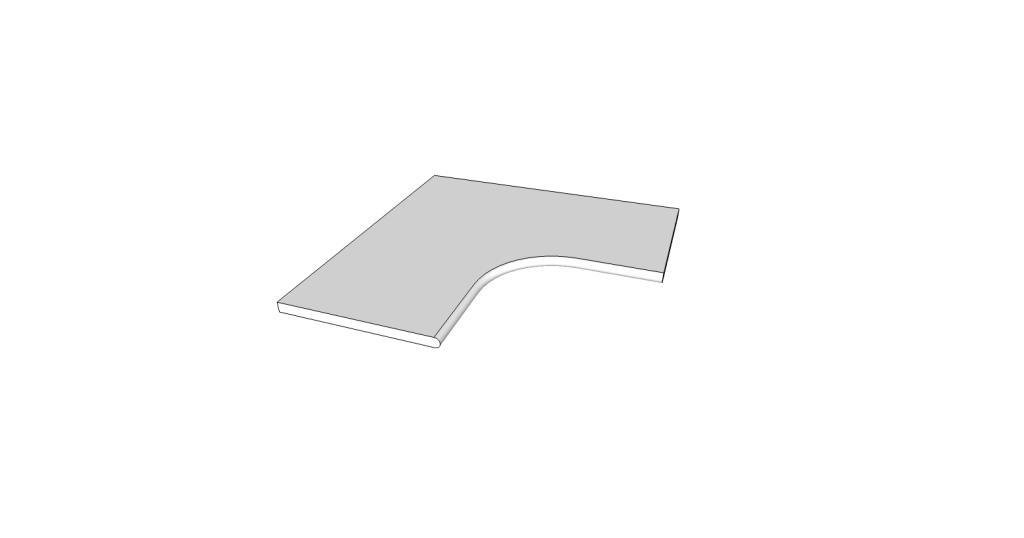

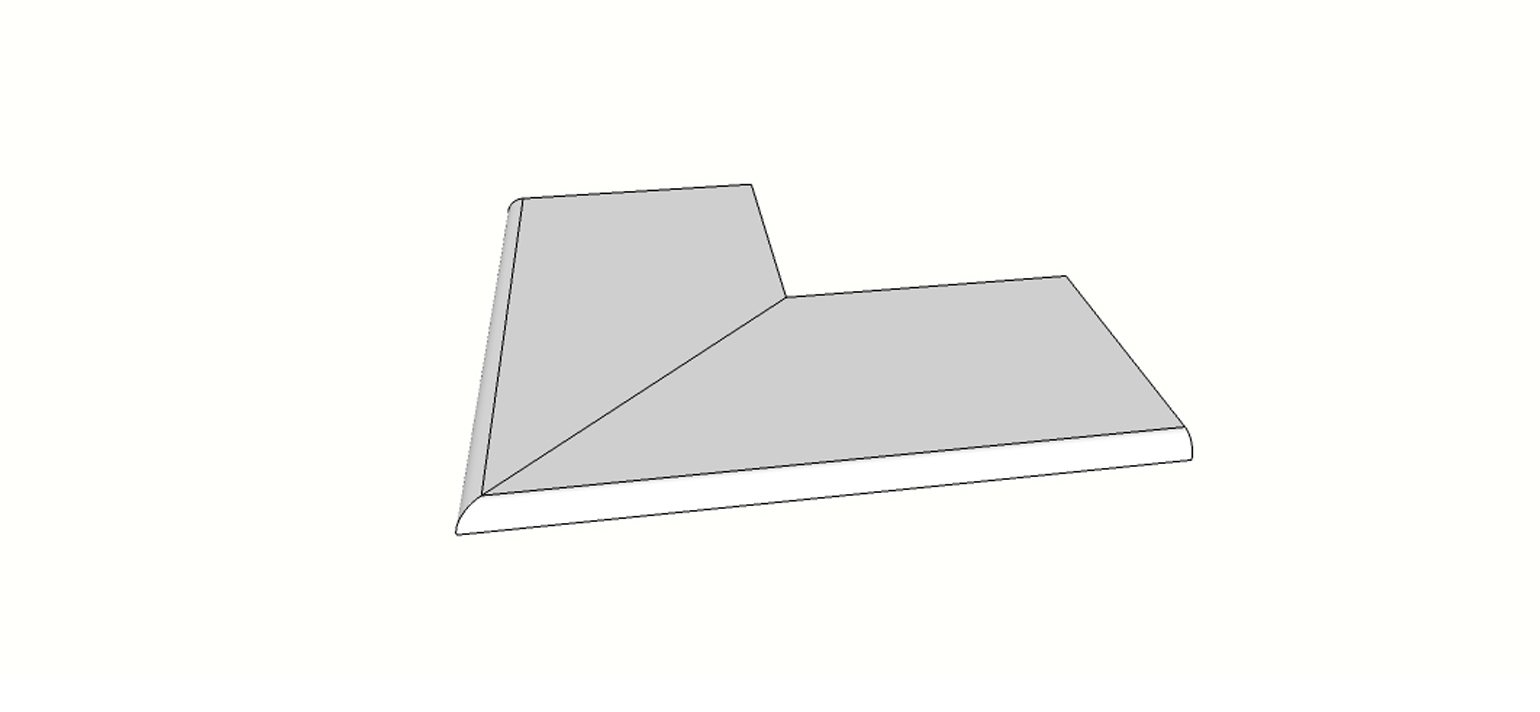

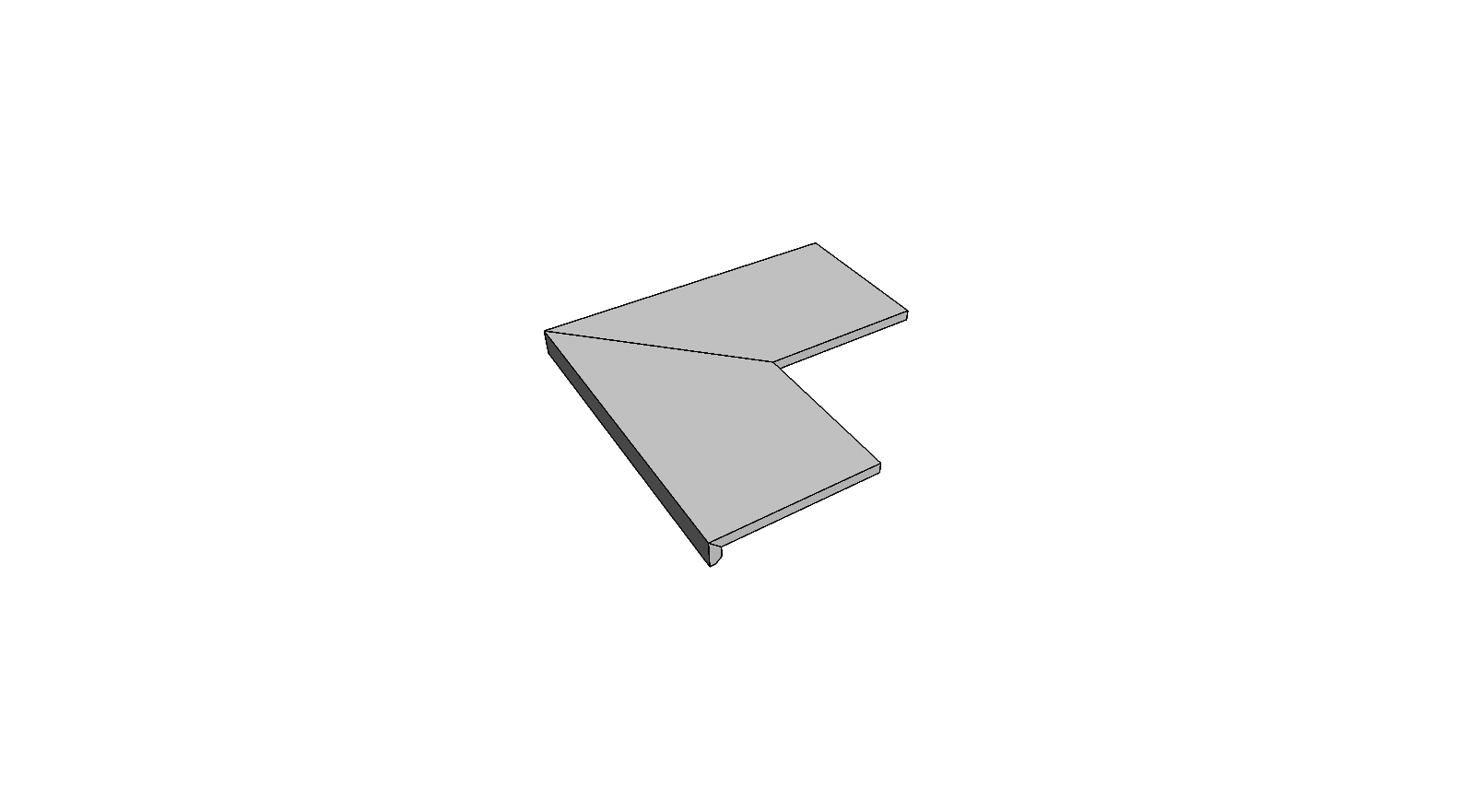

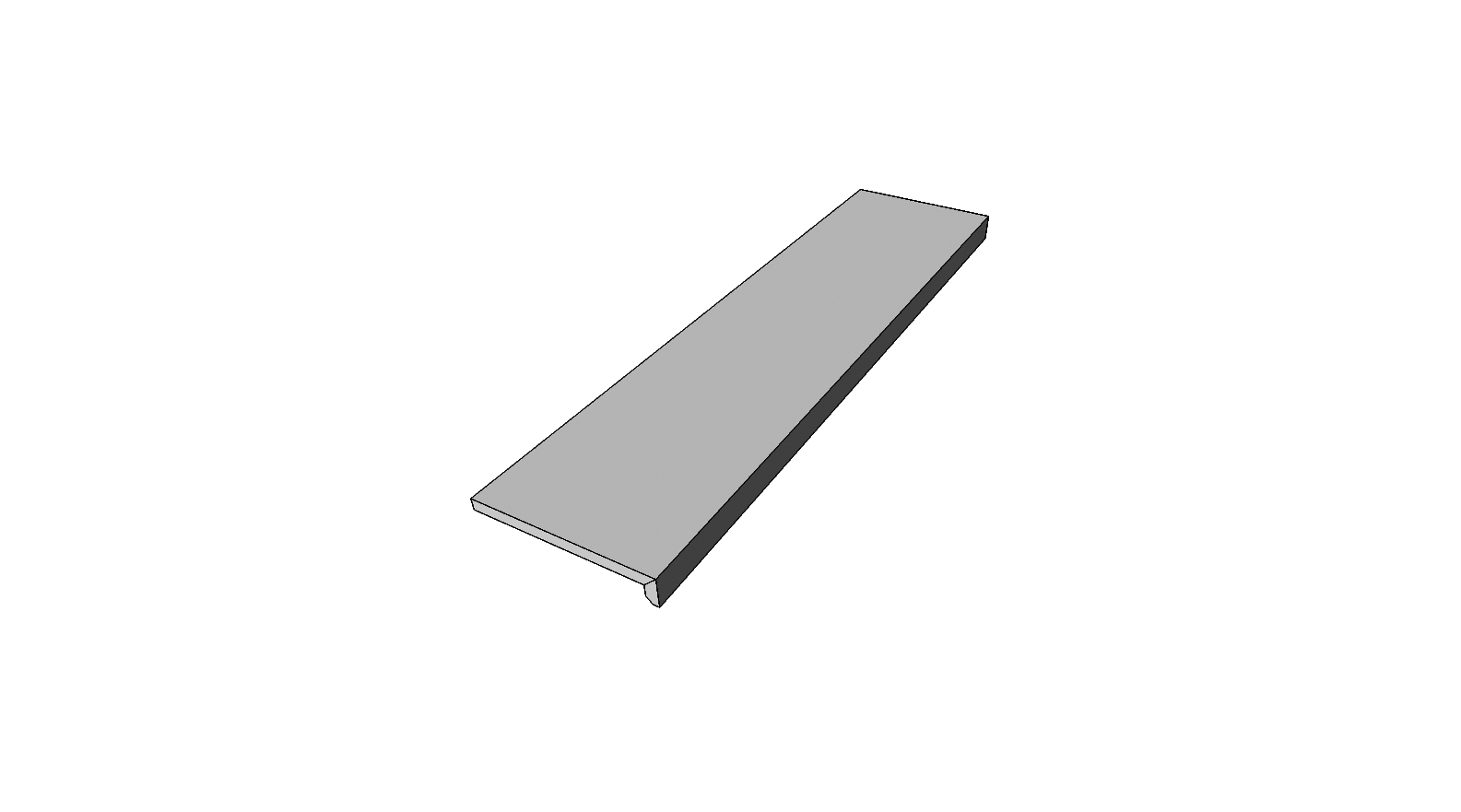

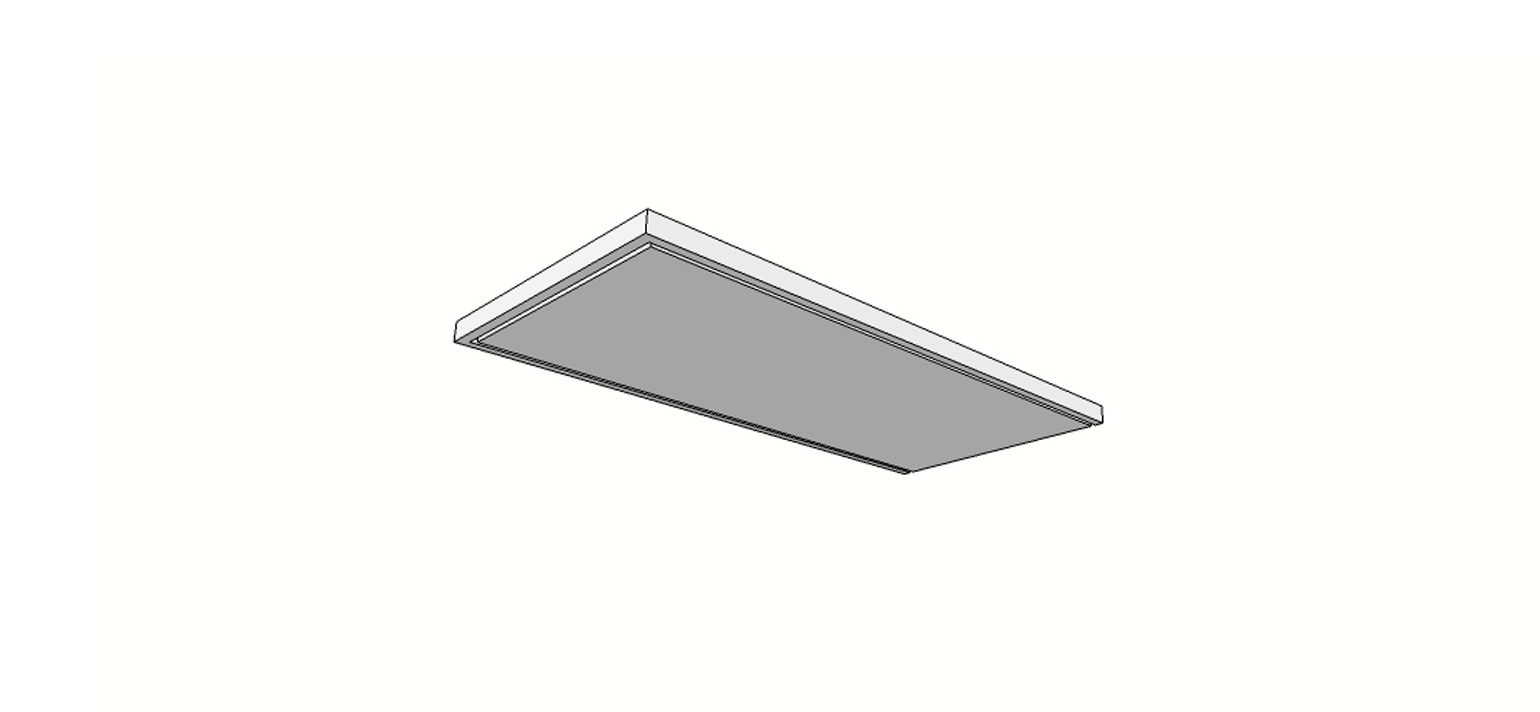

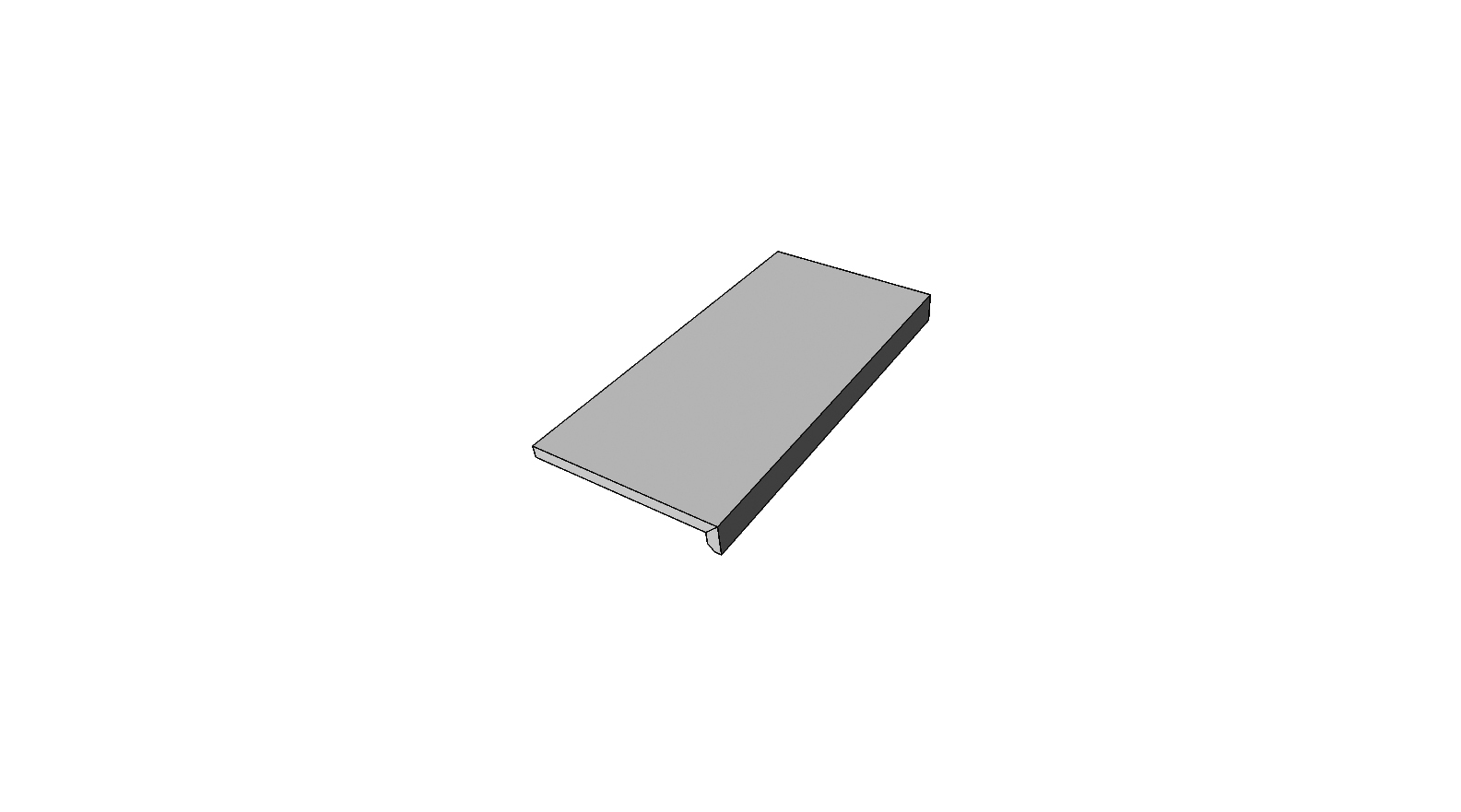

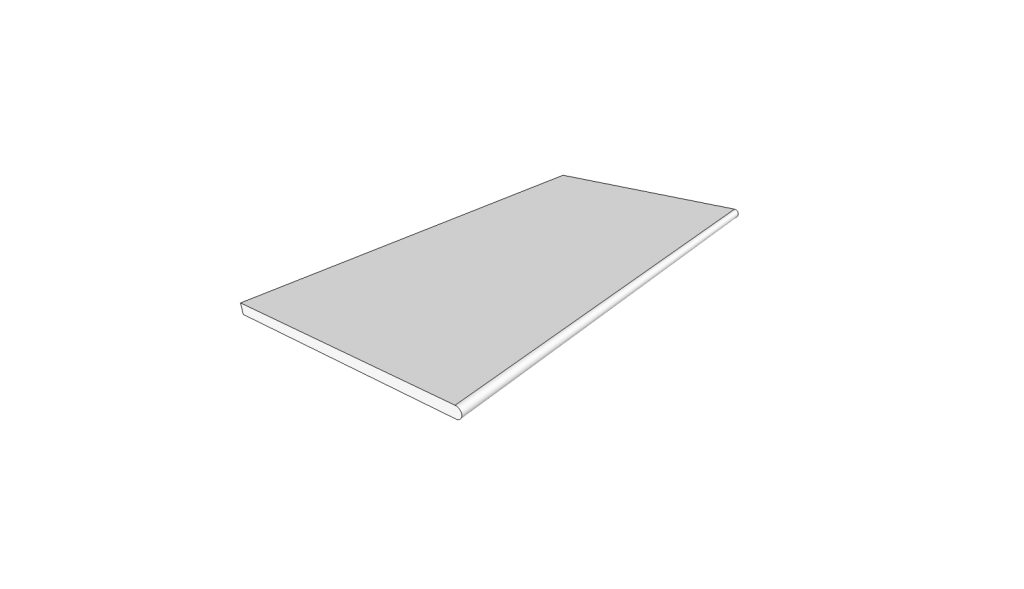

Trims

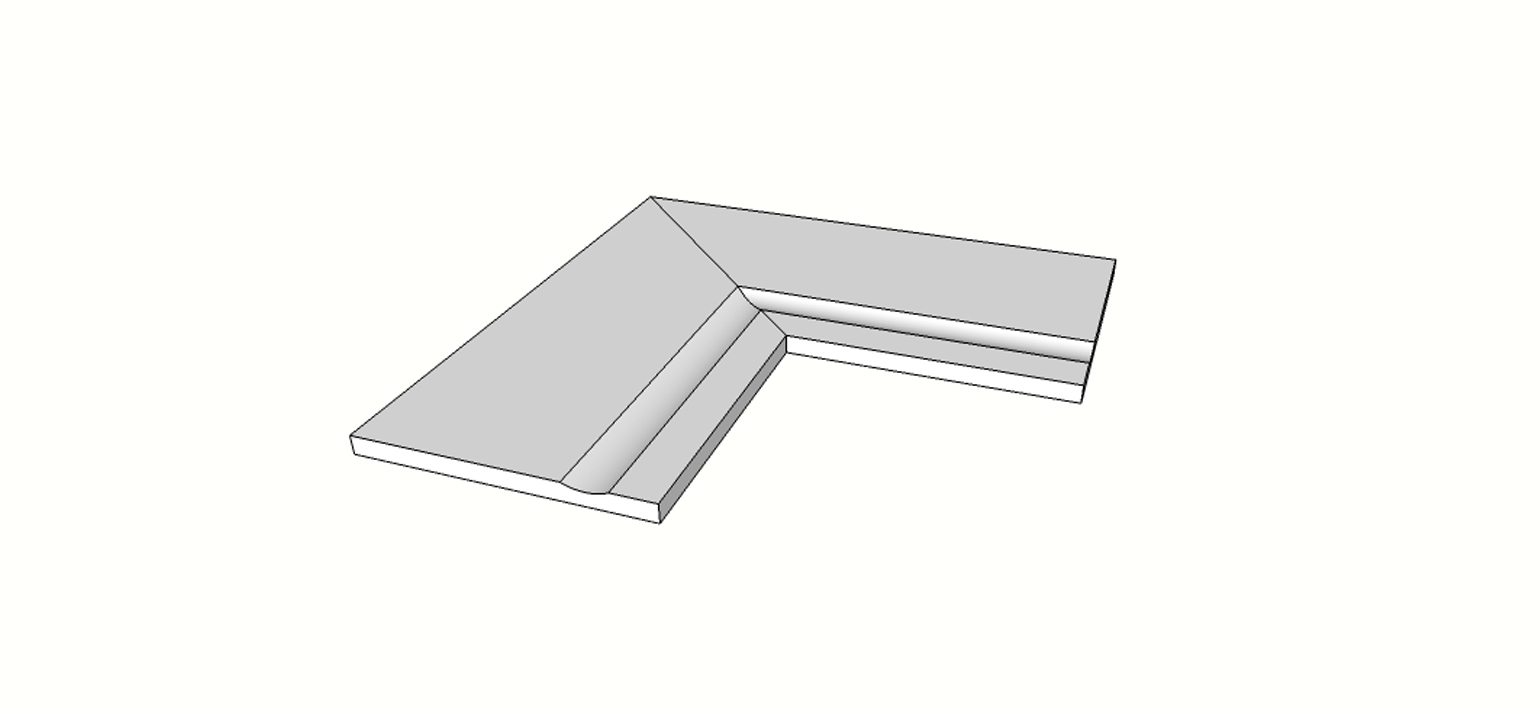

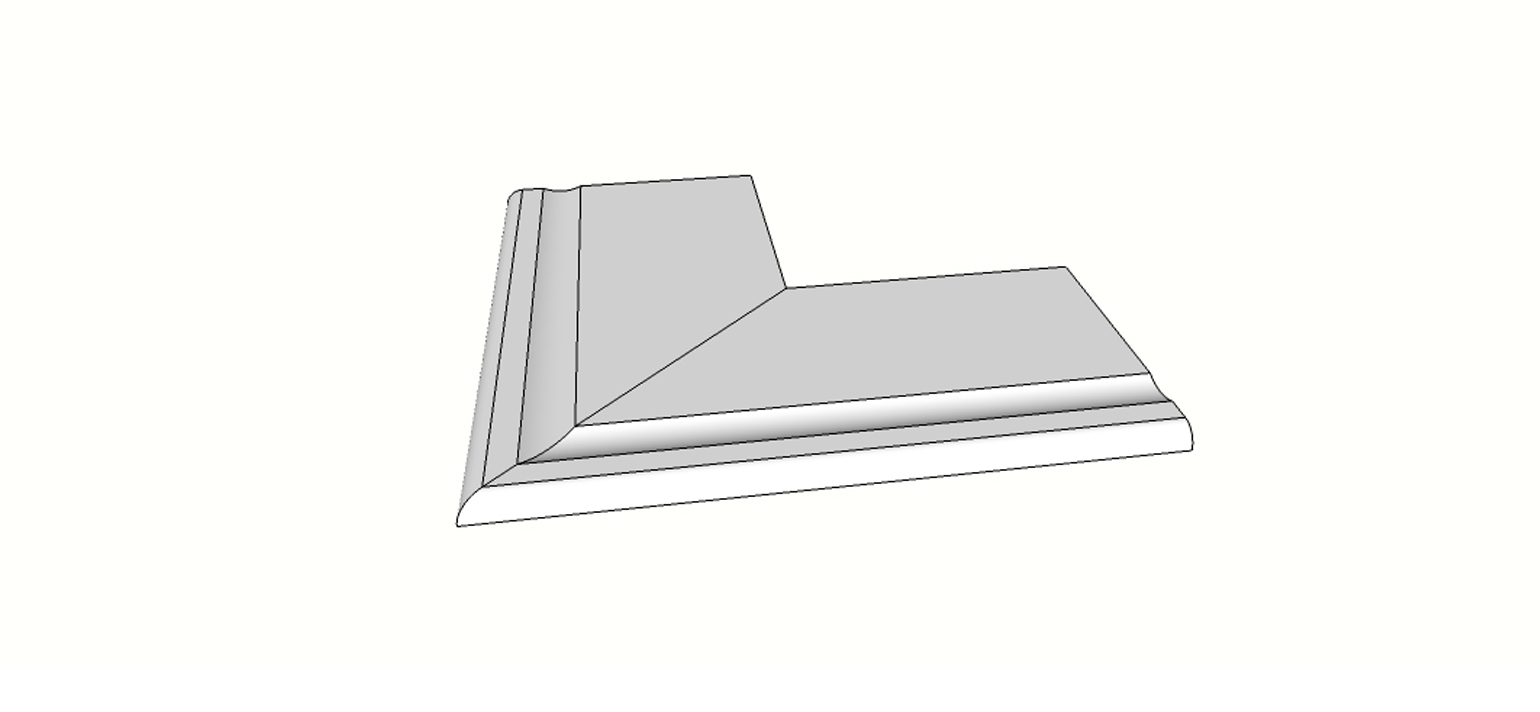

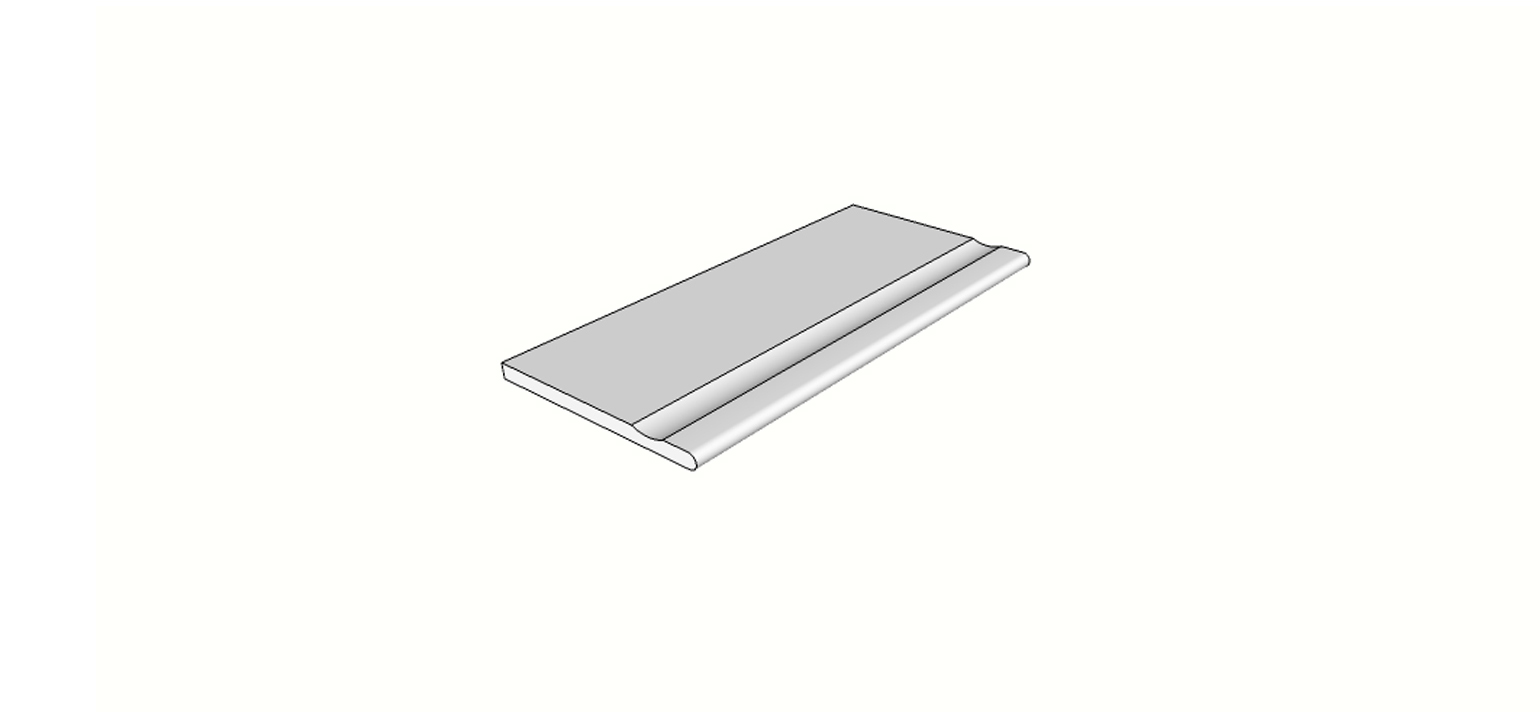

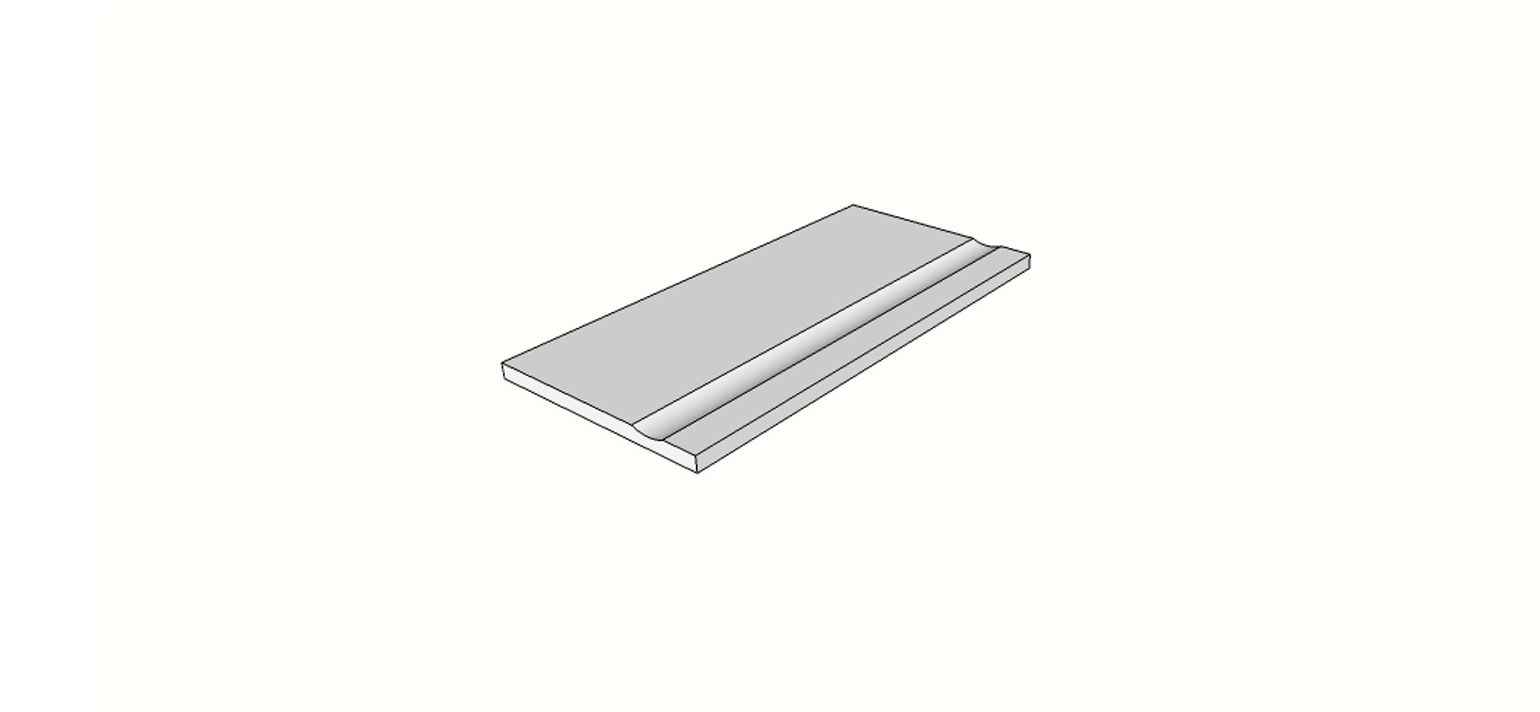

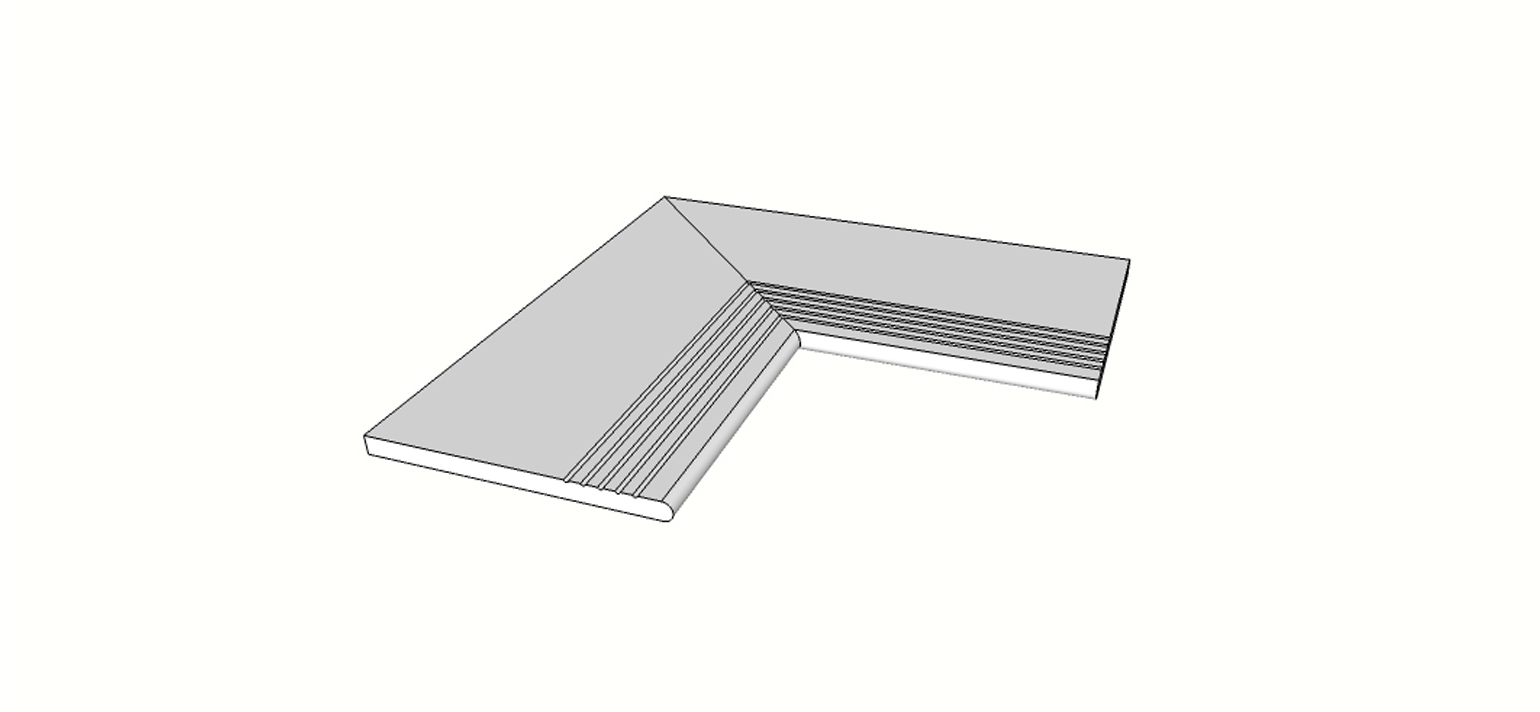

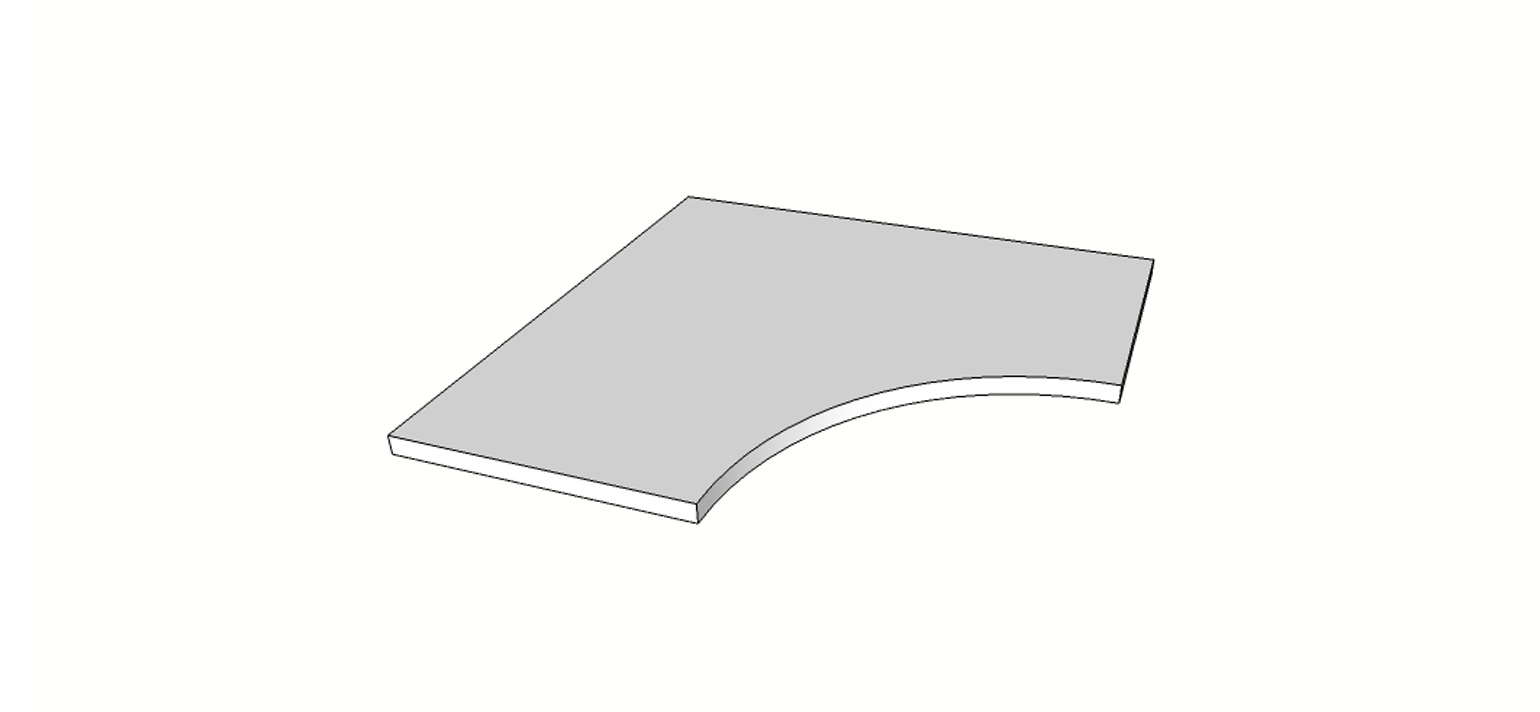

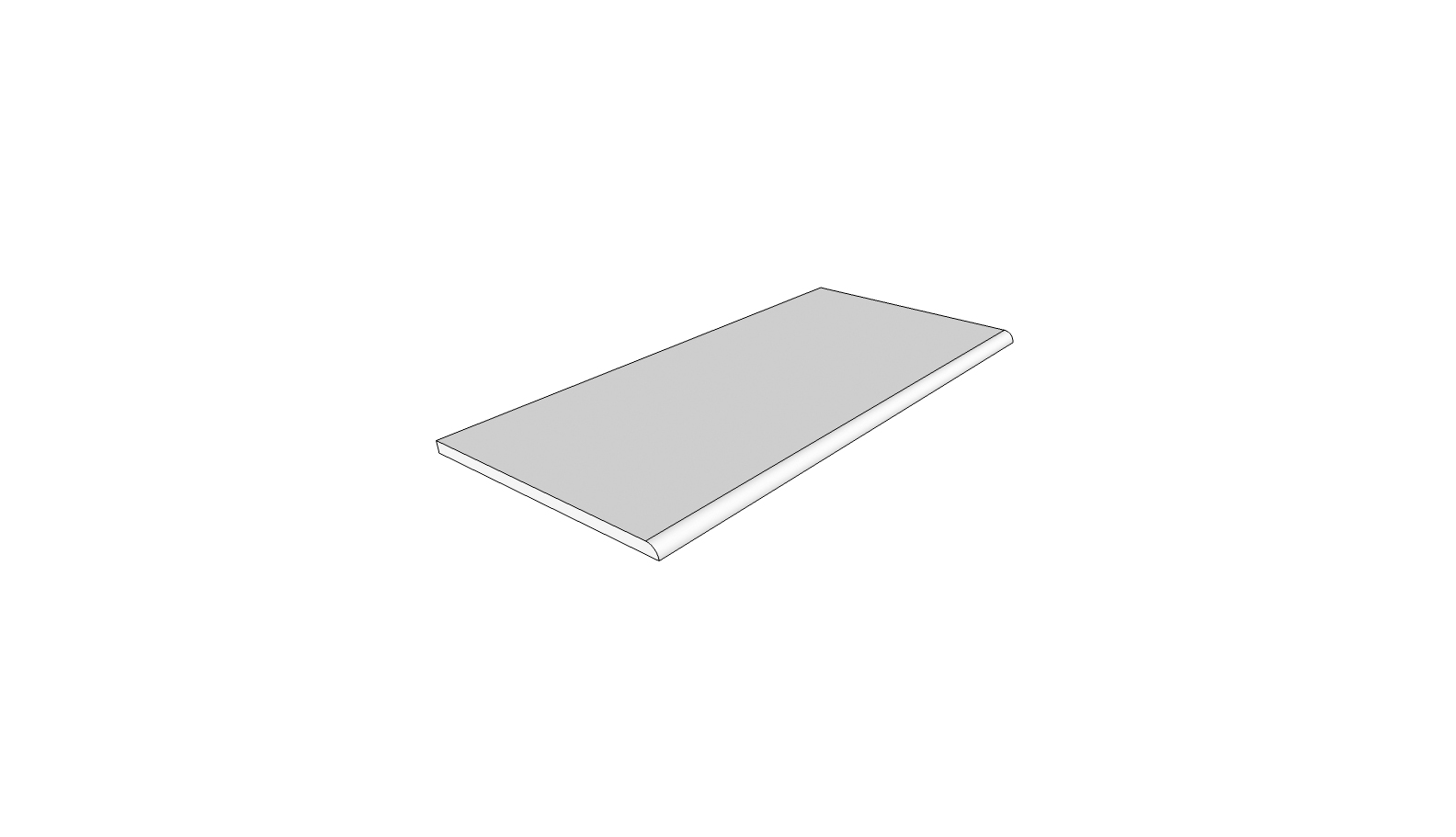

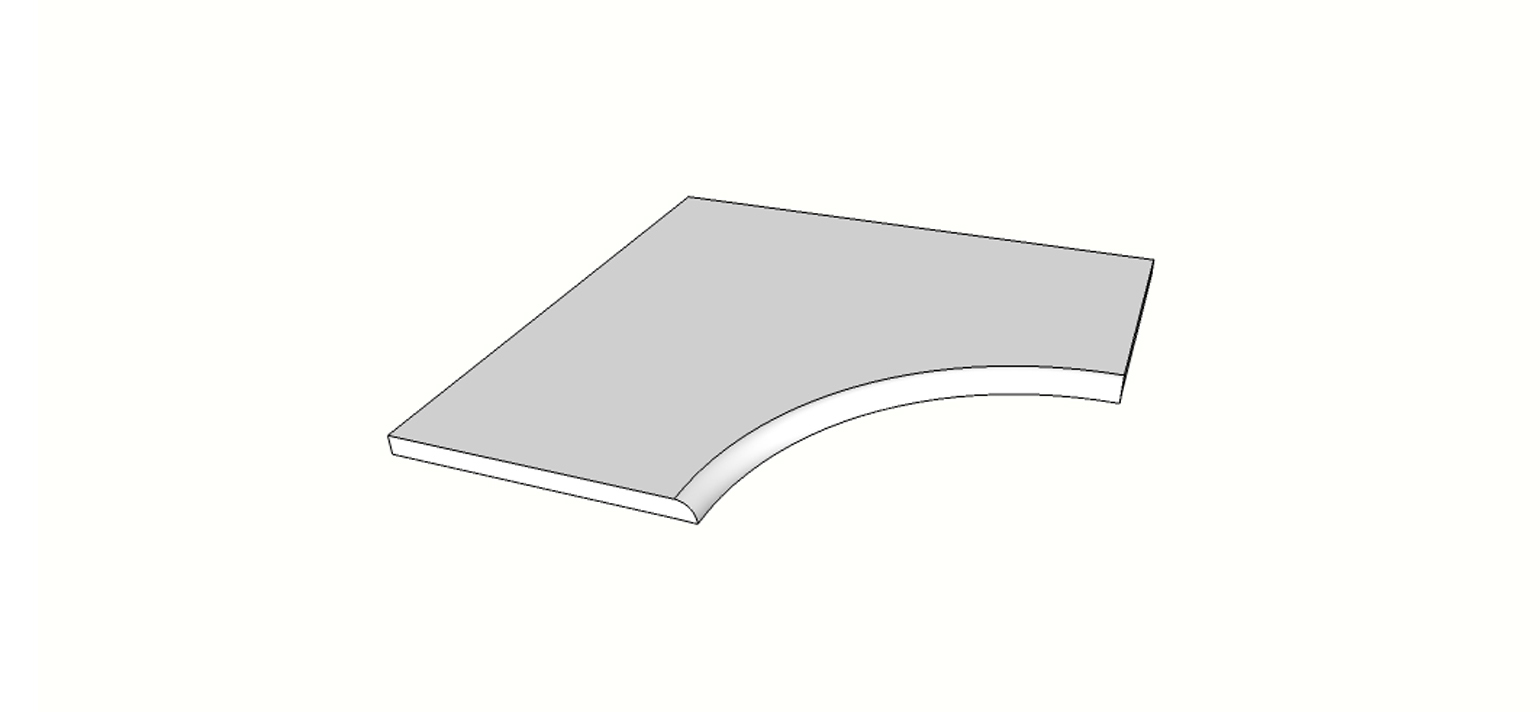

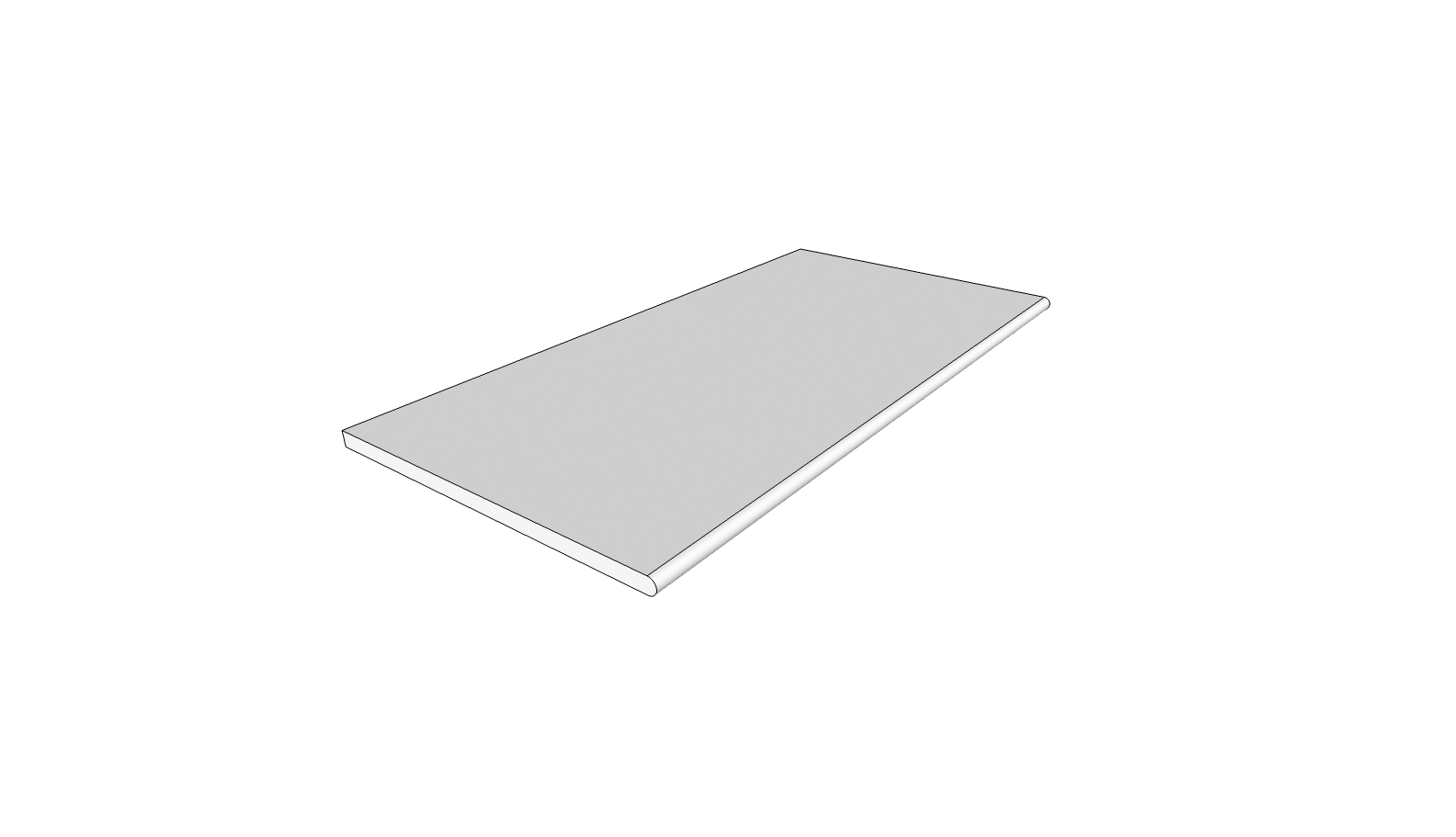

Accessories for swimming pools and gardens
