Novoceram Outdoor Plus

Installation using an adhesive technique

For installation using a traditional adhesive technique, Novoceram Outdoor Plus guarantees an excellent breakage load due to the premium thickness of single-piece slabs. This application represents the ideal solution for floors requiring high carriageable performance (paving driveways, ramps, garages, squares, sidewalks). To avoid detachment of the slab due to structural subsidence within the substrate, it is necessary to use a double-spreading method with grout lines of 5 mm minimum.

Video

For installation using a traditional adhesive technique, Novoceram Outdoor Plus guarantees an excellent breakage load due to the premium thickness of single-piece slabs. This application represents the ideal solution for floors requiring high carriageable performance (paving driveways, ramps, garages, squares, sidewalks). To avoid detachment of the slab due to structural subsidence within the substrate, it is necessary to use a double-spreading method with grout lines of 5 mm minimum.

Step by step

geo ivoire 60x60 outdoor plus adhesive technique
01

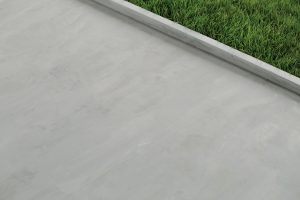

Cement footing

Construct a cement footing
geo ivoire 60x60 outdoor plus adhesive technique
02

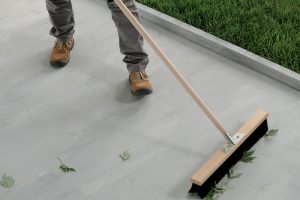

Cleaning

Carefully clean the footing before laying
geo ivoire 60x60 outdoor plus adhesive technique
03

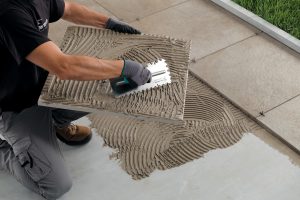

Spreading

Spread the adhesive (type C2) evenly. To avoid the formation of air pockets between the slab and the support, Novoceram advises using the double spreading method
geo ivoire 60x60 outdoor plus adhesive technique
04

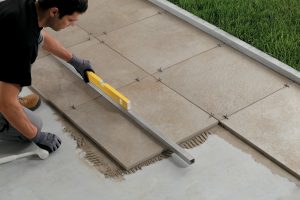

Planarity

Check the planarity during laying
geo ivoire 60x60 outdoor plus adhesive technique
05

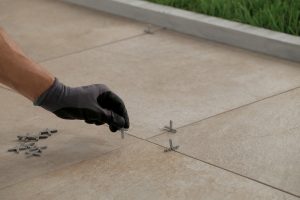

Slabs

Lay the slabs outdoors with a grout line of at least 5 mm
geo ivoire 60x60 outdoor plus adhesive technique
06

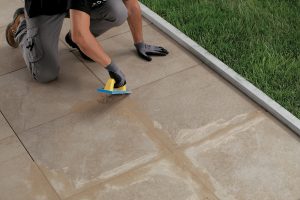

Grouting

After laying, set the slabs with appropriate grouting material
geo ivoire 60x60 outdoor plus adhesive technique
07

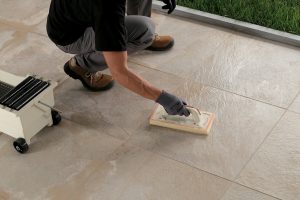

Cleaning

A thorough cleaning is essential to ensure ease of cleaning and resistance of the slabs to stains
geo ivoire 60x60 outdoor plus adhesive technique
08

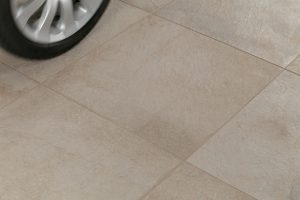

Carriageable

Novoceram Outdoor Plus slabs with adhesive installation are carriageable ( light vehicle traffic)
Warning The recommendations for installation are provided as examples of the type of chosen application: Novoceram recommends to refer to the applicable regulations in your country to carry out a state-of-the-art installation

Cutting Tips

Video

Check out the video for cut tips.
Water-cooled bench mounted power saw

Water-cooled bench mounted power saw

Continual toothed disc suitable for cutting tiles.
Angle grinder

Angle grinder

Continual toothed disc suitable for cutting tiles.
drilling

Drilling

Drilling with non-impact rotary drill with specialist drill bit.
