Novoceram Outdoor Plus

Laying on grass

To lay the paving, place the tiles in a « stepping stone » arrangement. It is important to estimate the number of stepping stones needed to complete the path, then arrange the tiles an equal distance apart.

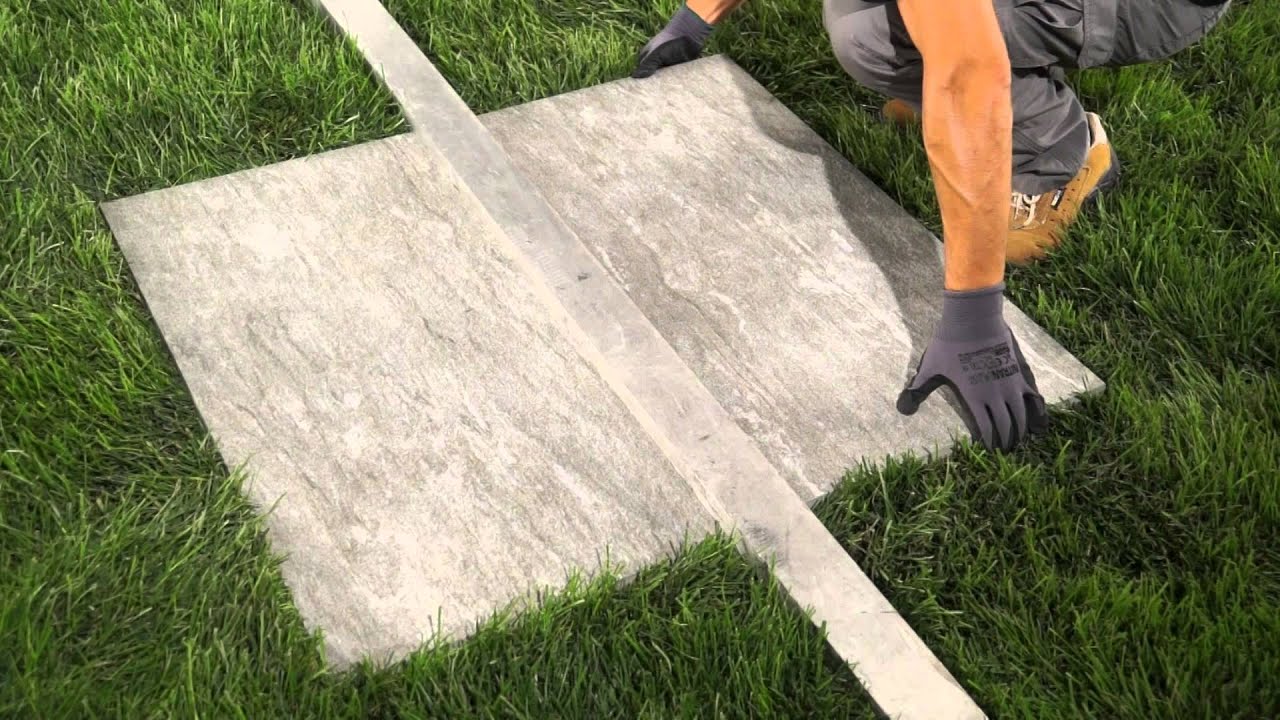

Video

For optimum stability, dig out to a depth of 5 to 6 cm and add a bed of fine gravel with a grain size of between 4 and 8 mm. Consolidate the substrate before laying the tiles. The tiles should remain below the level of the grass to avoid damaging the lawnmower when it passes.The laying can also be carried out on concrete rather than gravel.

Step by step

cast structure 45x90 outdoor plus laying on grass
01

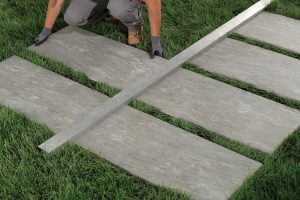

Position the slab

Position the Novoceram Outdoor Plus slabs according to your desired installation pattern
cast structure 45x90 outdoor plus laying on grass
02

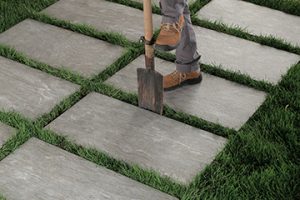

Mark out perimeter

Using a shovel and with the slab on the grass, mark out around the entire perimeter of the slab
cast structure 45x90 outdoor plus laying on grass
03

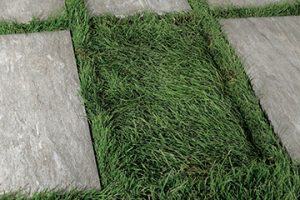

Remove slab

Remove the slab
cast structure 45x90 outdoor plus laying on grass
04

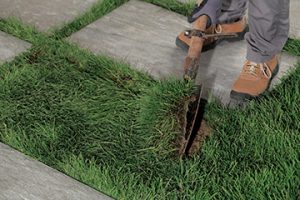

Dig

Dig 5-6 cm deep across the entire area you have just marked out
cast structure 45x90 outdoor plus laying on grass
05

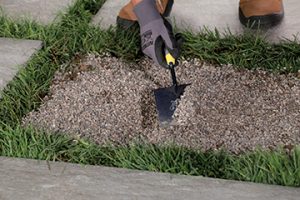

Fine gravel

Fill the hole excavated with fine gravel. Level the surface
cast structure 45x90 outdoor plus laying on grass
06

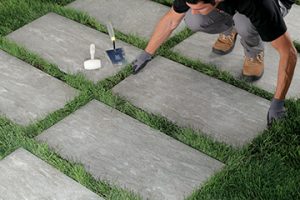

Set into position

Now set the slab into position
cast structure 45x90 outdoor plus laying on grass
07

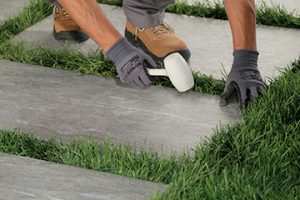

Ensure slab set correctly

Ensure slab set correctly by lightly beating it with a rubber hammering tool
08

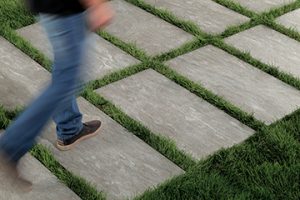

Ready

Novoceram Outdoor Plus slabs installed onto grass can be walked on immediately after laying
Warning .The recommendations for installation are provided as examples of the type of chosen application: Novoceram recommends to refer to the applicable regulations in your country to carry out a state-of-the-art installation.

Cutting Tips

Video

Check out the video for cut tips.
Water-cooled bench mounted power saw

Water-cooled bench mounted power saw

Continual toothed disc suitable for cutting tiles.
Angle grinder

Angle grinder

Continual toothed disc suitable for cutting tiles.
drilling

Drilling

Drilling with non-impact rotary drill with specialist drill bit.
