Novoceram Outdoor Plus

Raised installation

An extremely easy system to inspect that allows for the installation of a system of irrigation, pipes, cables and lighting below the floor. Slabs are repositionable to facilitate maintenance of the underlying items.

Video

The feet can be installed on either a rigid base (for example on slabs) or on gravel.

Step by step

azimut froid antiderapant 60x60 outdoor plus raised installation
01

Sealing

For installation on flat covering surfaces it is necessary to carry out a thorough sealing of the substrate
azimut froid antiderapant 60x60 outdoor plus raised installation
02

Cleaning

Before installation, carry out a thorough cleaning of the substrate
azimut froid antiderapant 60x60 outdoor plus raised installation
03

Place the supports

Place the supports on the substrate (we recommend a maximum height of 10 cm)
azimut froid antiderapant 60x60 outdoor plus raised installation
04

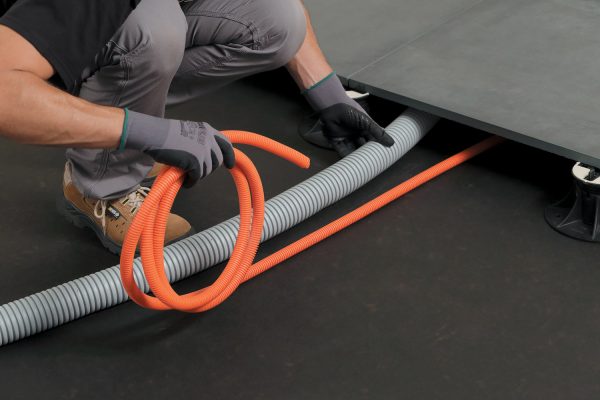

Cables and pipes

Position cables and pipes at this stage if required
azimut froid antiderapant 60x60 outdoor plus raised installation
05

Place on supports

Place the Novoceram Outdoor Plus slabs on the feet supports that have previously been installed
azimut froid antiderapant 60x60 outdoor plus raised installation
06

Planar surface

During the installation regularly check the planarity of the surface.
azimut froid antiderapant 60x60 outdoor plus raised installation
07

Adjusting key

Use the adjusting key to obtain a planar surface
azimut froid antiderapant 60x60 outdoor plus raised installation
08

Can be walked on immediately

Novoceram Outdoor Plus slabs installed onto feet can be walked on immediately after laying. Novoceram Outoor Plus supports have been tested to withstand loads of over 1 tonne

Supports for raised installation

fixed support

FIXED SUPPORT

Minimum height from slab: 12 mm. A 3 mm thick levelling disk is available to increase the thickness of one or more areas of the support. The base is perforated at the centre to improve adaptation to the laying surface. The supports can be easily broken into four parts according to the laying scheme and are provided with spacers to create joints between the tiles.

E434 - H 12 mm
E435 - H 15 mm
E436 - H 20 mm
E448 - DISQUE NIVELANT 3 mm

ADJUSTABLE SUPPORT

ADJUSTABLE SUPPORT

Fine height adjustment without having to remove the superimposed floor. To lay near corners or walls, break two or four of the support spacers. Near sharp edges, distance the supports from the wall.

E437 - H 25-40 mm
E438 - H 40-70 mm
E439 - H 60-100 mm

ADJUSTABLE SELF-LEVELLING SUPPORT

ADJUSTABLE SELF-LEVELLING SUPPORT

The self-levelling support can compensate for gradients of up to 5%. To lay near corners or walls, break two or four of the support spacers. Near sharp edges, distance the supports from the wall.

E442 - H 37,5-50 mm
E443 - H 50-75 mm
E444 - H 75-100 mm

Warning Novoceram recommends the use of clamps with an height of up to 10 cm. If a higher cant is required, Novoceram recommends gluing at the bottom of the slab a fiber glass mesh or a galvanised steel, with the aim of preventing the shear failure in the floor in case of slab breakage. Moreover, Novoceram recommends applying a central foot under each slab, so as to uniformly distribute stresses due to loads of various nature and trampling.

Technical features of supports

Supports made from 100% recyclable materials

Supports made from 100% recyclable materials

Resistant to acid and alkaline solutions

Resistant to acid and alkaline solutions

Resistant to atmospheric agents

Resistant to atmospheric agents

Resistant to temperatures of from -30°to +120

Resistant to temperatures of from -30°to +120°

Tested to withstand loads in excess of 1 tonne

Tested to withstand loads in excess of 1 tonne

Instructions for use of the supports

instructions for use of the supports

Screw

Screw the screw element on the base of the foot support to achieve the desired raise.
instructions for use of the supports

Place

Place the disc with the plastic spacers on top of the support by tightening slightly.
instructions for use of the supports

Adapt

If required, break the plastic spacers to adapt the supports to the needs of the installation.

Raised edge finishing

Clip bord vertical base

Clip bord vertical base

Clip bord vertical tête

Clip bord vertical tête

Edge of wall finishing

Designed to prevent contact between the slabs and the perimeter wall when laying floating floors, the clip edging, elegant and steady, manufactured entirely of stainless steel, is equipped with a shock absorber for longitudinal and transverse expansions and a balance anchor to allow perimeter linear movement

Edge of wall finishing

Clip edge

Edge of wall finishing

Clip edge

Adjustment and fixing accessories

Clef de réglage

Clef de réglage

Pince de levage

Pince de levage

Tipps

60X60 cm straightforward installation

60x60 cm straightforward installation

60X60 cm staggered installation

60x60 cm staggered installation

45X90 cm straightforward installation

45x90 cm straightforward installation

45x90 cm staggered installation

45x90 cm staggered installation

30x120 cm straightforward installation

30x120 cm straightforward installation

30x120 cm staggered installation

30x120 cm staggered installation

Proper drainage is a key aspect in any architectural project. You must therefore take into account some aspects in advance to avoid water stagnation and related issues that may negatively affect the structure.
Novoceram Outdoor Plus offers all the advantages of top quality porcelain tiles: it is frost-proof and does not absorb water.
In order to avoid problems related to water stagnation and to achieve optimal drainage of the flooring, it is advisable to adopt certain measures in the design phase:
1.Prepare the appropriate transverse or longitudinal gradients (1.5% – 2%) to be created during the levelling phase or during compacting.
2. Add an additional layer made of special draining materials. Novoceram Outdoor Plus ensures the advantages so typical of porcelain tiles: they are frost resistant and have a water absorption of practically zero. This can, irrespective of the installation method, result in standing water collecting on the extremity of the slabs. We recommend joints of at least 5mm.
In the case of terraced roofs located above inhabited areas or similar, it is always necessary to provide a complete system of layers for the realization of a flat roof with the correct slope, in accordance with current building rules and regulations.

Video

Check out the video for cut tips.
Water-cooled bench mounted power saw

Water-cooled bench mounted power saw

Continual toothed disc suitable for cutting tiles.
Angle grinder

Angle grinder

Continual toothed disc suitable for cutting tiles.
drilling

Drilling

Drilling with non-impact rotary drill with specialist drill bit.

Warning

If the application of the 20 mm slabs foresees the ceramic product used in structural installations, the project engineer and/or customer must carefully assess the project requirements with regard to the technical specifications of the slabs. To prevent the risk of damage or injury, the manufacturer recommends:

With regard to a raised floor installation a ceramic slab may fracture on impact if a heavy object falls on it from any significant height. Therefore the manufacturer recommends to check the specific intended use before starting the installation and to follow table for raised installation provided below. In certain conditions, reinforcing must be applied on the back of the slabs (galvanized steel sheet) supplied and applied by the manufacturer.

With reference to any dry installation system of flooring above the ground level, the manufacturer recommends to comply with local regulations and conditions of use with regard to wind-load, loadbearing, seismic events, etc.
Failure to comply with these recommendations may lead to improper use of the product and could cause serious damage or injury.

 FOR ALL COUNTRIESFOR ALL COUNTRIES EXCEPT USA, CANADA, OCEANIA
SIZEUP TO 2 cmFROM 2 cm TO 10 cmFROM 10 cm TO 30 cm
Posa sopraelevata 60x6060×60 cm4 supports per slab
(3,4 pcs/m²)
4 supports per slab
(3,4 pcs/m²)
4 supports per slab
(3,4 pcs/m²)
+ galvanized steel sheet
Posa sopraelevata 45x9045×90 cm6 supports per slab
(6 pcs/m²)
6 supports per slab
(6 pcs/m²)
+ galvanized steel sheet
6 supports per slab
(6 pcs/m²)
+ galvanized steel sheet
Posa sopraelevata 30x12030×120 cm (6 supports per slab)6 supports per slab
(7 pcs/m²)
6 supports per slab
(7 pcs/m²)
+ galvanized steel sheet
6 supports per slab
(7 pcs/m²)
+ galvanized steel sheet

Note: For any detail and technical specification concerning the galvanized steel sheet, please contact Novoceram. Novoceram is responsible only if it supplies the whole system (tile + galvanized sheet). Novoceram cannot be held responsible for reinforcing systems that has not supplied. In case of breakage, tile must be replaced immediately.

Drainage

In order to achieve a dreinage of the floor plan, it is necessary to create the adequate cross and longitudinal inclinations. Even putting aside the distinctive advantages of using porcelain stoneware, we remind you that Novoceram Outdoor Plus has awater absorption rate that is almost zero, and this characteristic maket it frost proof. This can lead to water deposit in certain specific areas, in particular on the edge of the slab, irrespective of a state-of-the-art installation of the material. Novoceram recommend to allow for at least 5mm grout.
